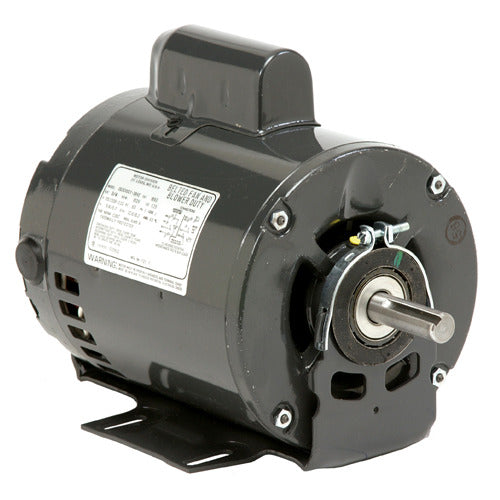

U.S. Motors D12CPA3PH9 General Purpose Single Phase ODP Cradle Motor

Product Description

The U.S. Motors D12CPA3PH9 is a general purpose single phase motor designed for various applications. This ODP cradle motor provides reliable performance at half a horsepower and operates at a speed of twelve hundred RPM. It is suitable for tasks such as running pumps, air compressors, and conveyors.

• Single Phase Design
• Half Horsepower Capacity
• ODP Enclosure Type

Product Highlights

This motor is built for continuous duty with a service factor of 1.25. It can handle demanding tasks due to its efficient design and automatic thermal protection.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D12CPA3PH9

Technical Specifications

• Phase: Single Phase
• Service Factor: 1.25
• C Dimension: 12.3 in
• Motor Application: General Purpose
• Poles: 6
• Frequency: 60 Hz
• Full Load Efficiency: 76.2%
• Duty: Continuous Duty
• Voltage Rating: 115/230
• Mounting: Cradle
• RPM: 1200
• Thermal Protection: Automatic Reset
• Enclosure Designation: ODP - Open Drip Proof
• Full Load RPM: 1140
• Frame: 56H
• Insulation: Class B
• Full Load Amps: 4.8/2.4
• Weight: 35.9 LB
• UPC: 786382110222
