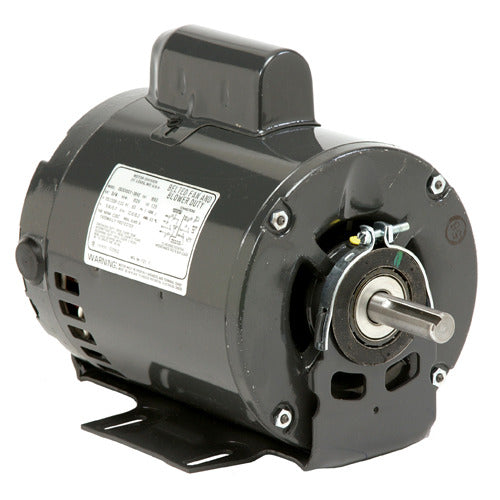

US-Nidec D12CP3PH9 General Purpose Motor 1/2 HP 1140 RPM 115/230V 56H

Product Description

The US-Nidec D12CP3PH9 is a general-purpose motor designed for various applications. This motor offers a reliable and efficient solution for many settings.

• 1/2 HP power
• 115/230V voltage
• 1140 RPM speed

Product Highlights

This motor is suitable for general-purpose use, featuring a capacitor start and capacitor run mechanism. It is constructed from rolled steel and has a single-phase open drip-proof (ODP) enclosure. The motor operates at a speed of 1140 RPM and runs on 115/230V.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: D12CP3PH9
• Type: General Purpose Motor

Technical Specifications

• Electrical Type: Capacitor Start / Capacitor Run
• HP: 1/2
• KW: 0.4
• Stack: 2.75
• RPM: 1140
• Frame: 56H
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 115/230
• Rotation: Reverse
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
• Mounting: Cradle
• Amperage: 4.8/2.4
• Shaft Type: Single
• Cap Run MFD: 40.00 MFD
• Cap Run Voltage: 370 V
• Cap Start MFD: 495.00 MFD
• Efficiency: 76.20%
• Frequency: 60 Hz
• Insulation Class: B
• Locked Rotor Amps: 39.19
• Locked Rotor Torque: 154.60 oz/ft
• Poles: 6
• Service Factor: 1.25
• Service Factor Amperage: 5.5/2.8
• Country of Origin: Mexico
