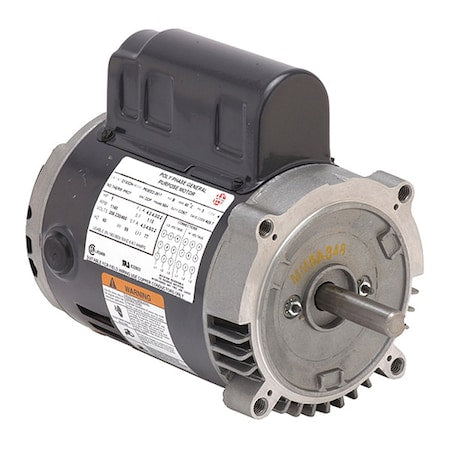

U.S. Motors D12ARM2N Instant Reverse Motor 1/2hp Phase Single

Product Description

The U.S. Motors D12ARM2N is a 1/2 horsepower instant reverse motor. This single-phase motor is designed with a permanent split capacitor and operates at a nameplate RPM of 1,800. The motor runs on 115V AC and has a frame size of 56. It features both clockwise and counterclockwise shaft rotation and manual thermal protection.

• 1/2 horsepower instant reverse motor
• Single-phase with permanent split capacitor
• 115V AC operating voltage

Product Highlights

Ideal for garage and gate openers. Reliable and efficient motor design.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D12ARM2N
• UPC: 786382057107

Technical Specifications

• HP: 1/2
• Hz: 60
• Item: Instant Reverse Motor
• Frame: 56
• Phase: Single
• Voltage: 115V AC
• RPM Range: 1,601-1,700
• Standards: CSA Certified, UL Recognized
• Duty Cycle: Intermittent
• Ins. Class: B
• Shaft Dia.: 5/8 inches
• Motor Design: Permanent Split Capacitor
• Shaft Length: 1 7/8 inches
• Nameplate RPM: 1,800
• No. of Speeds: 1
• Full Load Amps: 5.0
• Motor Bearings: Ball
• Number of Wires: 0
• Motor Application: Garage/Gate Opener
• Max. Ambient Temp.: 40 Degrees C
• Motor Shaft Design: Keyed
• Ambient Temperature: 40 Degrees C
• Motor Mounting Type: Rigid Base
• Motor Frame Material: Steel
• Motor Service Factor: 1
• Motor Shaft Rotation: CCW, CW
• Motor Sub Application: Garage/Gate Opener
• Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
• Motor Enclosure Design: Open Dripproof
• Motor Mounting Position: All Angle
• Motor Thermal Protection: Manual
• Country of Origin (subject to change): Mexico
