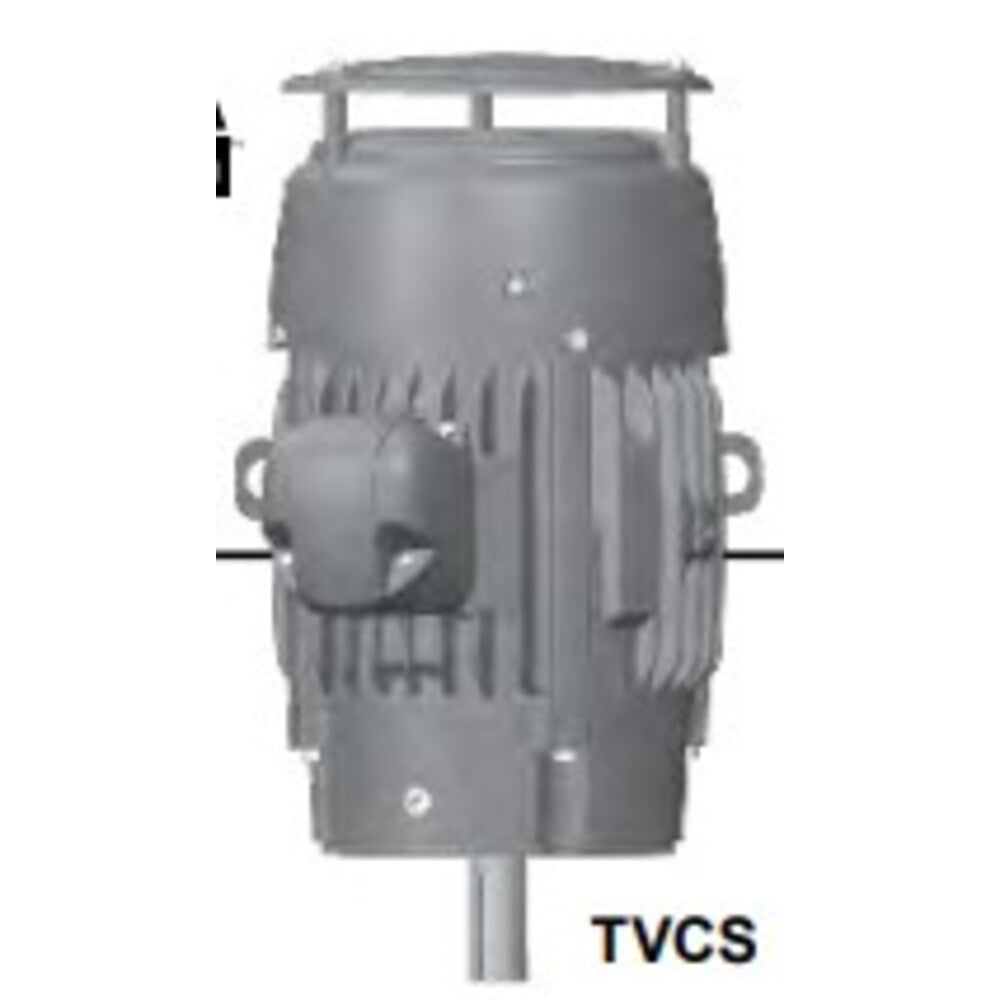

US-Nidec CNT10P2DE Vertical Solid Shaft Motor 10 HP 7.5 KW 1760 RPM 215HP TEFC

Product Description

The US-Nidec CNT10P2DE Vertical Solid Shaft Motor is a high-performance motor designed for various applications. With a power rating of 10 HP and 7.5 KW, it operates at 1760 RPM and features a 215HP frame. The motor is enclosed in a totally enclosed fan-cooled (TEFC) system and is suitable for three-phase operations with a voltage range of 208-230/460. The shaft type is single, and the motor is constructed from durable cast iron.

• 10 HP and 7.5 KW
• 1760 RPM
• 208-230/460 Voltage Range

Product Highlights

The US-Nidec CNT10P2DE motor offers efficient and reliable performance for various industrial applications. Its cast iron construction ensures longevity and durability. The motor's ball bearings ensure smooth operation and long-term reliability.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: CNT10P2DE

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 10
• KW: 7.5
• RPM: 1760
• Frame: 215HP
• Enclosure: TEFC
• Phase: Three
• Voltage: 208-230/460
• Rotation: DS
• Overload Protector: None
• Material: Cast Iron
• Bearings Type: Ball / Ball
• Bearings Size: 6208-J/C3 / 6309-J/C3
• Mounting: Vertical
• Amperage: 26.5-23.9/12.0
• Shaft Type: Single
• Assembly: NA
• Frequency: 50/60 HZ
• Insulation Class: F
• Efficiency: 91.70%
• Locked Rotor Amps: 80
• Locked Rotor Torque: 232.00% FLT
• Service Factor: 1.15
• Service Factor Amperage Primary: 31-27.5/13.7
• Ambient Temperature: 40 degrees C
• Breakdown Torque: 297.00% FLT
