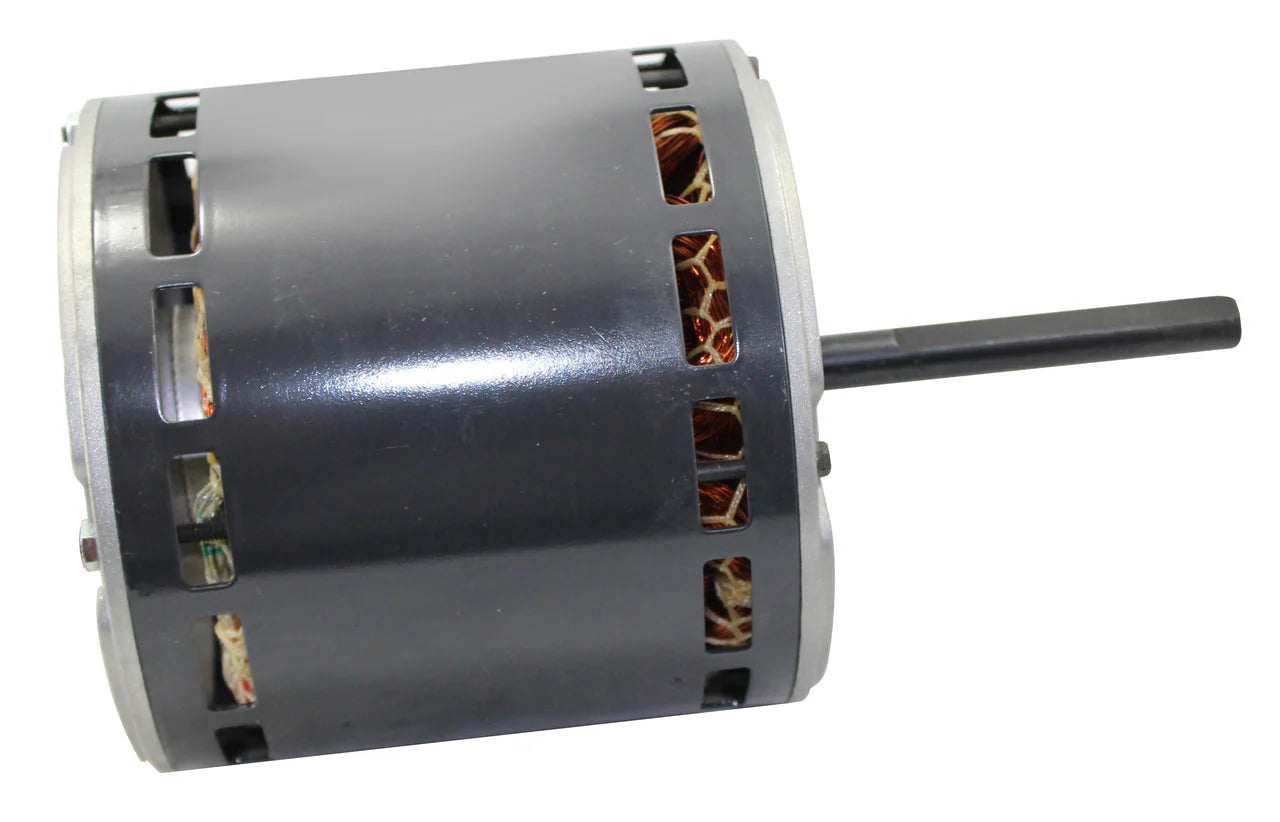

U.S. Motors CA3415 Motor 3/4 HP OEM Replacement Brand Carrier

Product Description

The U.S. Motors CA3415 is a 3/4 horsepower electric motor designed for OEM replacements, particularly suitable for Carrier brand applications. This motor operates at a voltage of one hundred fifteen volts and is compatible with sixty Hertz systems. The frame size is forty-eight Y, making it a standard choice for HVAC systems.

• Power: 3/4 HP
• Speed: 1075 RPM
• Application: Fan Coil Motor

Product Highlights

This motor is ideal for numerous HVAC applications, ensuring efficiency and durability with a permanent split capacitor design.

Product Information

Standard Information

• Item: Motor
• OEM Replacement Brand: Carrier

Technical Specifications

• Voltage: 115V
• Frequency: 60 Hz
• Frame: 48Y
• Phase: 1
• Nameplate RPM: 1075 RPM
• Full Load Amps: 10.7 A
• Motor Application: OEM Replacement
• Capacitor Required: Included
• Motor Shaft Rotation: Counterclockwise Lead End
• Motor Enclosure Design: Totally Enclosed Air-Over
• Manufacturers Warranty Length: 1 yr.
• Country of Origin: Mexico
