Product Description

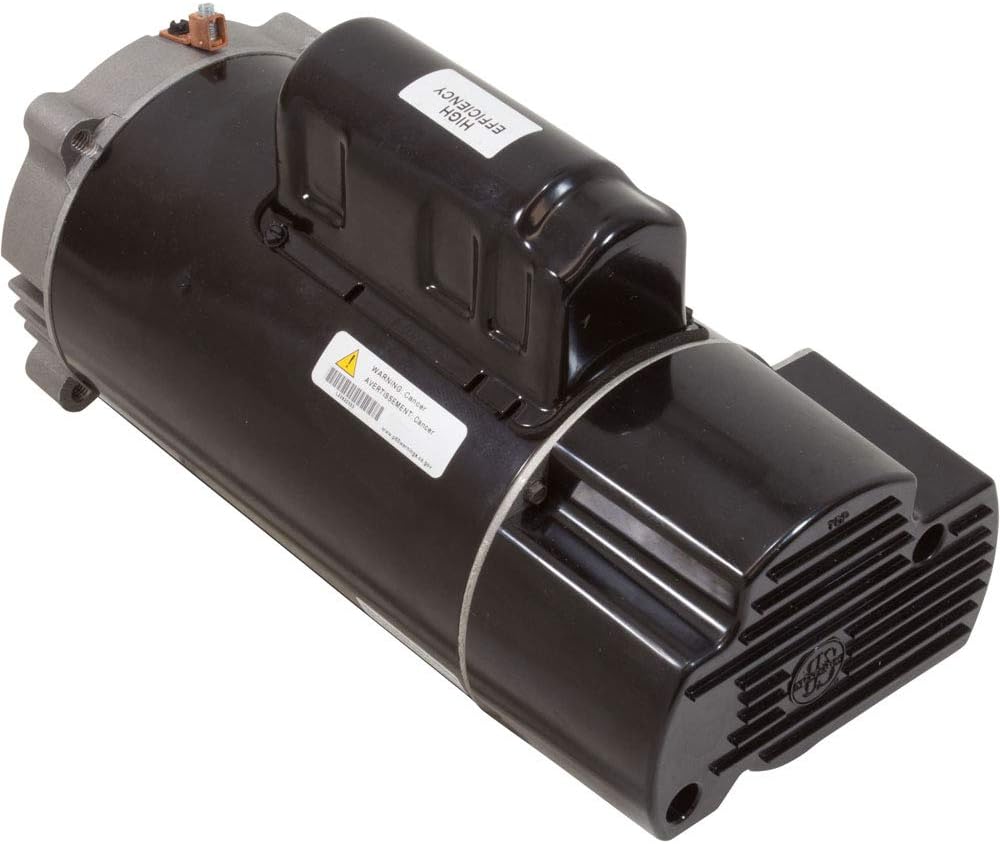

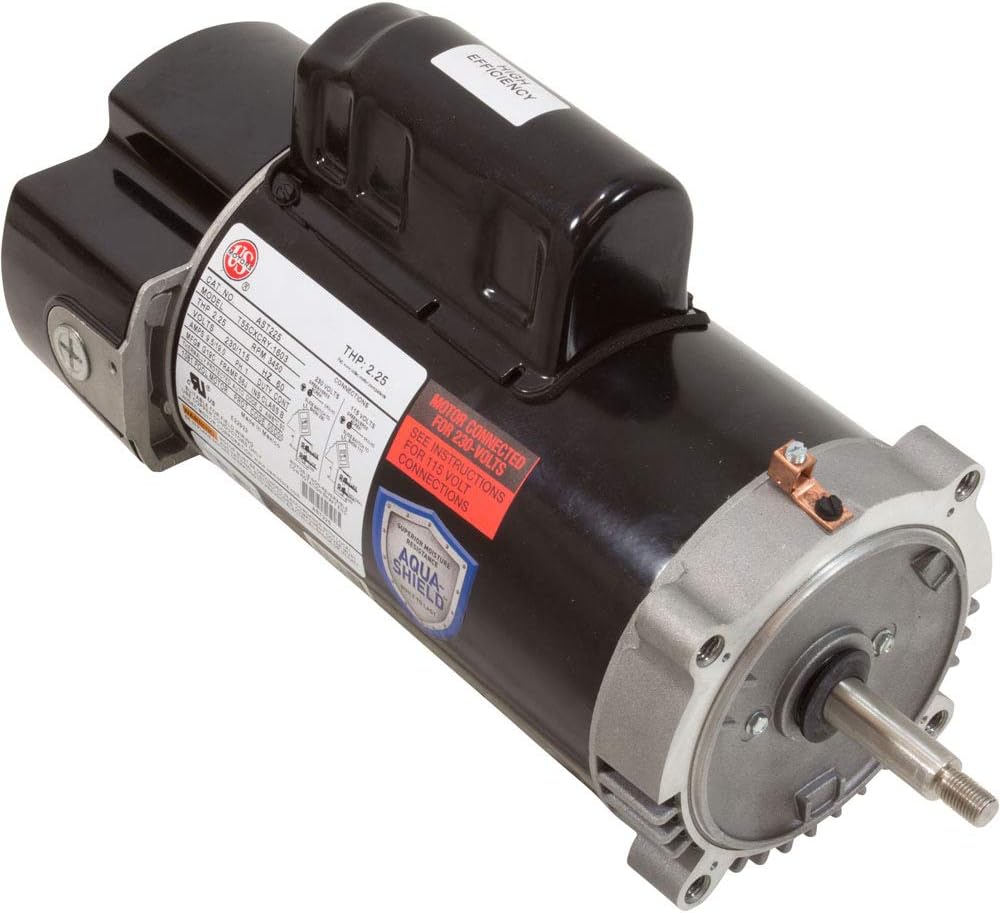

The U.S. Motors AST225 is a 56J C-Flange Single Speed 2.25HP Up-Rated Pool and Spa Motor manufactured by Nidec Motor Corp. Ideal for pool and spa applications, this motor provides reliable and efficient performance.
- Standard efficient pool pump motor
- 2.25 THP
- 3450 RPM
Product Highlights
This motor features a voltage change device for dual voltage applications, easy access to the shaft, and an angled terminal board for improved connections. It is equipped with additional space in the back end for secure connections and a switch design that protects against corrosion and external damage.
Product Information
Standard Information
-
Brand: U.S. Motors
-
MPN: AST225
Technical Specifications
-
Speed: 3450 RPM
-
Horsepower: 2.25 HP
-
Voltage: 115V-230V
-
Frame: 56J
-
Frequency: 60 Hz
-
Amps: 9.5/19.0
-
Weight: 27 pounds
-
Dimensions: 18.5 x 10.5 x 10.4 inches
