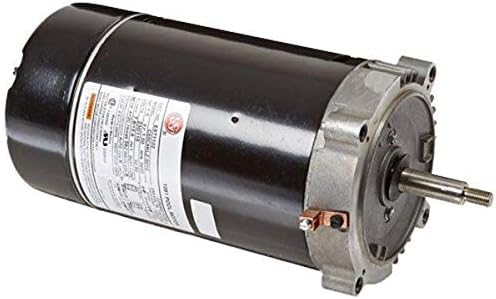

US Motors AST095 Replacement Nidec AST095 0.95 Horsepower 56J C-Flange Swimming Pool Pump Motor

Product Description

The US Motors AST095 is a reliable replacement for pool pump motors, specifically designed to provide efficient operation in various pool and spa applications. This motor has a total horsepower rating of 0.95 and operates on both 115 and 230 volts, making it versatile for different setups.

• Replacement for 3/4 HP up-rated or 1/2 HP full-rated motors
• Standard 56J-frame with a C-Flange design
• Compatible with various pool pump brands including American Products and Hayward

Product Highlights

The AST095 motor features an internal bearing cover to protect against moisture and includes a dual voltage change device for easy switching. Its design includes angled terminal boards for improved access and connections.

Product Information

Standard Information

• Manufacturer: US Motors
• Model Number: AST095

Technical Specifications

• Horsepower: 0.95 hp
• Voltage: 115/230 V
• Dimensions: 18.5 x 10.5 x 10.5 inches
• Weight: 18.4 lbs
• Frame Size: 56J
• RPM: 3450
• Amperage: 5.5/11.0
