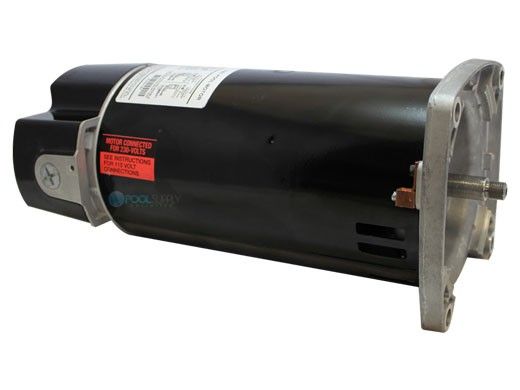

US Motors ASQ260 Pool and Spa Motor 2.0hp 230v 1-Spd 48Yfr SQFL

Product Description

The US Motors ASQ260 Pool and Spa Motor is a reliable and efficient motor designed for various pool and spa applications. Manufactured by Nidec Motor Corp/US Motors, this motor offers 2.0 horsepower and operates at 230 volts. It features a single-speed function and a 48Y frame size with a square flange mounting.

• 2.0 horsepower motor
• Single-speed operation
• Square flange mounting

Product Highlights

The ASQ260 motor is known for its durability and ease of installation. It comes with a thermally protected design and sealed ball bearings, ensuring longevity and smooth operation. The motor is ideal for replacing worn-out motors in pool and spa systems.

Product Information

Standard Information

• Manufacturer: Nidec Motor Corp/US Motors
• Model: ASQ260

Technical Specifications

• Horsepower: 2.0 hp
• Voltage: 230 V
• Frame Size: 48Y
• Enclosure: Open Drip Proof
• Amperage: 11.2 A
• Speed: Single
• Rotation: Counter Clockwise Shaft End
• Shaft Type: Threaded
• Material: Rolled Steel
• Mounting: Square Flange
• Bearings Type: Sealed Ball Bearings
• Cap Run MFD: 50.00 MFD
• Cap Run Voltage: 370 V
