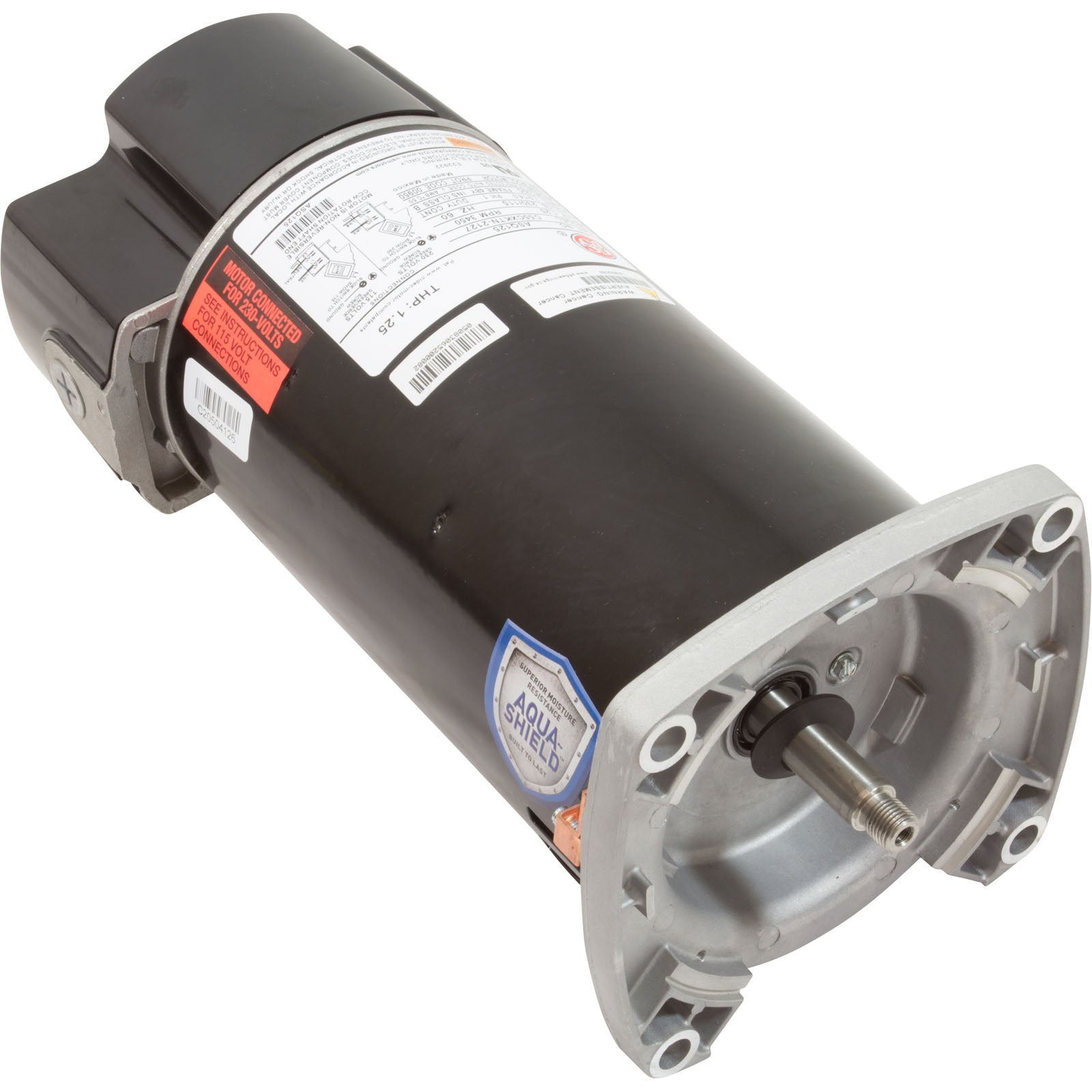

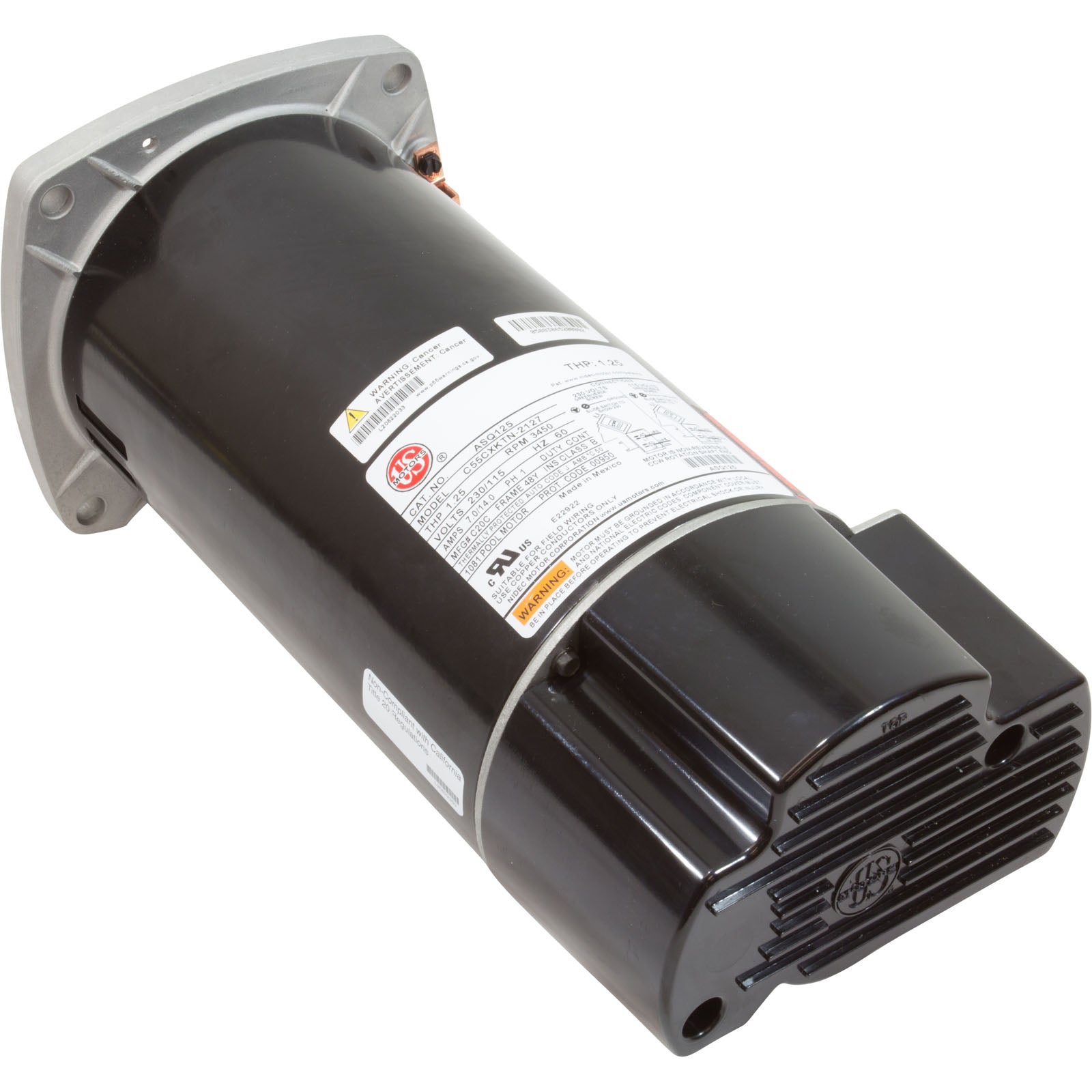

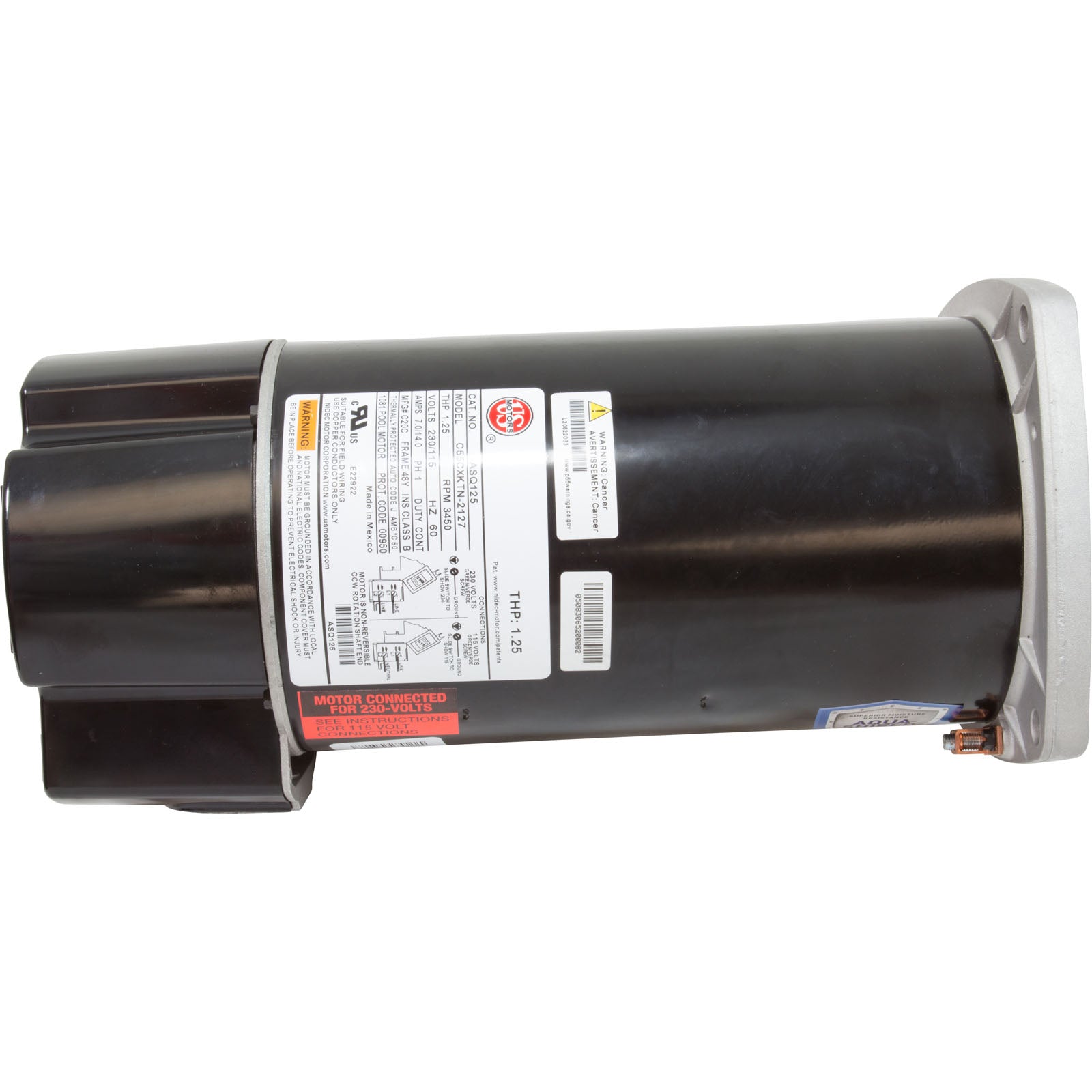

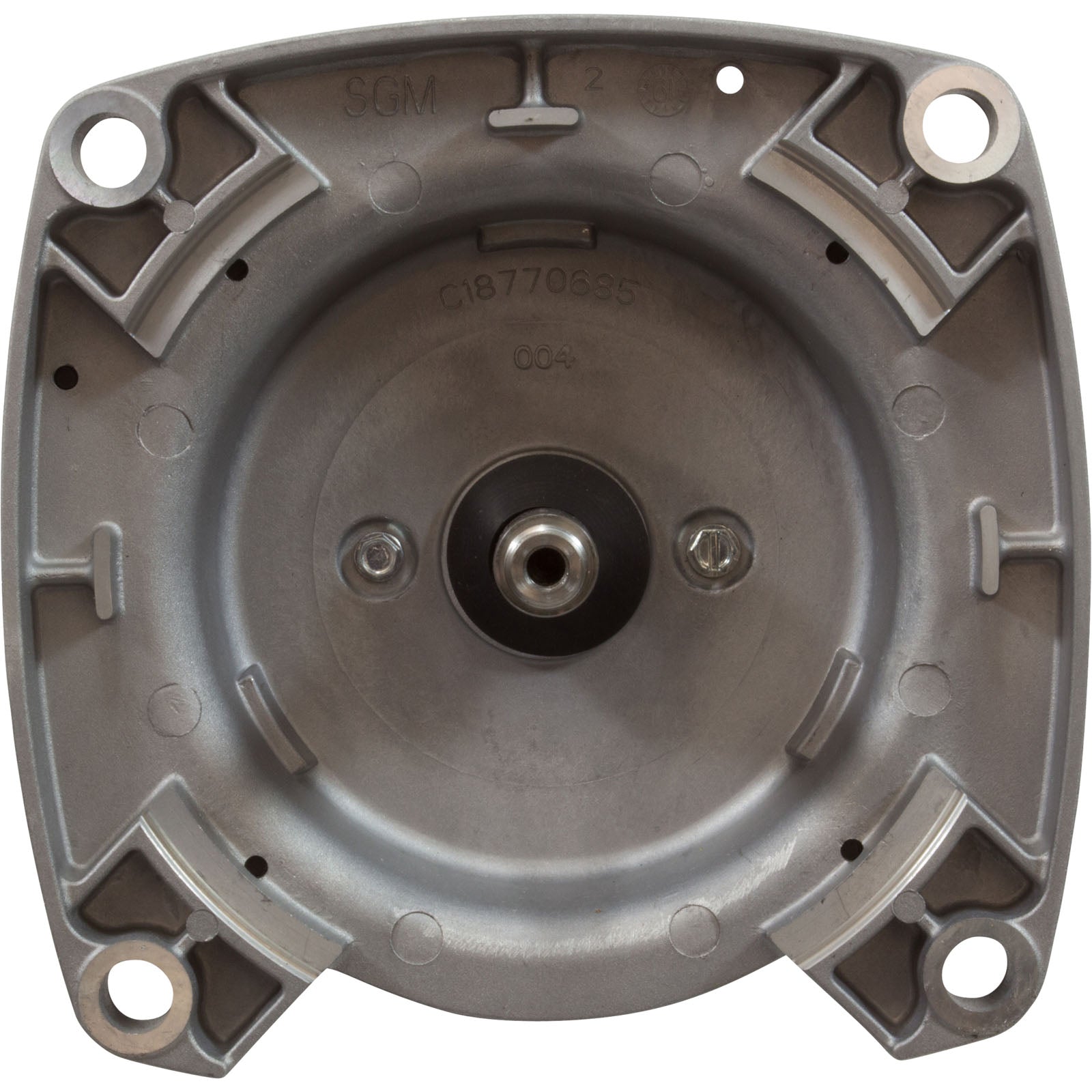

Nidec Motor ASQ125 Motor 0.75hp 115/230v 1-Spd 48Yfr Replacement MPN

Product Description

The Nidec Motor ASQ125 is a reliable motor designed for pool and spa applications. It operates on 0.75 horsepower and supports dual voltage options of 115 or 230 volts. This motor is built for continuous duty with an open drip-proof enclosure and features a square flange mounting style.

• Continuous duty design for long-lasting usage.
• Dual voltage capability for versatile installation.
• Open drip-proof enclosure protects internal components.

Product Highlights

This motor simplifies installation and maintenance with features like dual voltage selection and angled terminal boards.

Product Information

Standard Information

• Brand: Nidec Motor Corp/US Motors
• MPN: ASQ125

Technical Specifications

• Horsepower: 0.75 HP
• Voltage: 115/230V
• Speed: Single
• Frame Size: 48Y
• Amperage: 7.0/14.0
• Design: 1081
• Ambient Temperature: 50 degrees Celsius
• Shaft Threads: 1/2-20 UNF-2A
