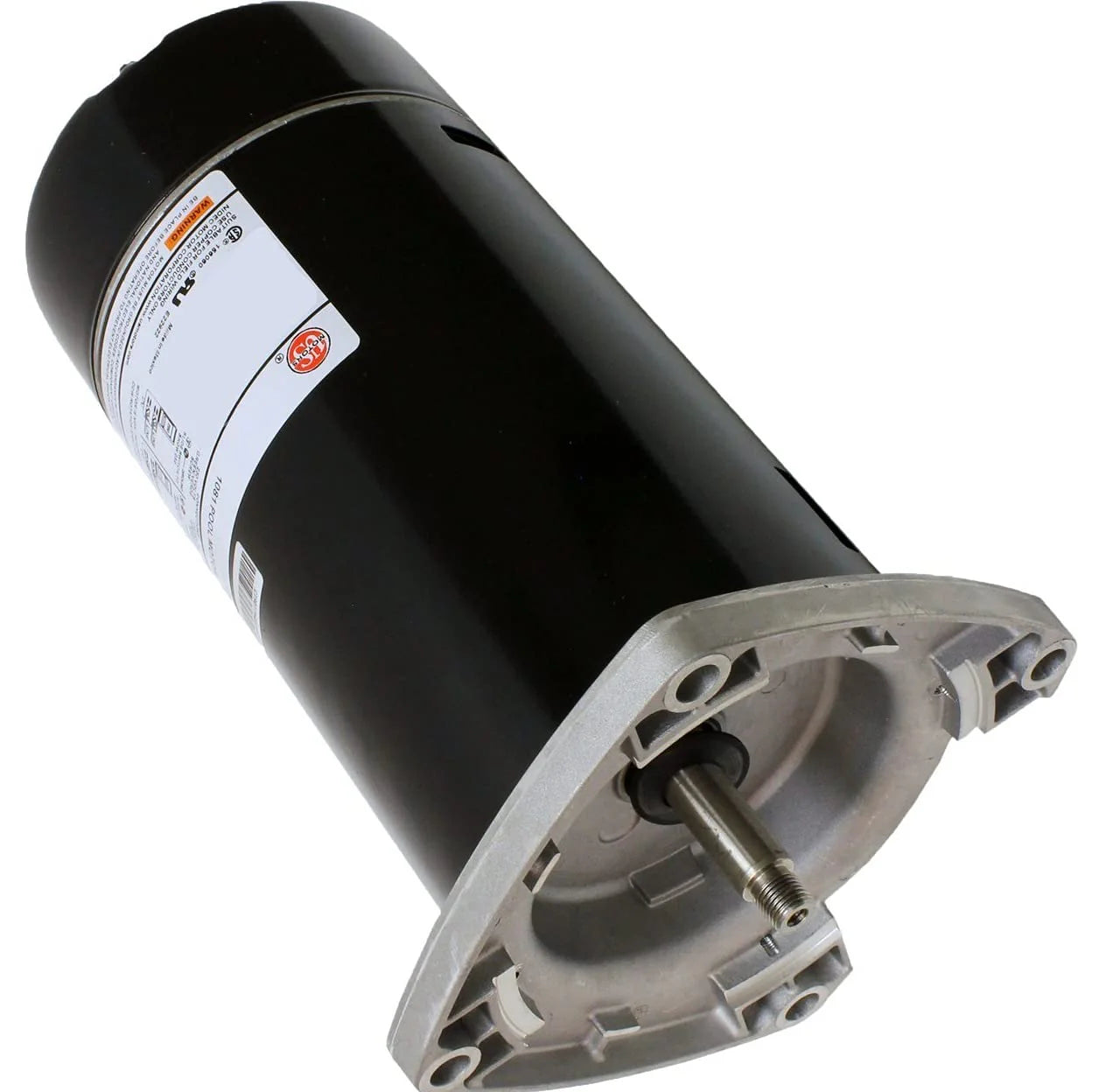

Nidec ASQ095 Motor 0.5hp 115/230v 1-Spd 48Yfr SQFL

Product Description

The Nidec ASQ095 motor is a 0.5 horsepower motor designed for pool and spa applications. It operates at 115 volts and 230 volts, offering flexibility and ease of use for various setups. This motor features a single speed and a 48Y frame, making it suitable for many standard installations.

• 0.5 HP motor
• 115/230 volts
• 48Y frame size

Product Highlights

This Nidec motor is ideal for pool and spa pumps. It is a single speed motor with a robust design for long-lasting performance.

Product Information

Standard Information

• Brand: Nidec
• Model: ASQ095
• Voltage: 115/230 volts
• Power: 0.5 HP
• Frame Size: 48Y

Technical Specifications

• Electrical Type: Cap Start
• THP: 0.95
• Stack: 1.875
• Diameter: 5.5 inches
• Enclosure: ODP
• Phase: Single
• Rotation: CCWSE
• Overload Protector: Auto
• Material: Rolled Steel
• Bearings: Ball / Ball
• Shaft Type: Single
• Capacitor Start MFD: 198.45 MFD
• Shaft Threads: 1/2-20 UNF-2A
• Service Factor: 1081 Design
• RPM: 3450
• Mounting: Square Flange
