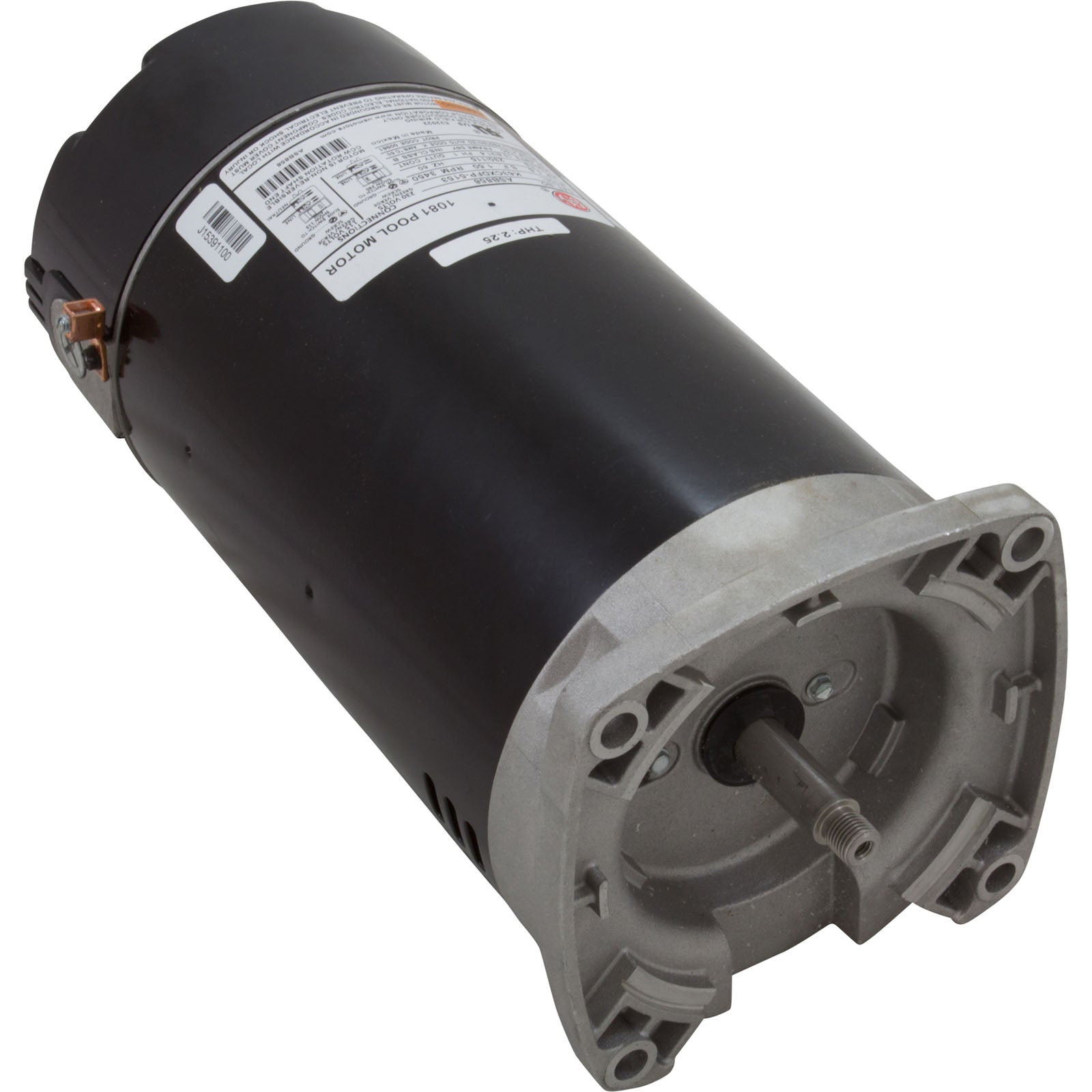

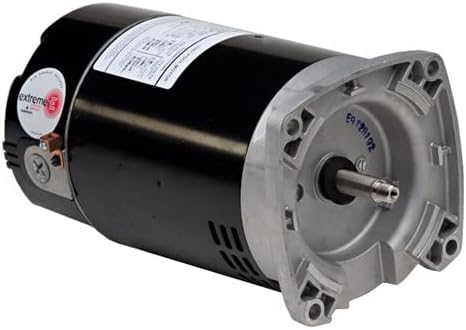

US Motors ASB858 Pool Pump Motor 1-1/2 HP 3450 RPM 115/230V 56Y ODP

Product Description

The US Motors ASB858 Pool Pump Motor is designed for high efficiency and reliable performance. This 1-1/2 horsepower motor operates at 3450 RPM and supports 115/230V. It has a 56Y frame and features open drip proof (ODP) construction. Suitable for various pool pump applications, this motor ensures durability and smooth operation.

• High efficiency 1-1/2 HP
• 3450 RPM speed
• 56Y frame size

Product Highlights

Ideal for in-ground and above-ground pool pumps, this motor offers switchless operation and operates without the need for field adjustments. It features a threaded stainless steel shaft and double-sealed ball bearings for enhanced longevity.

Product Information

Standard Information

• Manufacturer: US Motors
• Brand: US Motors
• Model: ASB858
• Category: Fan Motors
• UPC: 786382110789

Technical Specifications

• Horsepower: 1-1/2 HP
• Speed: 3450 RPM
• Frame Size: 56Y
• Voltage: 115/230V
• Enclosure: Open Drip Proof (ODP)
• Phase: Single
• Material: Stainless Steel
• Shaft Type: Threaded
• Rotational Direction: CCW
• Amperage: 10.8/21.6 amps
• Insulation Class: B
• Overload Protection: Auto
• Mounting Type: Square Flange
• Duty: Continuous
