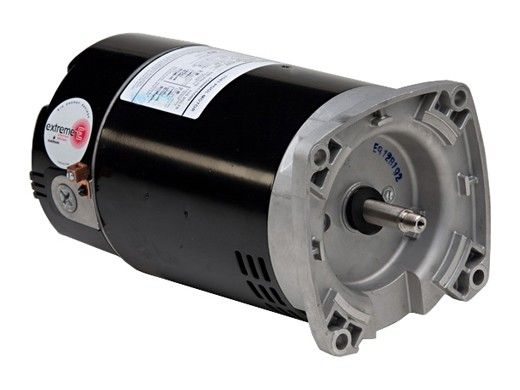

US Motors ASB846 Pool Pump Motor 115/230V 0.5HP 56Y Frame ODP

Product Description

The US Motors ASB846 is a reliable pool pump motor designed for efficient operation. Ideal for in-ground pool pumps like PacFab Challenger and Whisperflo. This motor features a 56Y frame and a square flange for easy mounting.

• 0.5 HP with 115/230V
• Switchless single phase
• Overload protection: Auto

Product Highlights

The ASB846 motor is designed for pool and spa applications. It offers a switchless design, making installation and maintenance easy. The motor includes a square flange and stainless steel shaft for durability.

Product Information

Standard Information

• Brand: US Motors
• MPN: ASB846
• Category: Pool Pump Motors
• Voltage: 115/230V

Technical Specifications

• Horsepower: 0.5 HP
• Frame: 56Y
• Enclosure: Open Drip Proof (ODP)
• Rotation: Counter Clockwise Lead End (CCWLE)
• Shaft: Threaded stainless steel, 5/8 inch diameter
• Frequency: 60 Hz
• Insulation Class: B
• Amperage: 5.4/10.8 amps
