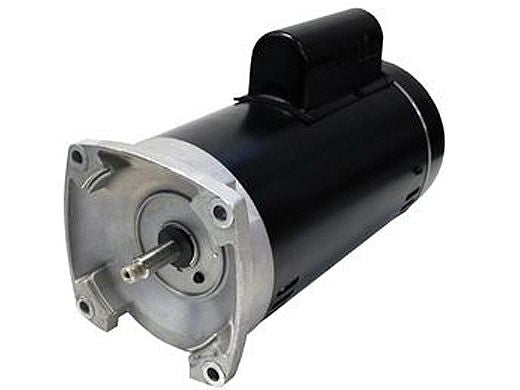

Nidec Motor Corp ASB845 Pool and Spa Motor 0.5HP 115/208-230V

Product Description

The Nidec Motor Corp ASB845 is a square flange pool and spa motor with a power rating of 0.5 horsepower. It operates on dual voltage options of one hundred fifteen and two hundred eight to two hundred thirty volts. The motor features a switchless design for easy operation. This motor is suitable for various pool pumps, including models such as PacFab Challenger and Pentair Whisperflo.

• Square flange mounting design
• Thermally protected with continuous duty
• Class B insulation for durability

Product Highlights

This motor is engineered for reliable operation in pool and spa applications, providing efficient performance with minimal maintenance requirements.

Product Information

Standard Information

• Brand: Nidec Motor Corp
• MPN: ASB845

Technical Specifications

• Power: 0.5 HP
• Voltage: 115/208-230V
• Frequency: 60 Hz
• Frame Size: 56Y
• Diameter: 6.5 inches
• Shaft Size: 1/2-20 UNF-2A
• Insulation Class: B
• Ambient Temperature Rating: 50°C
• Design Type: Open Dripproof (ODP)
• Service Factor: 1.0
