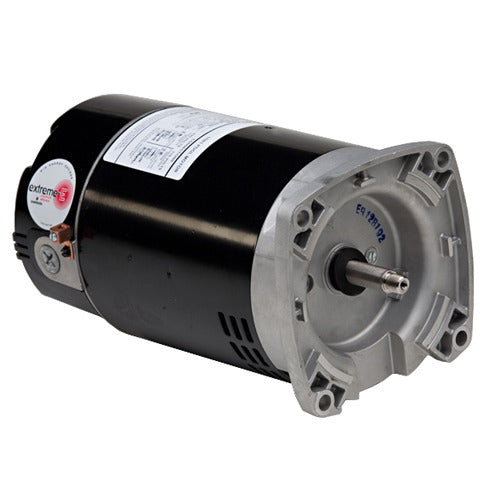

US-Nidec ASB844 Pool and Spa Motor 3.0hp 208-230v 56YFr

Product Description

The US-Nidec ASB844 pool and spa motor is a reliable and efficient motor for pool and spa applications. This motor is designed with a switchless operation and has a frame diameter of 6.5 inches. It operates at a voltage of 208-230 volts and is perfect for continuous duty cycles.

• Full-rated premium efficiency
• Switchless design
• Sealed ball bearings

Product Highlights

The US-Nidec ASB844 pool and spa motor features a two-compartment design and an open drip-proof structure. It includes a 303 stainless steel shaft with 1/2-20 UNF-2A threads, providing durability and reliability. The motor has triple bearing protection, class B insulation, and is thermally protected.

Product Information

Standard Information

• Brand: US-Nidec
• Model Number: ASB844

Technical Specifications

• Electrical Type: PSC
• THP: 3.45
• Frame: 56Y
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 208-230 volts
• Rotation: CWLE
• Overload: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Amperage: 14.8-13.5
• Shaft Type: Single
• Cap Run MFD: 50.00 MFD
• Cap Run Voltage: 370 V
• Ambient Temperature: 50°C
• Duty: Continuous
• Insulation Class: B
