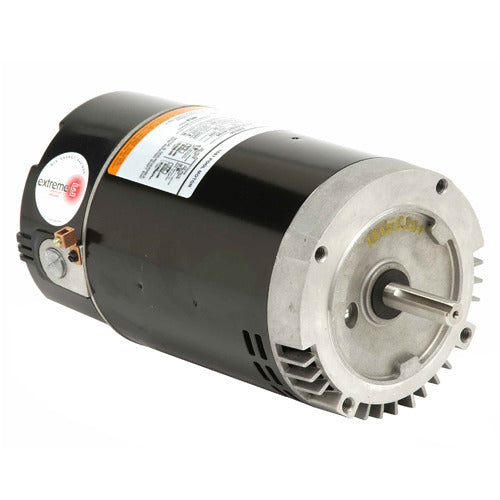

US-Nidec ASB818 Pool and Spa Motor 3.0 HP 208-230V 56J Frame

Product Description

The US-Nidec ASB818 Pool and Spa Motor features a powerful 3.0 HP motor designed for use in pool and spa applications. Operating on 208-230 volts, this motor offers premium efficiency and a switchless design.

• 3.0 HP motor
• 208-230 volts
• Switchless design

Product Highlights

This pool and spa motor is ideal for replacing motors in pool pumps. It features a durable rolled steel body and sealed ball bearings for longevity. The motor is thermally protected and operates in continuous duty mode.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: ASB818

Technical Specifications

• Electrical Type: PSC
• THP: 3.45
• Frame: 56J
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 208-230
• Rotation: CCWSE
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
• Mounting: C-Face
• Amperage: 14.8-13.5
• Shaft Type: Single
• Ambient Temperature: 50°C
• Cap Run MFD: 50.00 MFD
• Cap Run Voltage: 370 V
