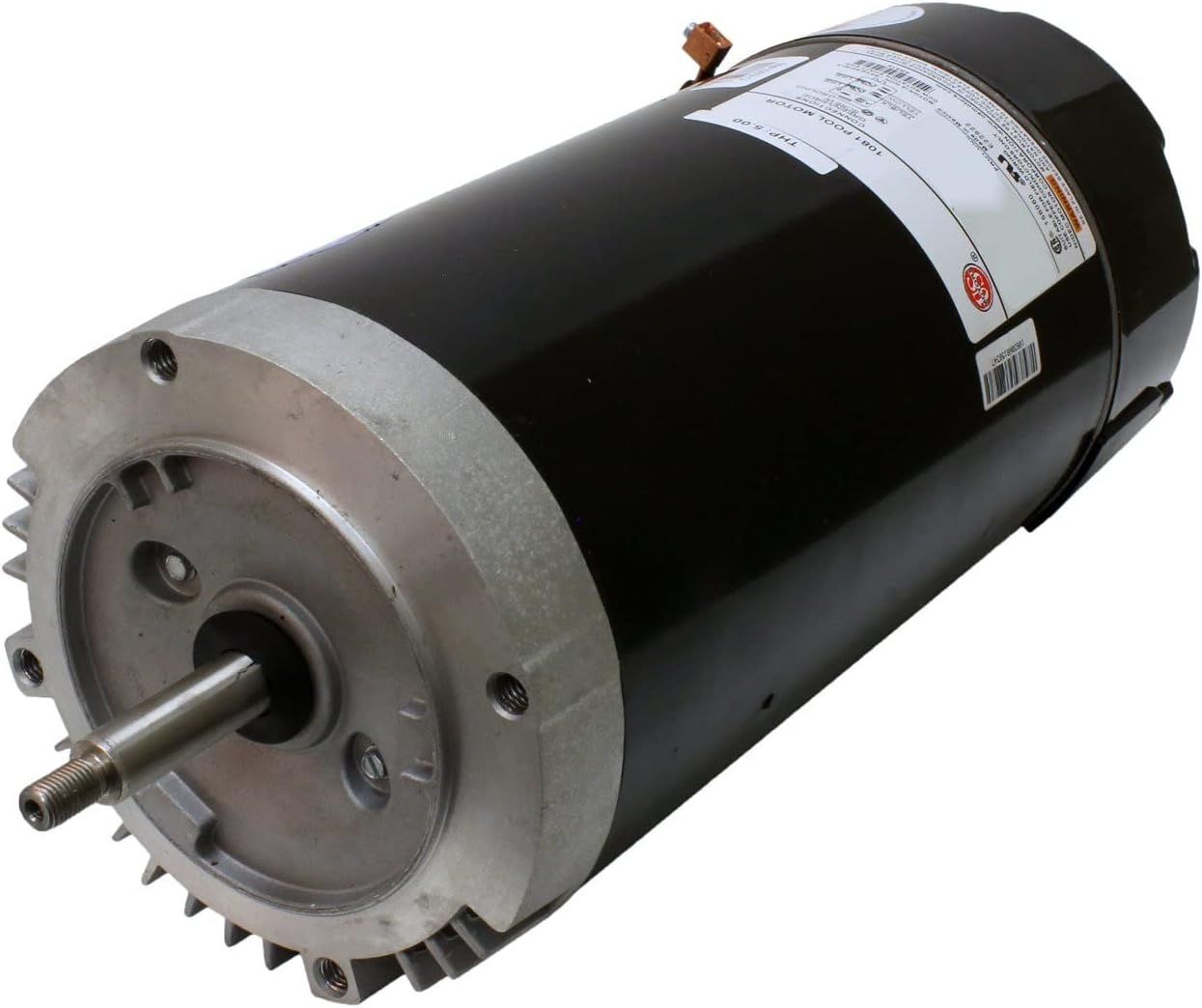

US Motors ASB809 Swimming Pool Pump Motor 2 HP 3450 RPM 56J Frame 208-230V

Product Description

The US Motors ASB809 swimming pool pump motor, with an MPN of ASB809, offers reliable performance for your pool. It features a 2 horsepower motor that operates at 3450 RPM and fits a 56J frame.

• 2 HP motor for powerful performance
• 3450 RPM for efficient operation
• Fits 56J frame for compatibility

Product Highlights

Designed for inground pool pumps like the Hayward Super Pump and Maxflo, this motor includes a sealed ball bearing system, stainless steel shaft, and switchless design for durability and ease of use. Suitable for continuous duty, it is thermally protected and includes a voltage selection device for dual voltage applications.

Product Information

Standard Information

• Brand: US Motors
• MPN: ASB809

Technical Specifications

• Horsepower: 2 HP
• Speed: 3450 RPM
• Frame: 56J
• Voltage: 208-230V
• Shaft Type: Stainless Steel
• Enclosure: Open Dripproof
• Insulation: Class B
• Orientation: Single phase
• Diameter: 6.5 inches
• Ambient Temperature: 50°C
• Weight: 40 lbs
• Mounting Type: C-Face
• Thread Size: 7/16-20 UNF-2A
