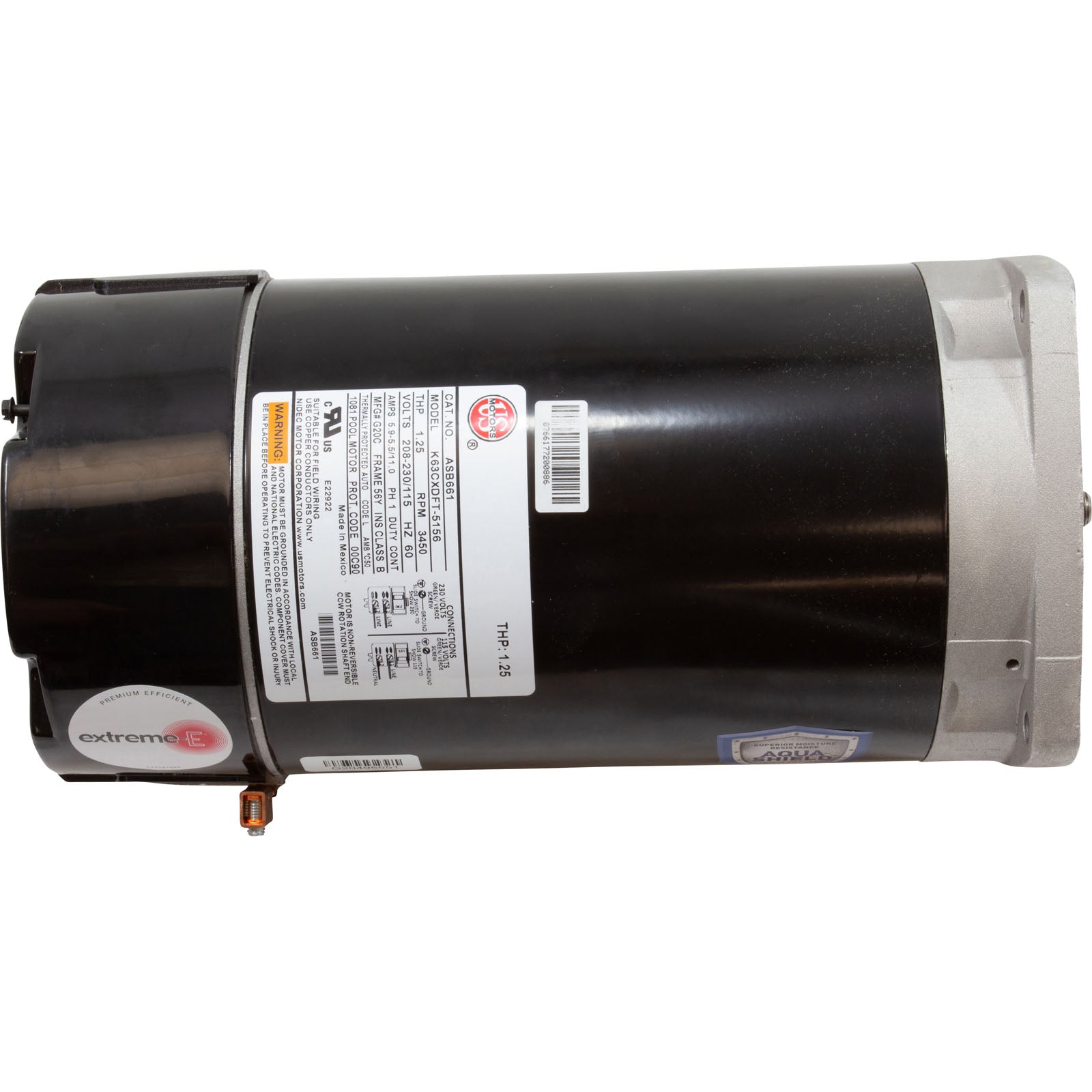

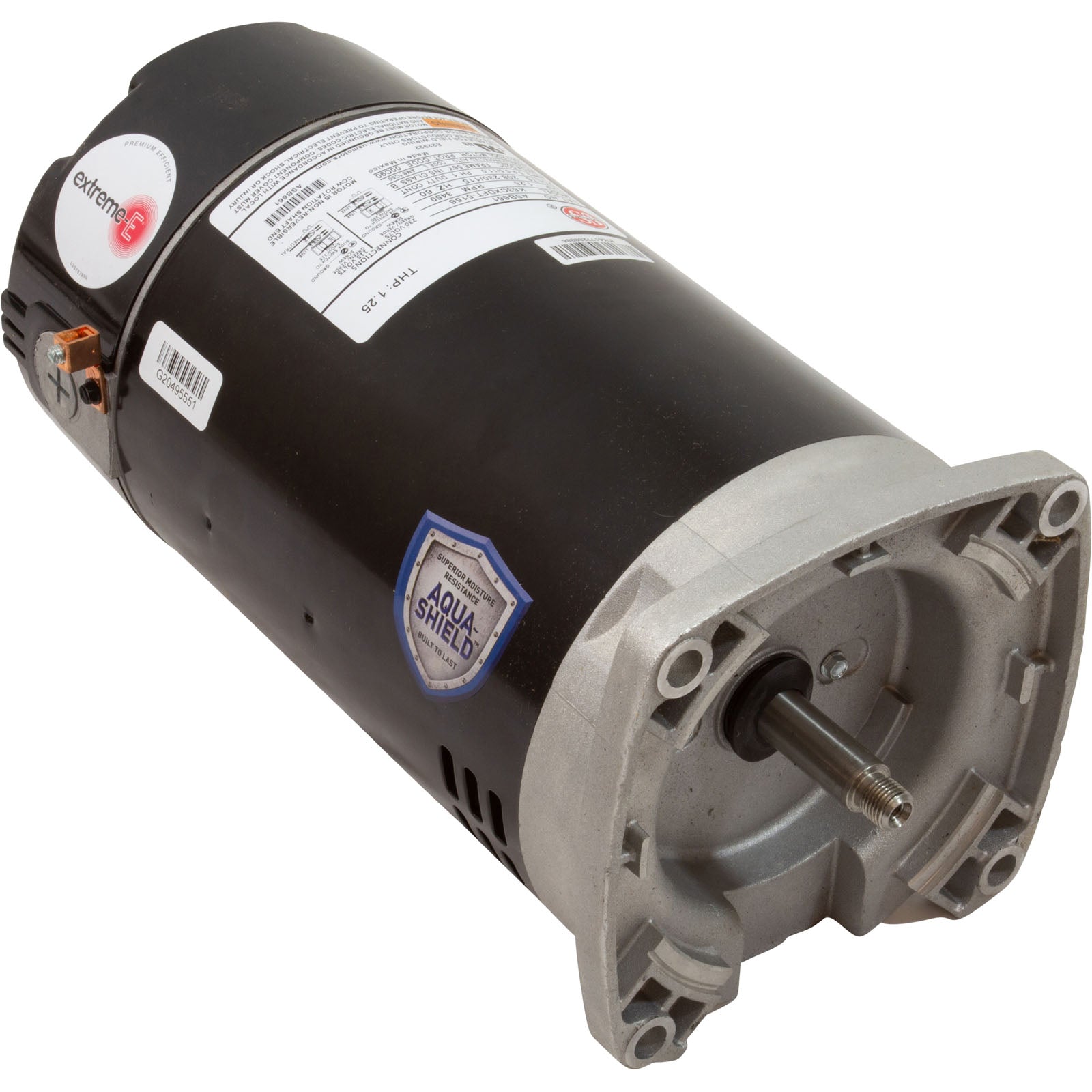

US-Nidec ASB661 Pool and Spa Motor 1.25THP 115/230v ODP 56Y Frame

Product Description

The US-Nidec ASB661 Pool and Spa Motor is a robust solution for pool and spa applications, delivering reliable performance and efficiency. This motor is designed for easy integration and long-term use.

• 1.25 Total Horsepower
• 208-230/115 volts
• 56Y Frame Size

Product Highlights

The ASB661 Pool and Spa Motor features a single-speed design and operates with high efficiency. It has automatic overload protection and is built with rolled steel for durability. The square flange mounting ensures easy installation and stability.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: ASB661
• Type: Pool and Spa Motor
• UPC: 786382110512

Technical Specifications

• Electrical Type: PSC
• Total Horsepower: 1.25
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 208-230/115
• Rotation: CCWSE
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203

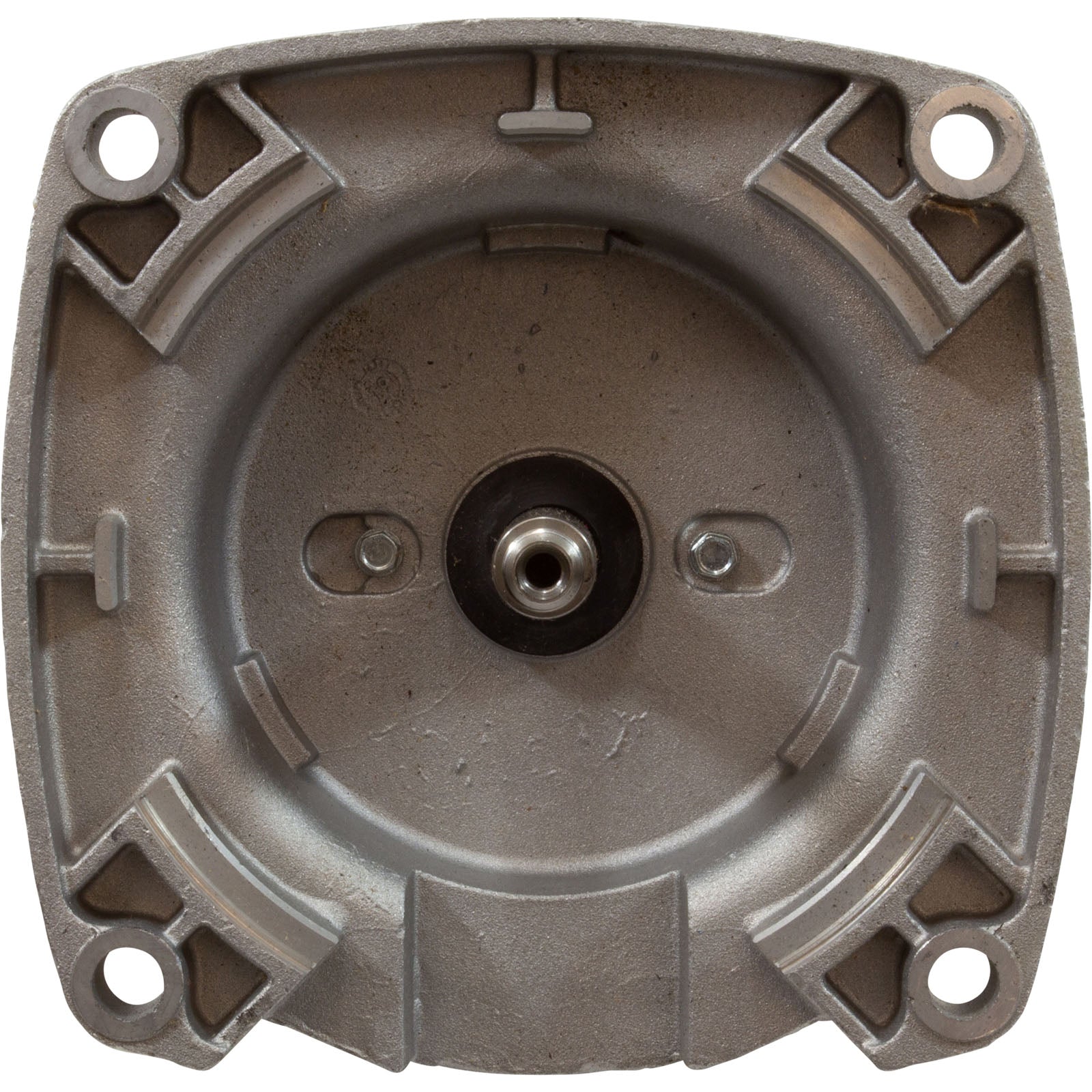

• Mounting Type: Square Flange
• Amperage: 5.9-5.5/11.0
• Shaft Type: Single

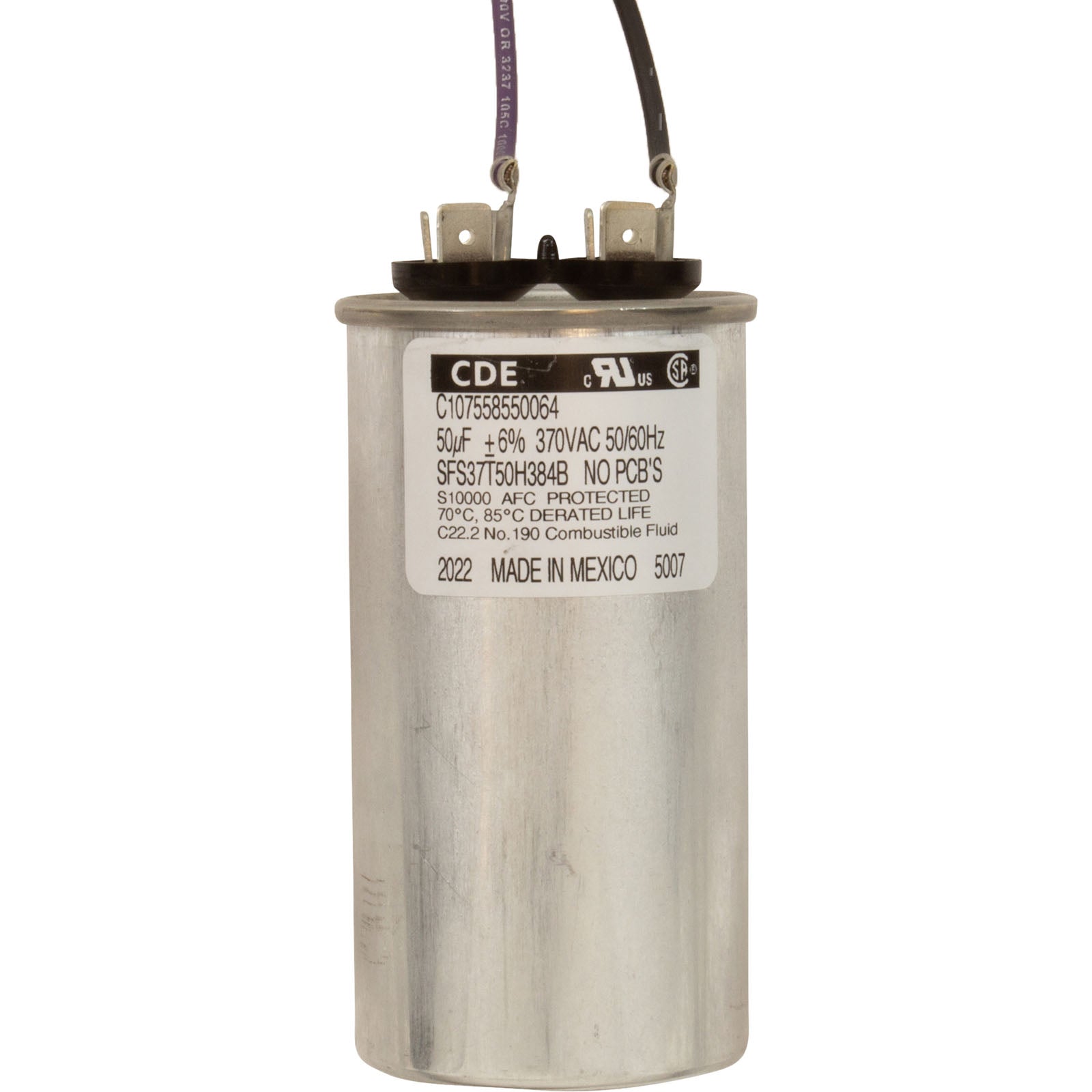

• Capacitor Run MFD: 50.00 MFD
• Capacitor Run Voltage: 370 V
• Insulation Class: B
• Locked Rotor Amps: 25.65
• Locked Rotor Torque: 14.09 OZ/FT
• Pole Count: 2
• Body Length: 12.74 inches
• Ambient Temperature: 50 degrees C
