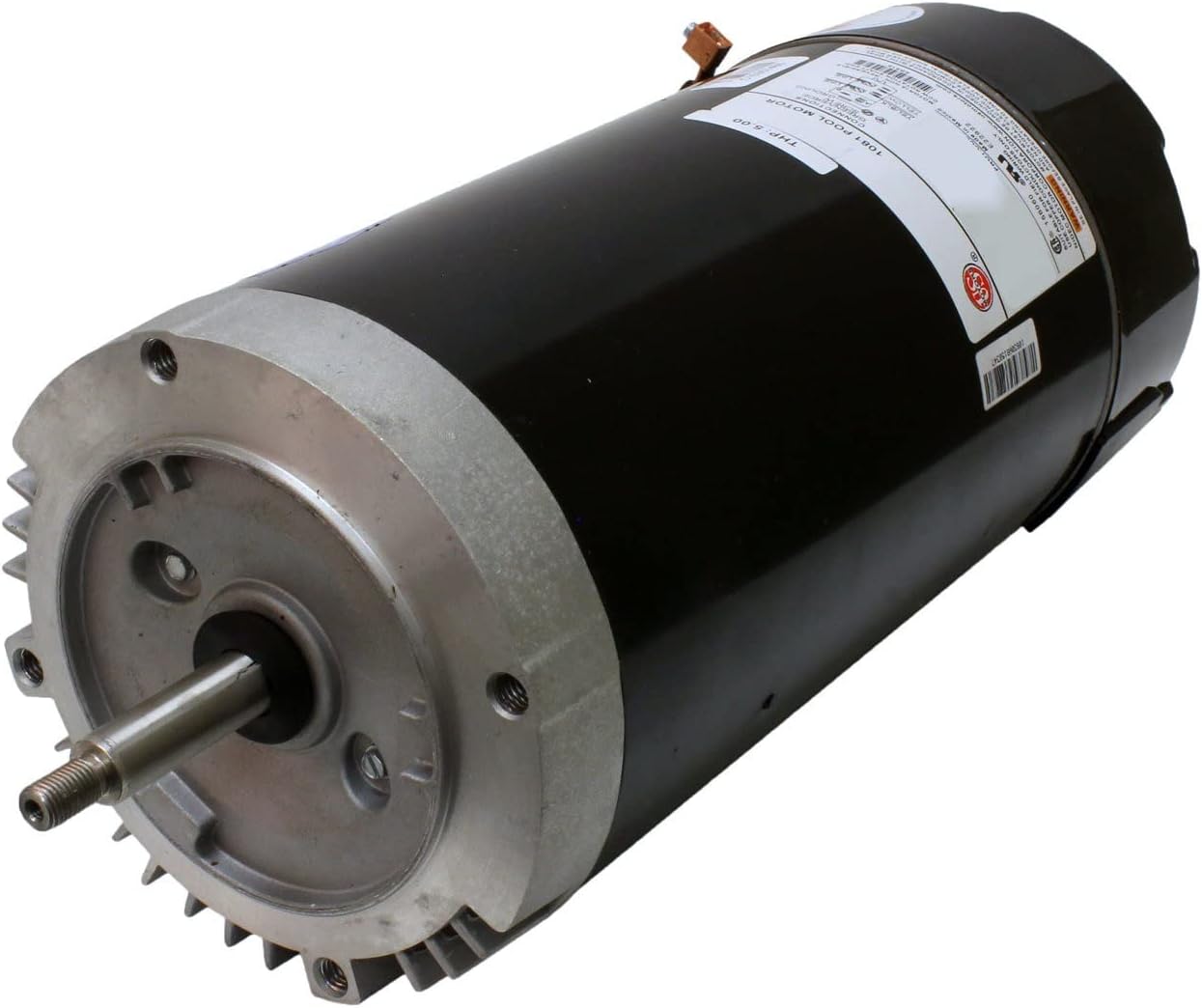

US Motors ASB654 | 1 hp 3450 RPM 56J Frame 115/230V Switchless Swimming Pool Pump Motor

Product Description

The US Motors ASB654 is a 1 hp pool pump motor designed for efficiency and reliability. It features a 3450 RPM speed and a 56J frame, making it suitable for swimming pool pumps. This motor operates on 115/230V and does not require a switch.

• Designed for swimming pool pumps
• Operates on 115/230V
• 3450 RPM 1 hp motor

Product Highlights

This motor is commonly used with inground pool pumps, including models like Hayward Super Pump, Maxflo, and Super II. It features a stainless steel shaft, sealed ball bearings, and a C-face mount. The motor includes a wiring diagram on the nameplate and comes with a one-year manufacturer's warranty.

Product Information

Standard Information

• Brand: US Motors
• MPN: ASB654
• Color: Stainless Steel
• Material: Stainless Steel
• Power Source: Corded Electric

Technical Specifications

• Speed: 3450 RPM
• Frame: 56J
• Voltage: 115/230V
• Amperage: 14.0/7.0 amps
• Frequency: 60 HZ
• Shaft Diameter: 5/8 inches
• Shaft Type: Threaded Stainless Steel
• Weight: 32 pounds
• Ambient Temperature: 50°C
• Bearing Type: Sealed Ball Bearings
• Insulation Class: B
• Mounting: C-Face
• Service Factor: 1.40
• Protection: Thermally Protected
