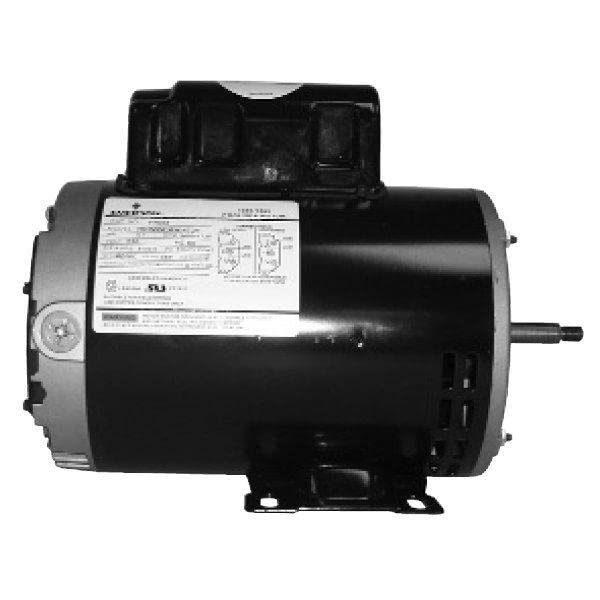

U.S. Motors ASB605 Thru-Bolt Pool Motor 3 HP 230V Single Phase

Product Description

The U.S. Motors ASB605 Thru-Bolt Pool Motor is designed for efficiency and durability in pool and spa environments. This motor features a solid mounting frame for a rigid base and a thru-bolt design that ensures secure placement. It operates with a single speed and a full-rated 3 HP, providing reliable power for various pool and spa applications.

• Class F Insulated
• Class B Temperature Rise
• 1081 and 1563 Design

Product Highlights

This motor is built with an open drip-proof enclosure and sealed ball bearings for long-lasting use. It can withstand high ambient temperatures of up to 60 degrees Celsius. The ASB605 is also thermally protected, making it resilient in demanding pool environments.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: ASB605
• Type: Pool and Spa Motor
• Voltage: 230V
• Phase: Single
• Power: 3 HP

Technical Specifications

• Amperage: 12.0
• Frame: 56Y
• Diameter: 6.5 inches
• Enclosure: ODP
• Rotation: CWLE
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
• Ambient Temperature: 60°C
• Capacitor Run MFD: 40.00 MFD
• Capacitor Run Voltage: 370 V
• Shaft Thread: 3/8-16 UNC-2A
