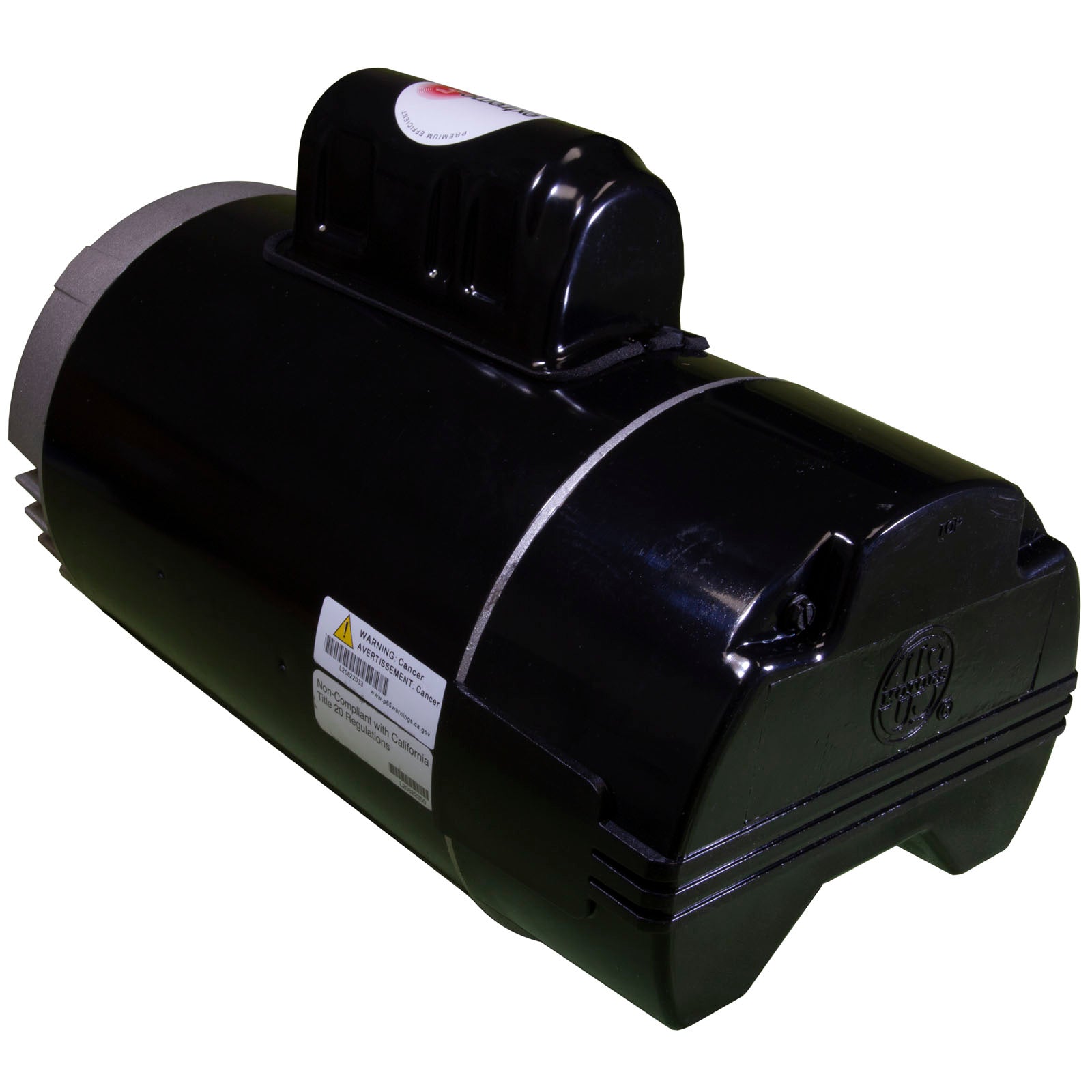

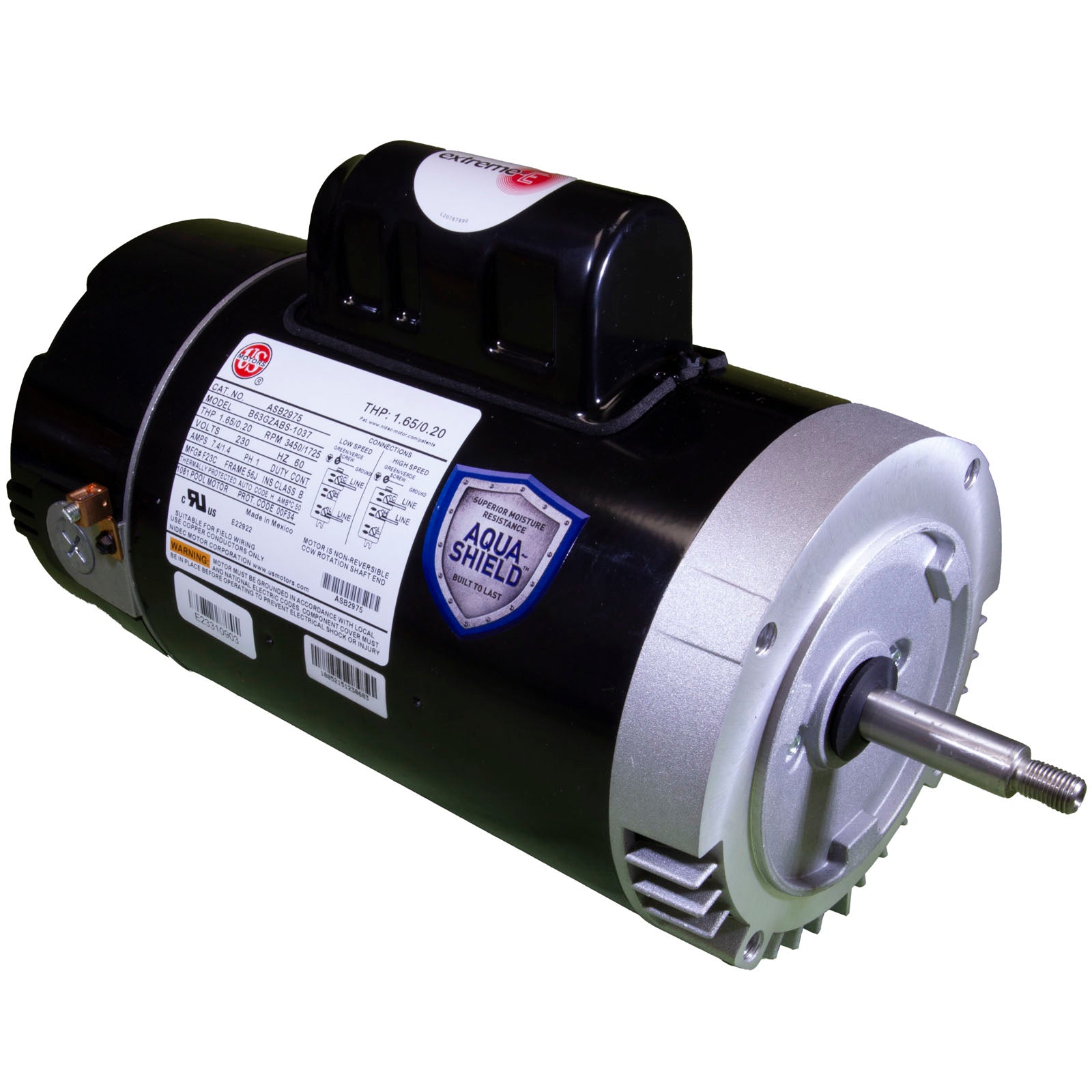

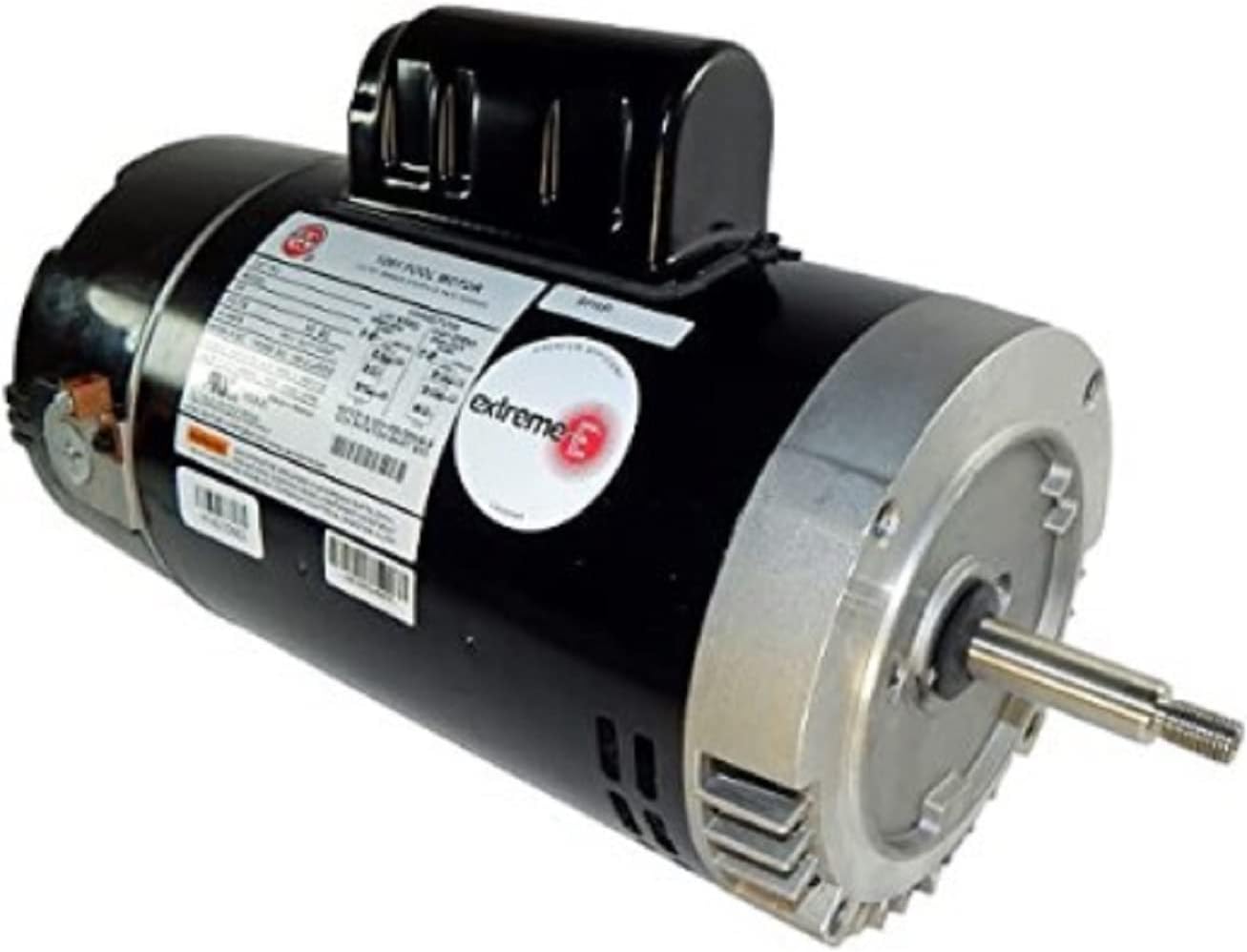

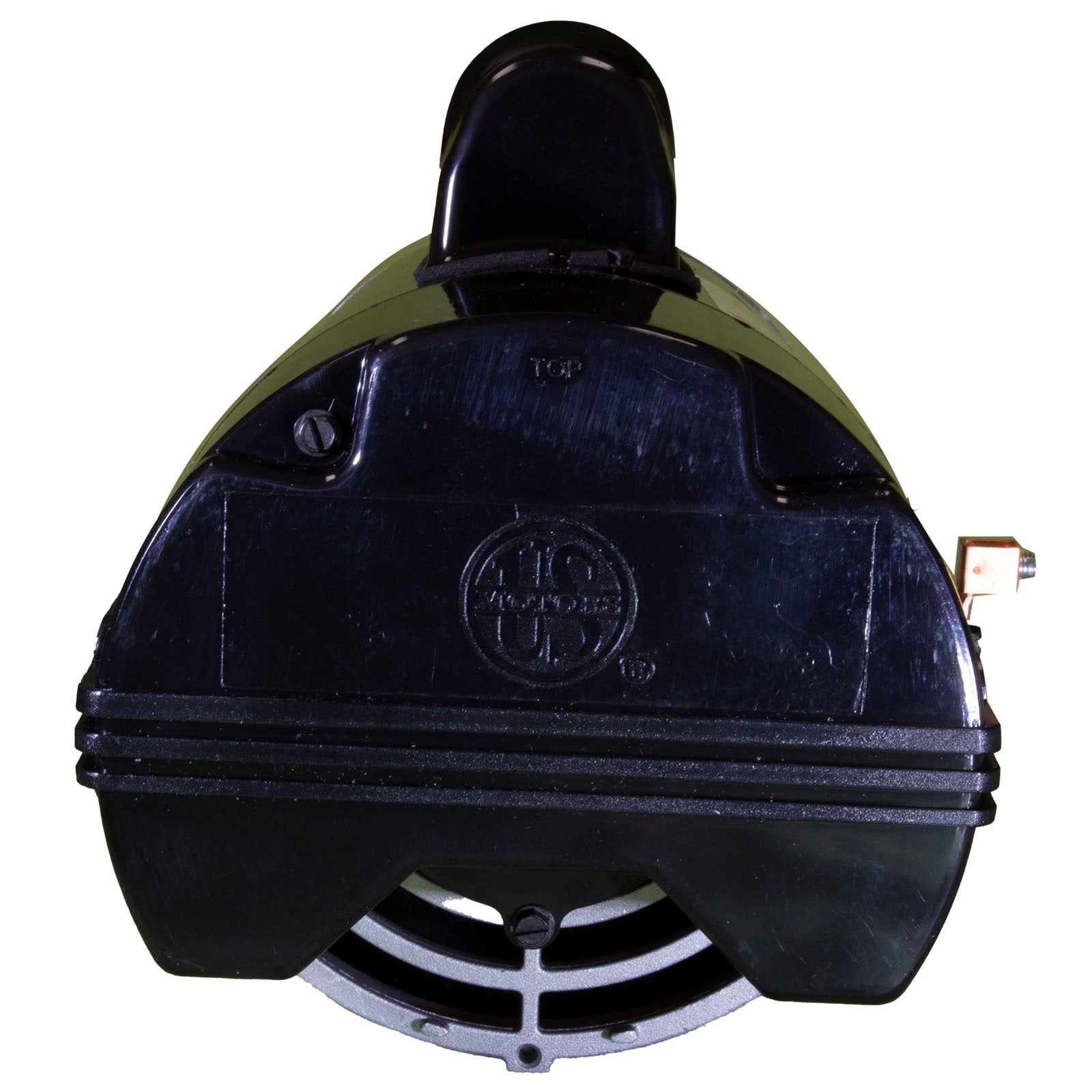

US Motors ASB2975 1 hp 2-Speed 56J Frame 230V 2 Speed Swimming Pool Motor

Product Description

The US Motors ASB2975 is a 1 horsepower, two-speed pool motor designed primarily for swimming pools and spas. This motor operates at 230 volts and features a 56J frame size. It is specifically built for applications requiring efficiency and reliability. With a maximum speed of 1725 RPM, this motor ensures optimal performance in water circulation tasks.

• 1 HP motor with two-speed settings for flexible operation.
• Durable stainless steel shaft, suitable for various conditions.
• Sealed ball bearings for enhanced longevity.

Product Highlights

This motor offers continuous duty operation and is thermally protected. It does not include a switch but is equipped with four threaded bolt holes for secure mounting. The design meets California Energy Commission Appliance Regulations.

Product Information

Standard Information

• Brand: US Motors
• MPN: ASB2975

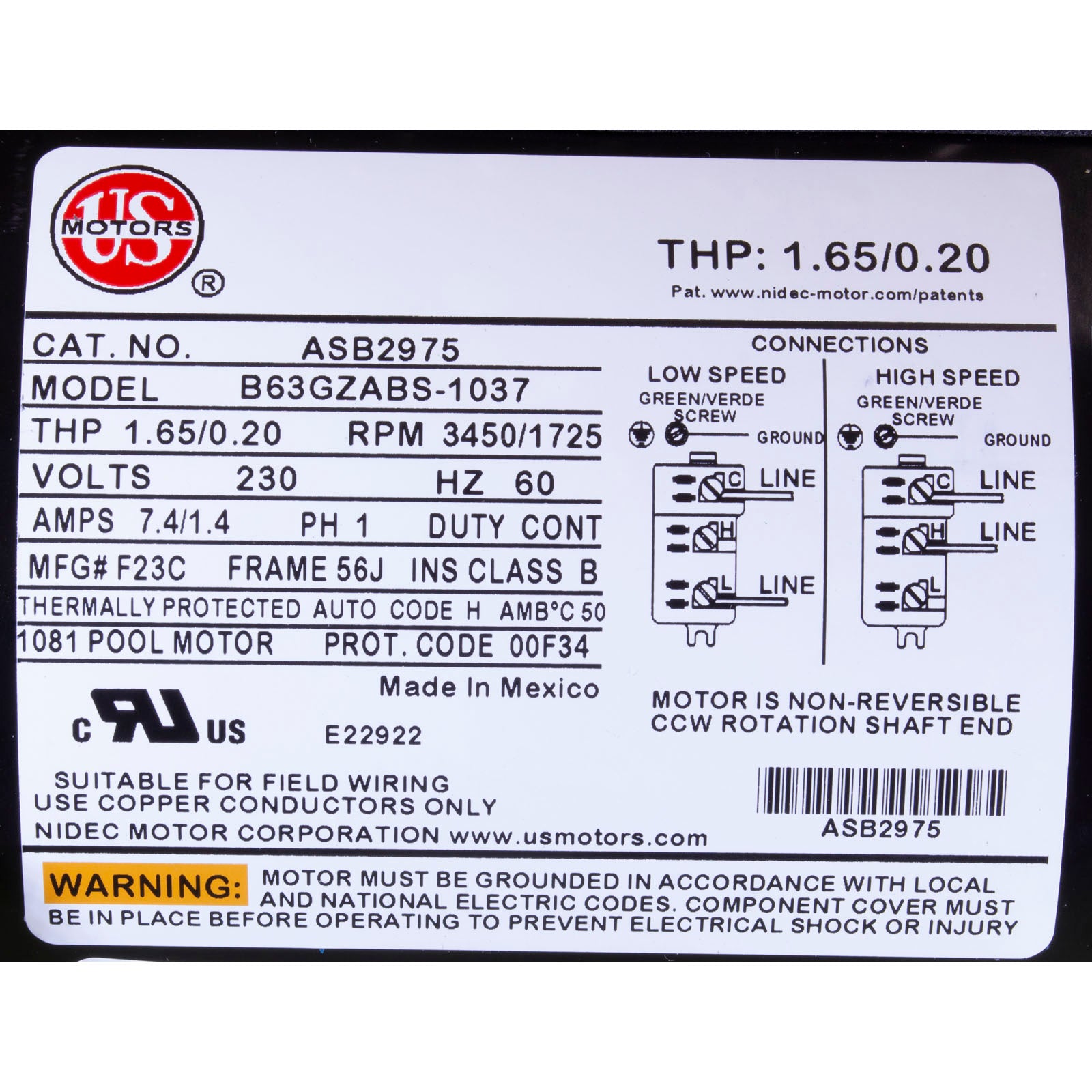

Technical Specifications

• Power: 1 HP
• Speed: 1725 RPM
• Voltage: 230 Volts
• Frame Size: 56J
• Dimensions: 14.6 x 7 x 9 inches
• Weight: 23 pounds
• Material: Stainless Steel
• Amperage: 7.4/1.3 amps
• Bearings: Sealed Ball Bearings
