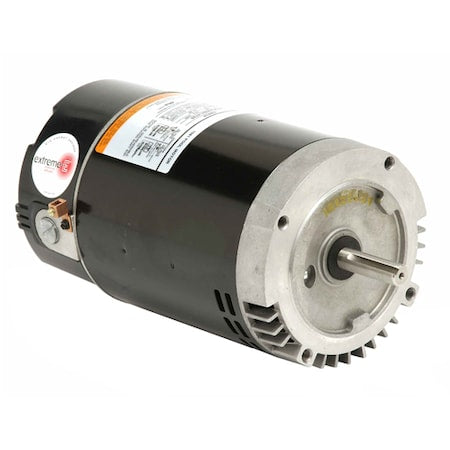

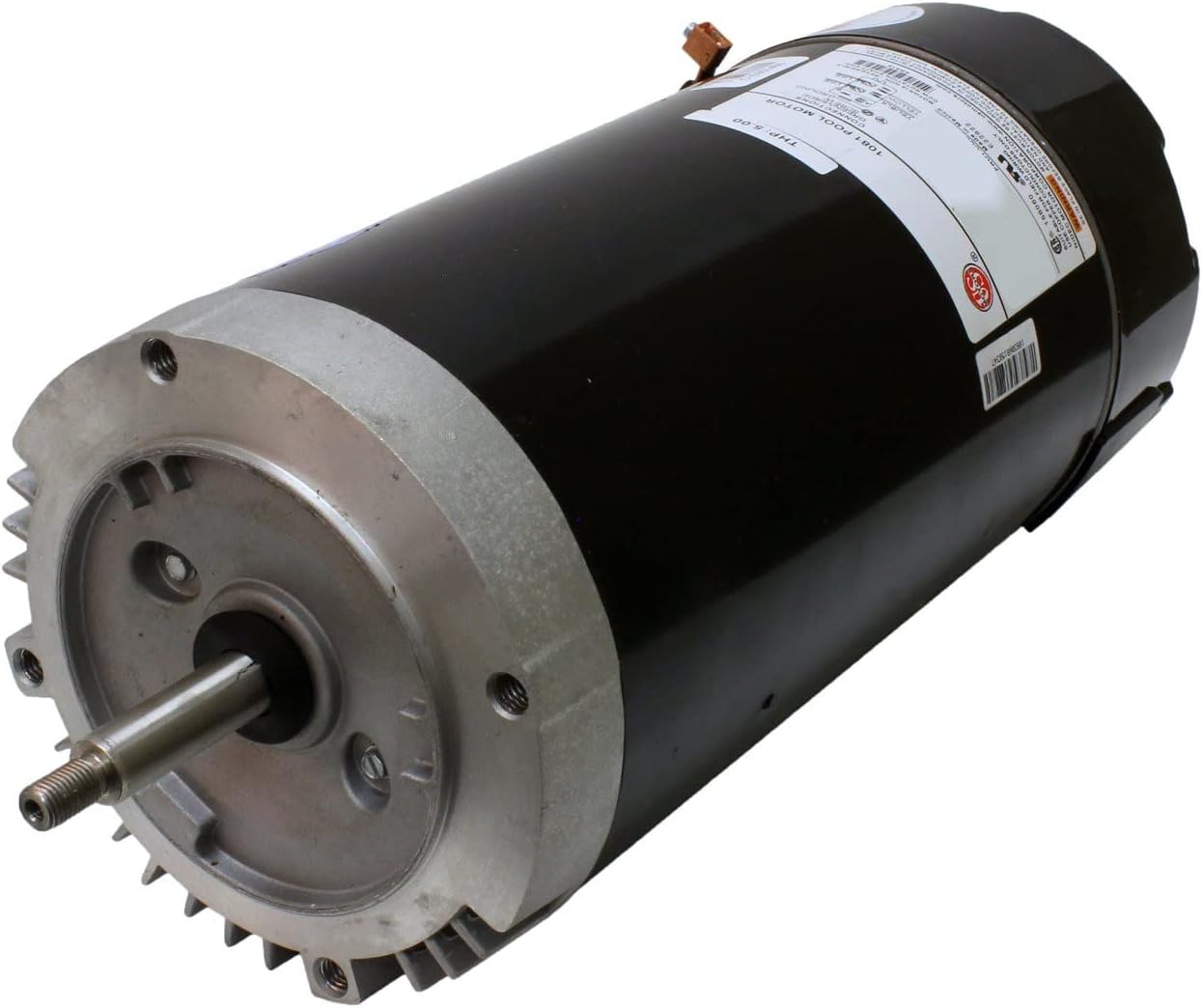

US Motors ASB129 Motor 1.5hp 115v/230v 1-SPD 56Jfr C-Face THD

Product Description

The US Motors ASB129 motor is a reliable and efficient solution for various applications, including swimming pool pumps. This 1.5 horsepower motor operates at 115 volts or 230 volts with a single speed and a 56J frame. It is designed with a C-Face THD for easy installation.

• 1.5 HP 3450 RPM 56J, 9.0/18.0 amps, 115/230V 60hz.
• Automatic Overload Protection - Service Factor 1.30
• Non-Reversible - CCW Rotation facing the shaft

Product Highlights

This motor features a stainless steel shaft, sealed ball bearings, and a service factor of 1.30. It includes automatic overload protection and a non-reversible design with a counterclockwise rotation when facing the shaft. Ideal for pool and spa pumps, it ensures durability and optimal performance.

Product Information

Standard Information

• Brand: US Motors
• MPN: ASB129

Technical Specifications

• Horsepower: 1.5 hp
• Speed: 3450 RPM
• Voltage: 115v/230v
• Frame: 56J
• Mount Type: C-Face
• Material: Stainless Steel
• Service Factor: 1.30
• Rotation: CCW (Counterclockwise) facing the shaft
• Amperage: 10.8/21.6
• Bearings Type: Sealed ball
• Protection: Automatic overload
