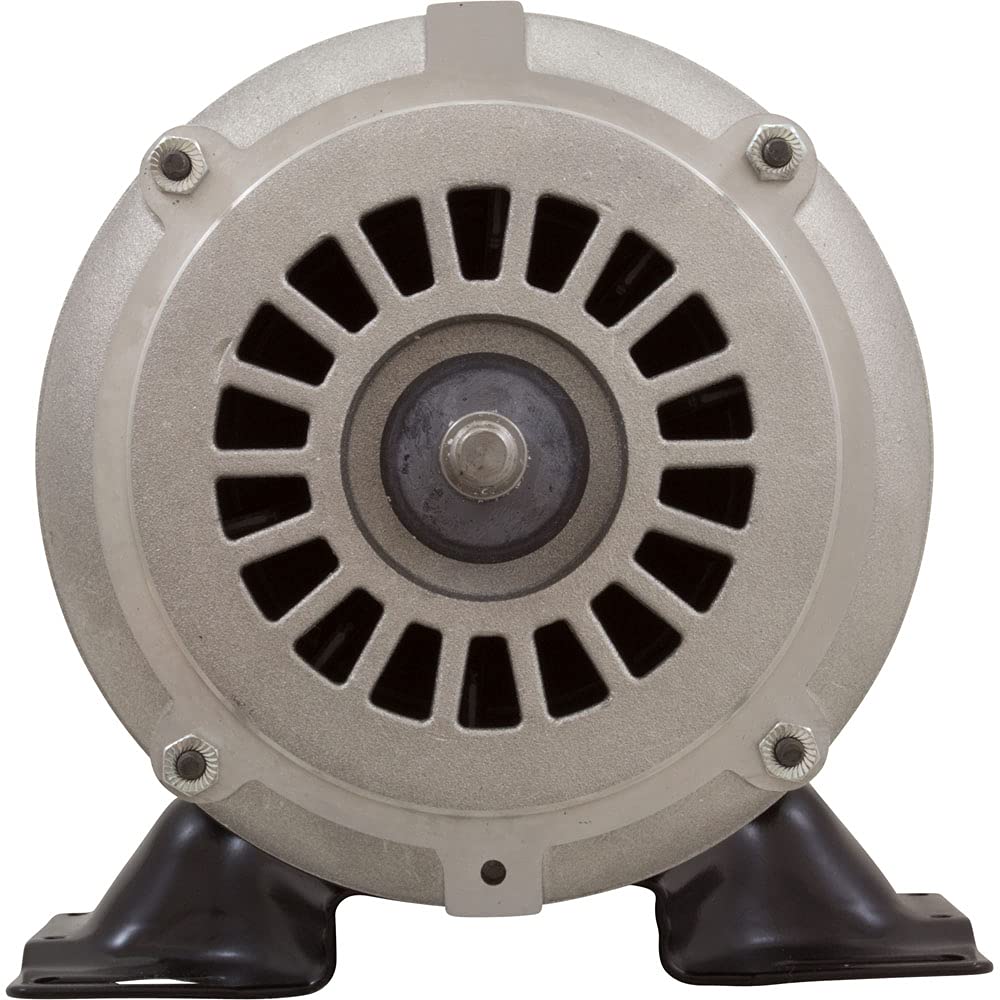

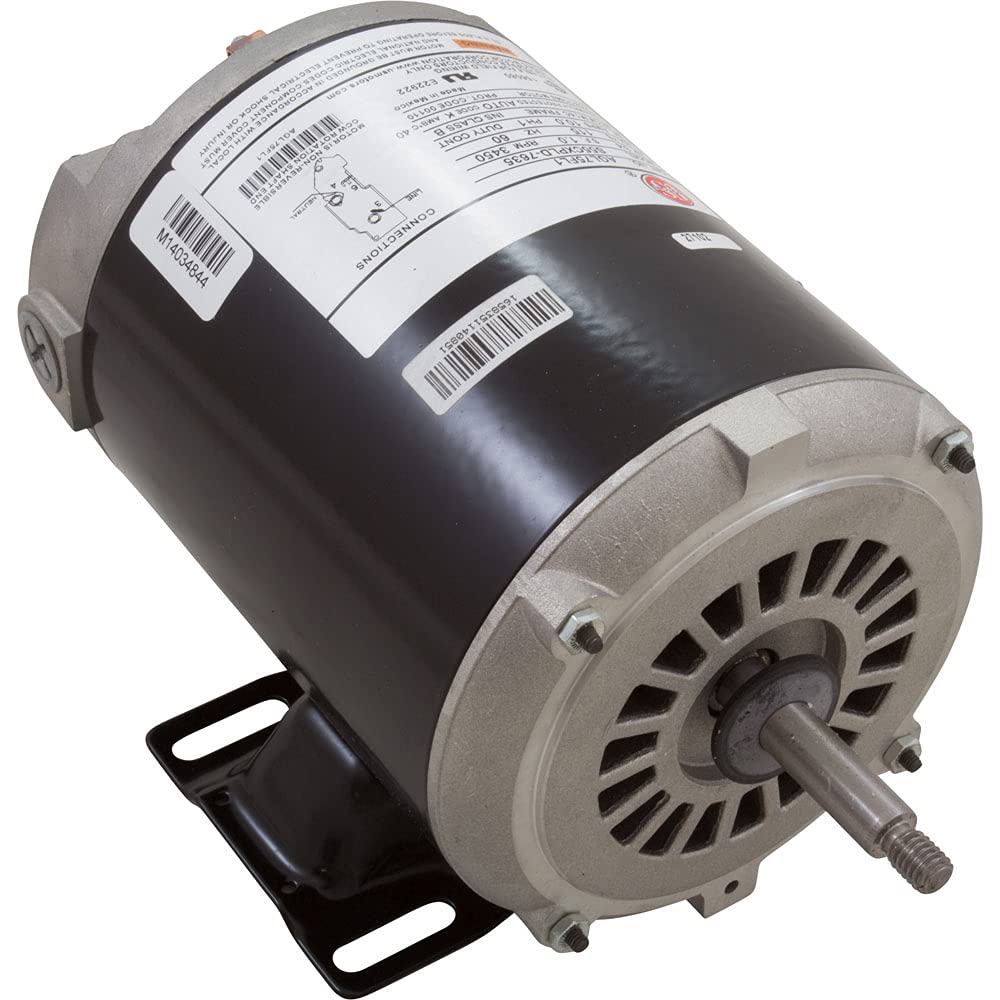

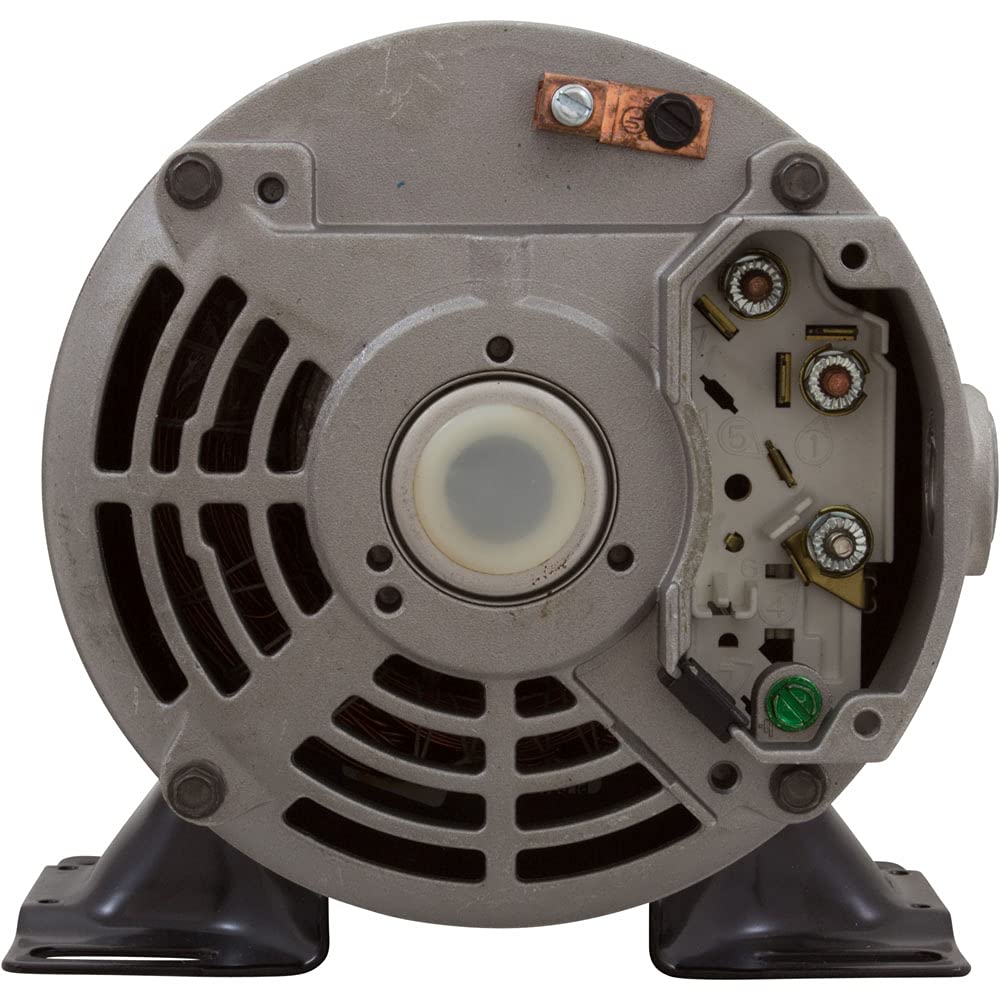

Nidec AGL75FL1 Motor 0.75hp 115v 1-Speed 48Y Frame

Product Description

The Nidec AGL75FL1 Motor is a reliable and efficient choice for pool and spa applications. This US Motors model provides 0.75 horsepower and operates at 115 volts. It features a single speed functionality and fits a 48Y frame size.

• Reliable 0.75 hp motor
• 115 volts operation
• Single speed, 48Y frame

Product Highlights

The Nidec AGL75FL1 Motor is suited for various pool and spa uses, providing consistent performance with its 0.75hp power output and 115v capacity. The single-speed motor is designed with a 48Y frame and through bolt mounting, ensuring easy installation and compatibility with many systems.

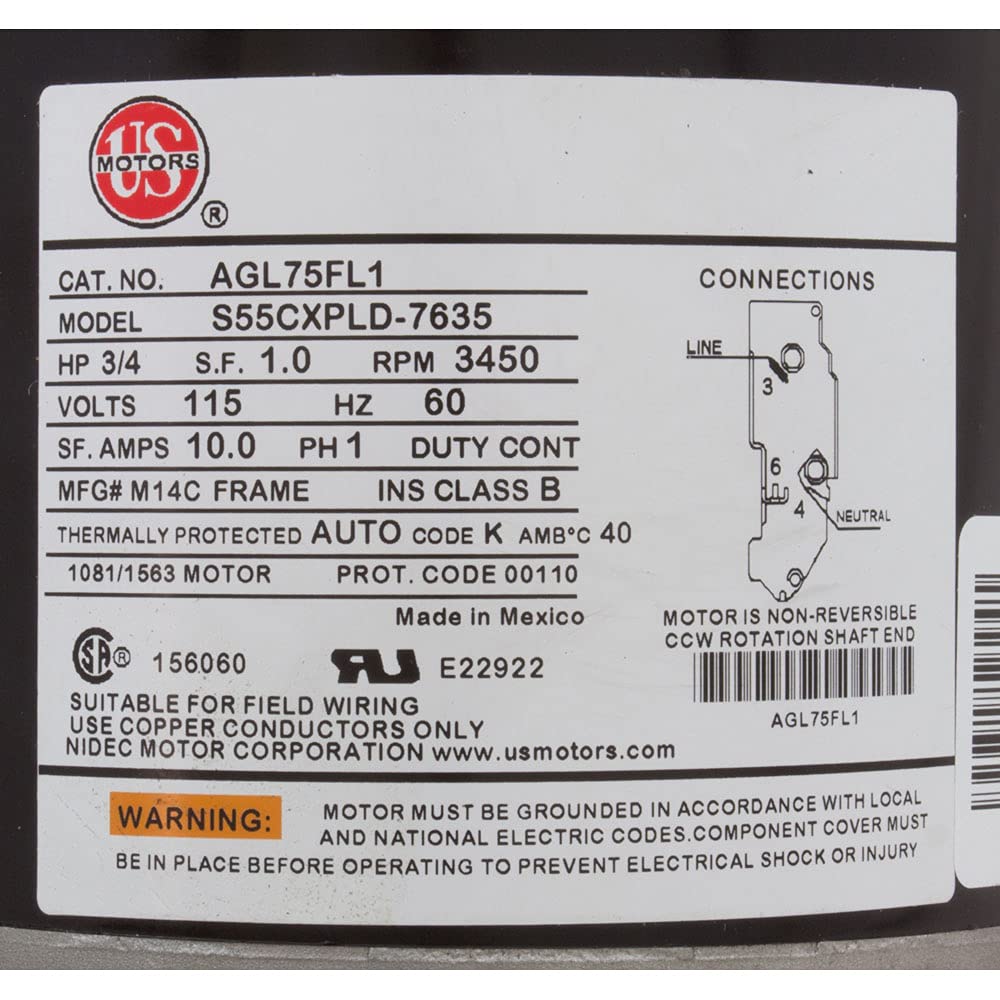

Product Information

Standard Information

• Brand: Nidec Motor Corp
• MPN: AGL75FL1
• Category: Fan Motors
• Type: Motor - Pool and Spa Motor

Technical Specifications

• Horsepower: 0.75 hp
• Voltage: 115 volts
• Frame Size: 48Y
• Enclosure: ODP
• Phase: Single
• Diameter: 5.5 inches
• Amperage: 10 amps
• Materials: Rolled Steel
• Bearings Type: Ball/Ball
• Mounting Type: Thru Bolt/Base
• Rotation: CCWSE
• Frequency: 60 HZ
• Insulation Class: B
• Locked Rotor Amps: 53.3
• Service Factor: 1
