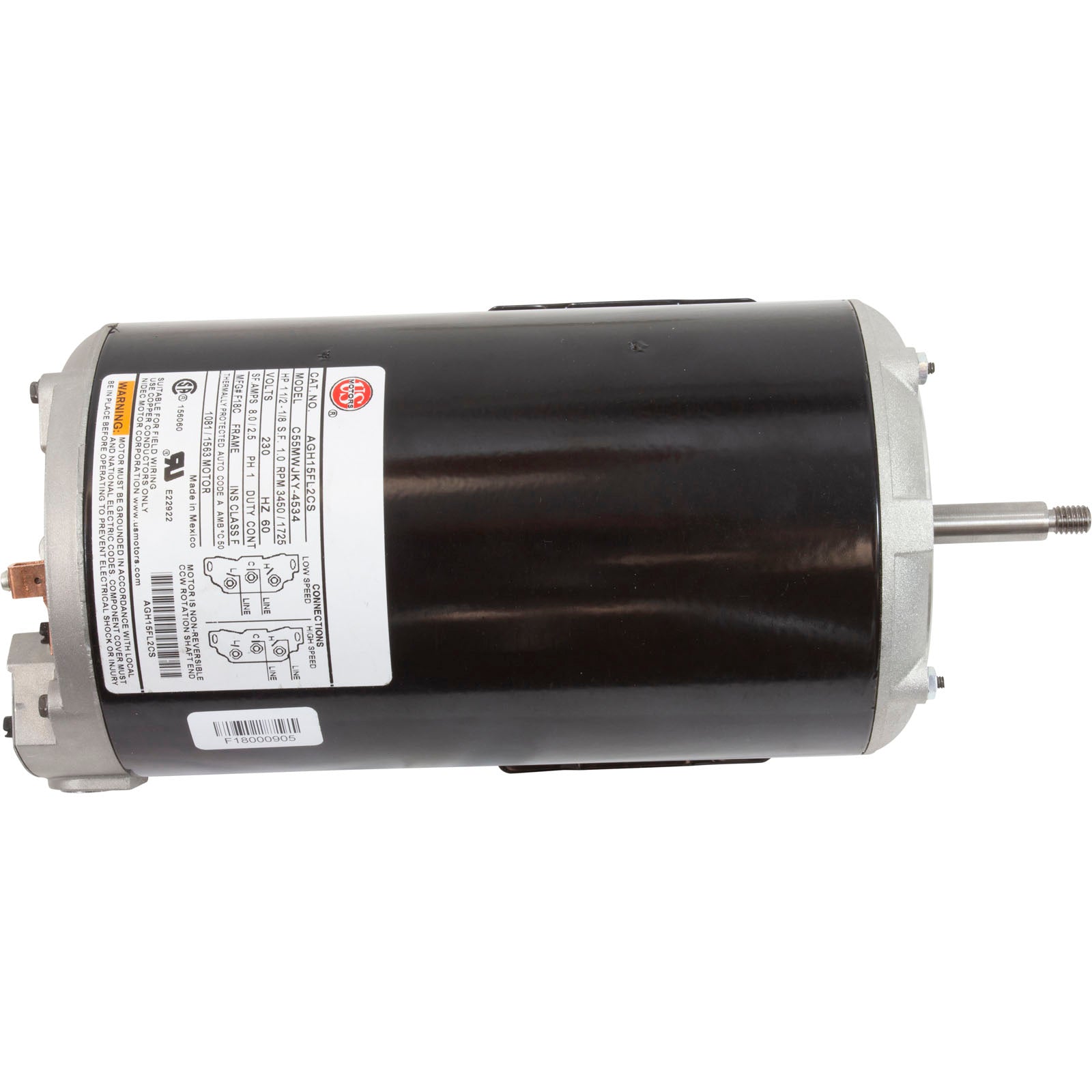

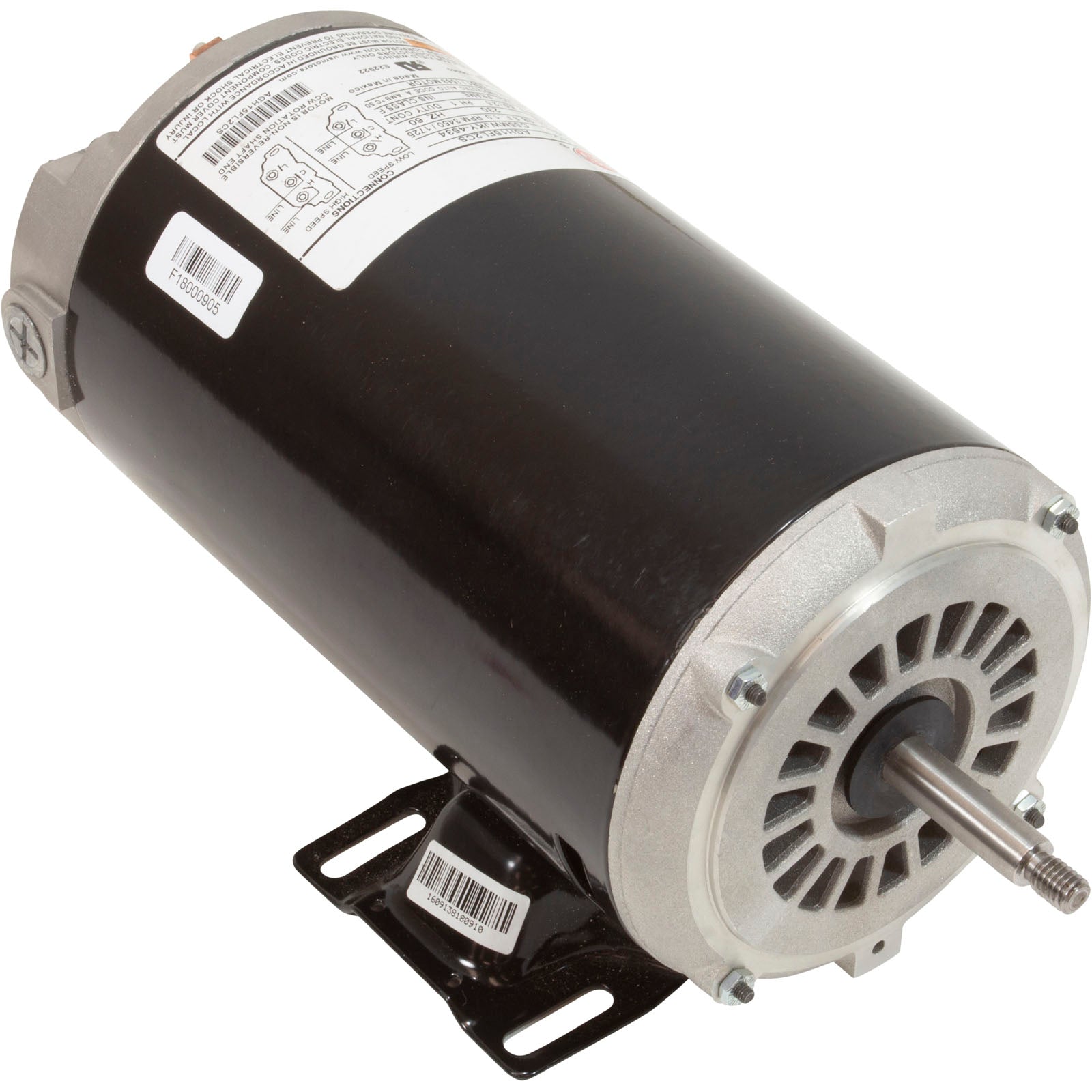

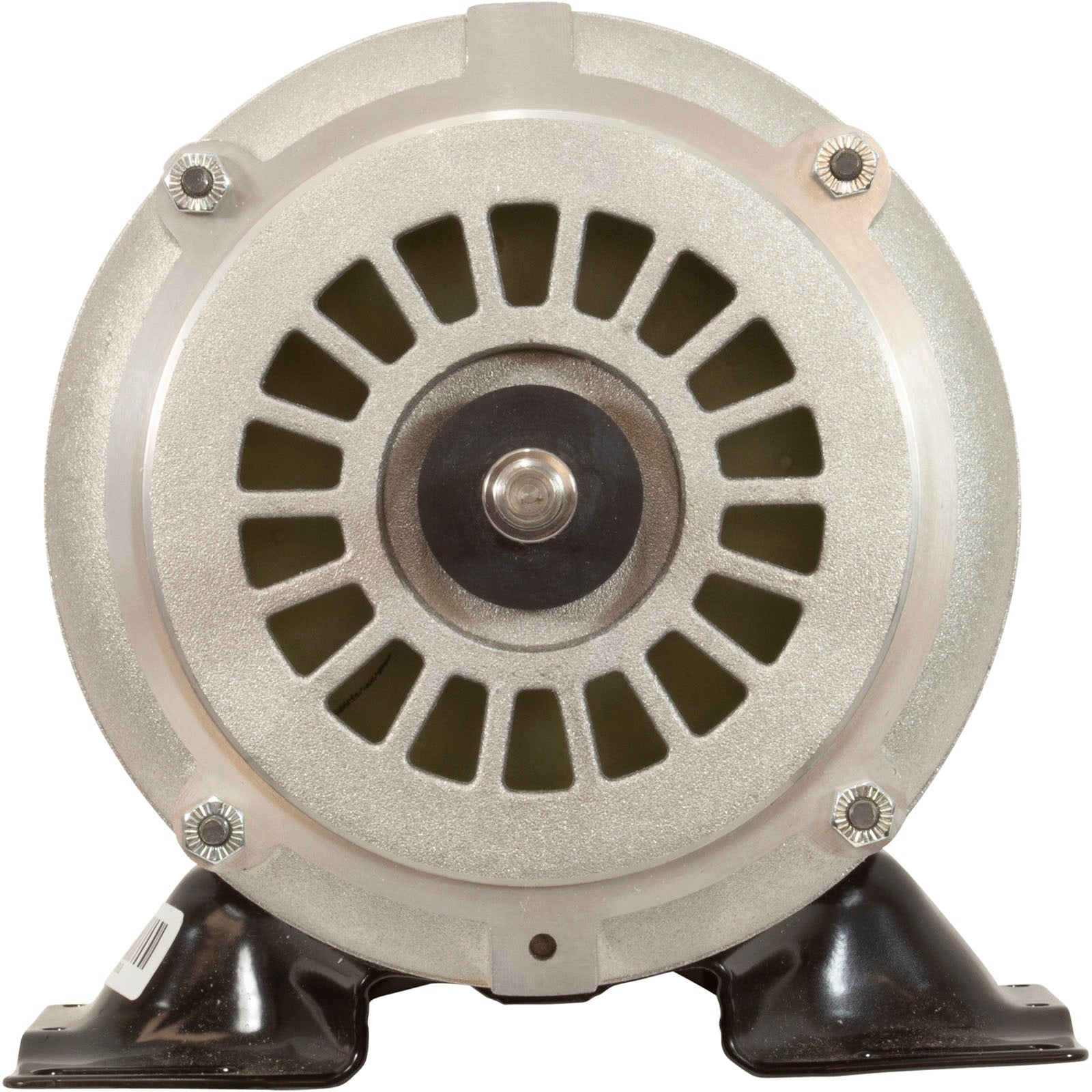

US-Nidec AGH15FL2CS Pool and Spa Motor 1.5 Horsepower 2-Speed 230 Volt 48Y Frame

Product Description

The US-Nidec AGH15FL2CS Pool and Spa Motor provides reliable performance for your pool filtration system. This motor, designed by Nidec Motor Corp/US Motors, has a 1.5 horsepower output and operates at two speeds on a 230-volt supply. It features a 48Y frame size, ensuring compatibility with many pool pumps.

• 1.5 Horsepower output offers strong performance
• Operates on 230 volts
• Two-speed functionality for flexibility

Product Highlights

This pool and spa motor is equipped with a thru-bolt mounting system, making installation simple. The motor's open drip-proof (ODP) enclosure includes a corrosion-resistant shaft, ensuring long-term durability. It has a class F insulation and a continuous duty rating, making it suitable for various pool and spa applications.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: AGH15FL2CS
• Phase: Single
• Voltage: 230
• Frame Size: 48Y

Technical Specifications

• Horsepower: 1.5
• Amperage: 8.0/2.5
• Rotation: CCWSE
• Capacitor Start MFD: 198.00 MFD
• Frame Diameter: 5.5 inches
• Material: Rolled Steel
• Shaft Type: Single
• Bearings Type: Ball / Ball
