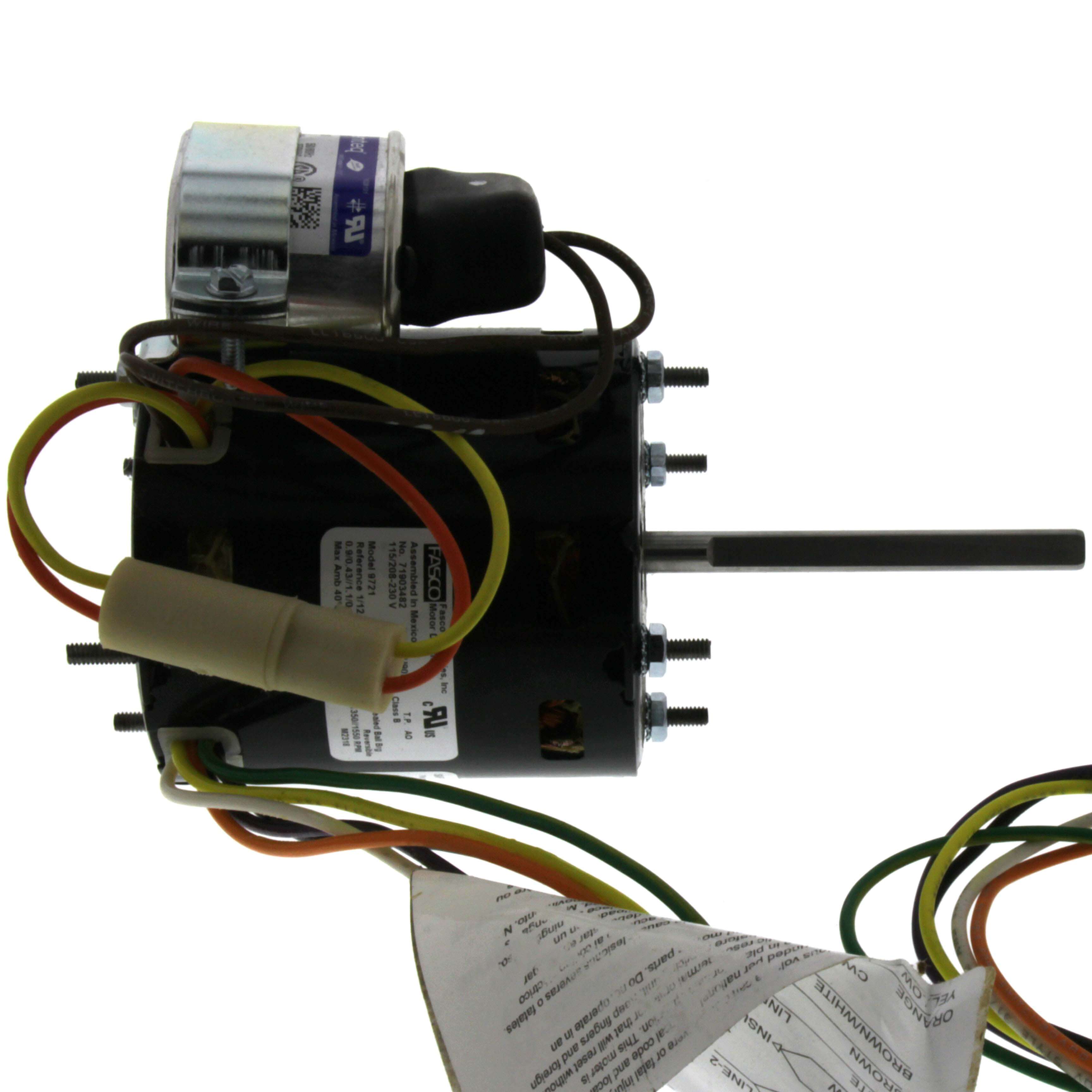

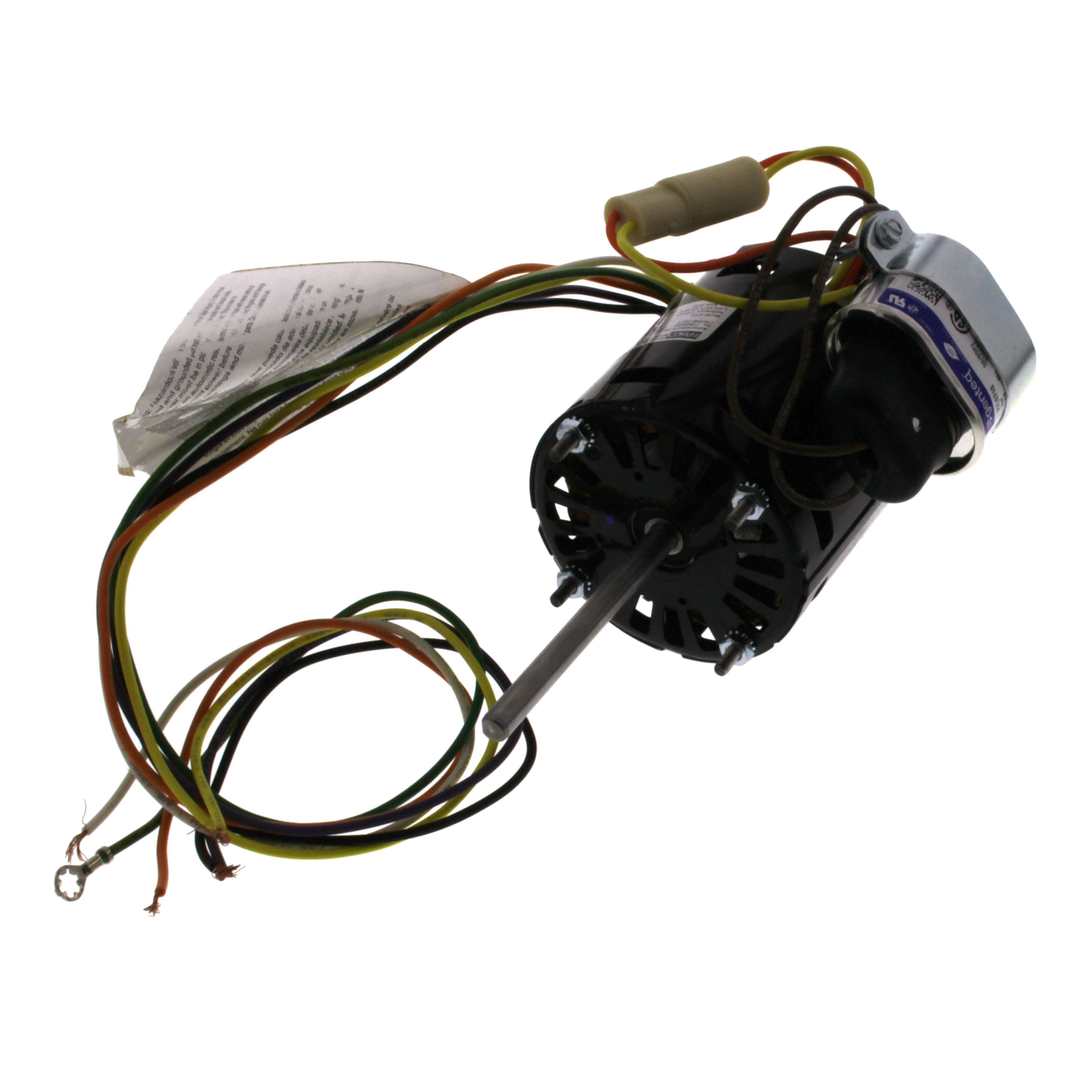

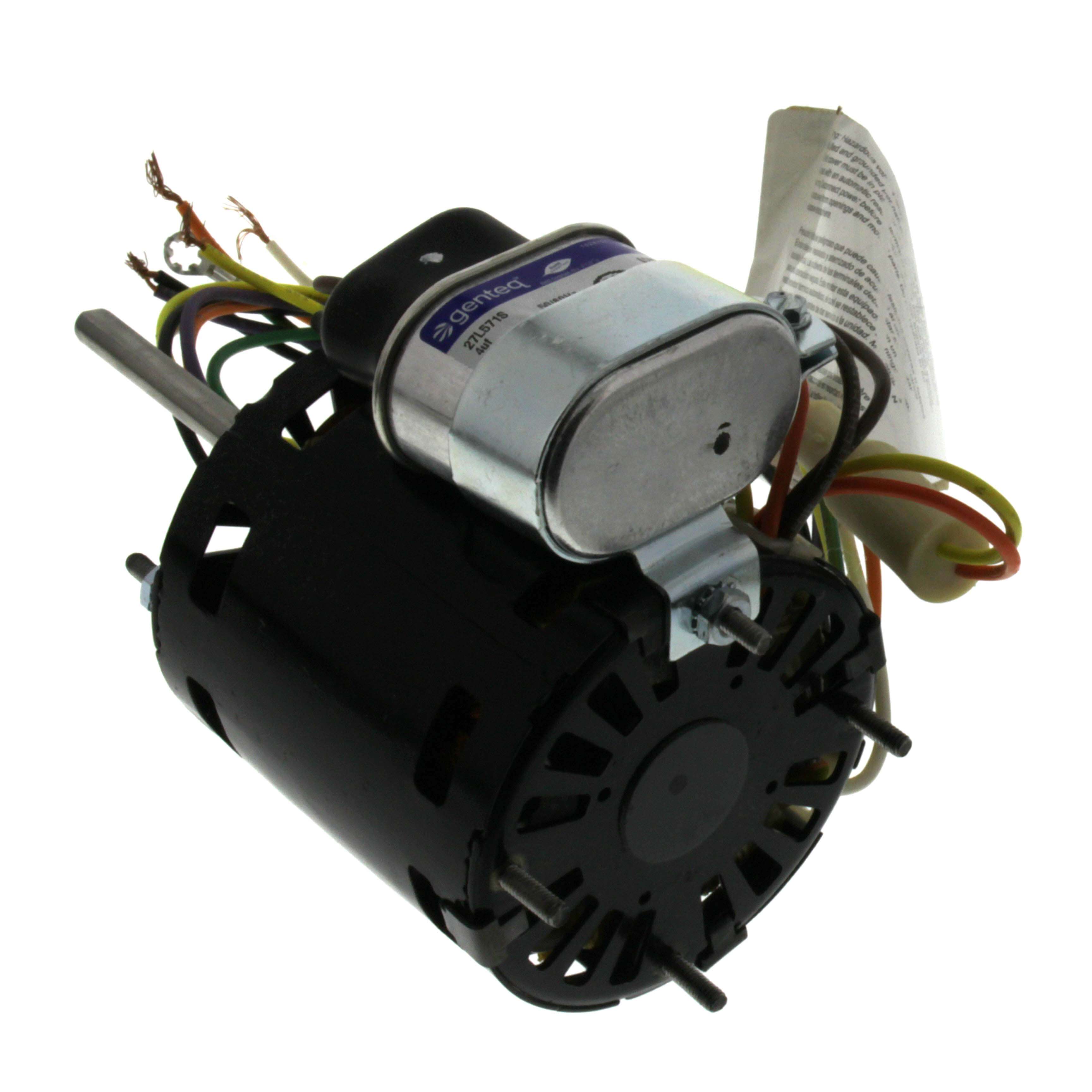

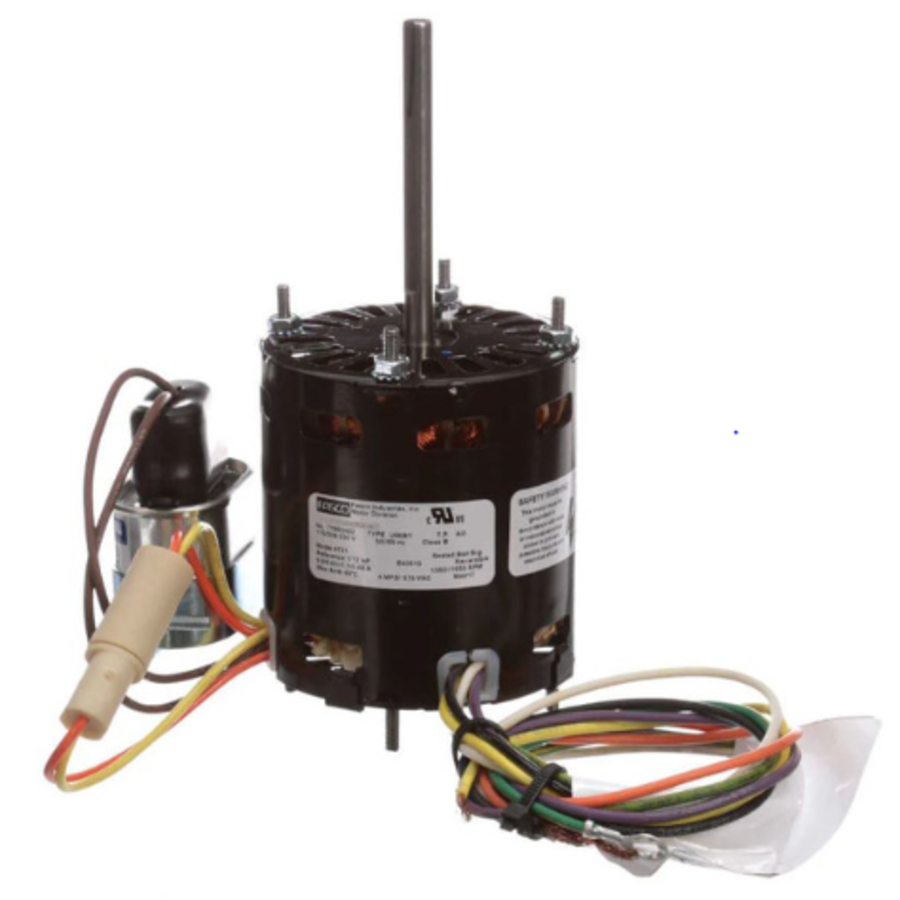

Fasco 9721 Replacement Motor 1/12 HP 1550 RPM 115/208-230V

Product Description

The Fasco Motor 9721 is a replacement motor suitable for HVAC applications. This Fasco motor comes with a permanent split capacitor design, providing enhanced power with reduced amp draw. The motor operates cooler, resulting in fewer failures and an extended lifespan. The ball bearings ensure smooth and quiet operation.

• Permanent split capacitor design
• Ball bearings for smooth operation
• Includes reversing plug and extra mounting nuts

Product Highlights

This motor is thermally protected for automatic safety. It includes a reversing plug for easy rotation changes and extra mounting nuts for efficient installation. It operates at 1550 RPM, suitable for various HVAC applications.

Product Information

Standard Information

• Brand: Fasco
• MPN: 9721
• Voltage: 115/208-230V

Technical Specifications

• Horsepower: 1/12 HP
• RPM: 1550 RPM
• Frame Size: 3.3
• Rotation: Reversible
• Insulation Class: B
• Mounting Type: Stud
• Max Ambient Temperature: 40 Degrees C
• Thermal Protection: Auto
