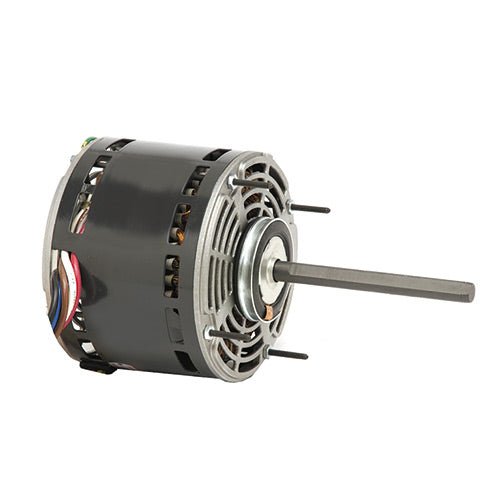

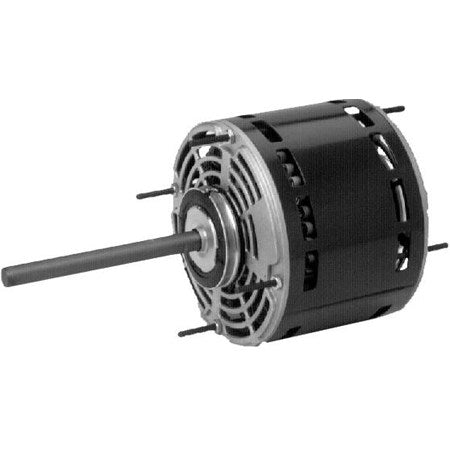

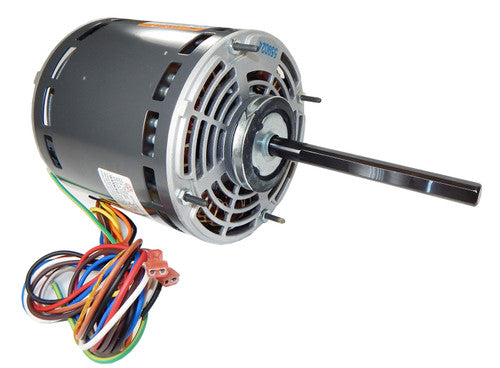

Nidec Motor Corporation 8905 3/4Hp Dd Blowermotor 1075 Rpm 3 Spd Replaces MTR03590

Product Description

The NIDEC MOTOR CORPORATION 8905 is a 3/4HP DD blower motor operating at 230V and 1075 RPM with 3 speeds. Designed for direct drive applications, this motor features a reversible rotation and automatic thermal protection. It is suitable for fan and blower applications requiring a continuous duty motor. Replaces MTR03590.

• Designed for use with 370 VAC capacitor
• Sleeve bearings have all angle throughst system
• Automatic thermal protection

Product Highlights

This 3-speed motor is ideal for direct drive fan and blower applications. It features a rolled steel construction and open air over enclosure.

Product Information

Standard Information

• Brand: NIDEC MOTOR CORPORATION
• Manufacturer Part Number: 8905

Technical Specifications

• Voltage Rating: 208 to 230 V
• Amperage Rating: 4 A
• HP Rating: 3/4 hp
• Speed Rating: 1075 rpm
• Phase: 1 ph
• Frequency Rating: 60 Hz
• Motor Enclosure Type: Open Air Over
• Frame Size: 48Y
• Shaft Size: 1/2 in Dia x 4 in L
• Rotation Type: Reversible
• Number of Speeds: 3
• Bearing Type: Sleeve
• Mounting Type: Hub Ring
• Drive Type: Direct
• Duty Type: Continuous
• Insulation Class: B
• Number of Poles: 6
• Service Factor: 1
• Material: Rolled Steel
• Temperature Rating: 40 deg C
• Power: 3/4 hp
• Speed: 3
• Voltage: 230V
• Shaft: 0.5" x 5.0"
• Motor Case Length: 5.9"
• Mount: Band Mount
• Stud Extensions: No stud extensions
• Motor Type: Permanent Split Capacitor Motor
• Overload Protection: Automatic Overload Protection
• Enclosure: Open Air Over Enclosure
• Ambient Temperature: 40C
• Leads: 24" Leads
• Hertz: 60 Hertz
• KILOWATTS: 0.6
• STATOR DIAMETER: 5.5
• STACK: 2.5
• OPPOSITE END BEARING: 6201
• SHAFT END BEARING: 6201
• BREAKDOWN TORQUE: 86.1
• BREAKDOWN TORQUE UOM: OZFT
• LOCKED ROTOR TORQUE: 17.39
• LOCKED ROTOR TORQUE UOM: OZFT
• LOCKED ROTOR AMPS: 9.65
• FULL LOAD AMPS PRIMARY: 4.0
