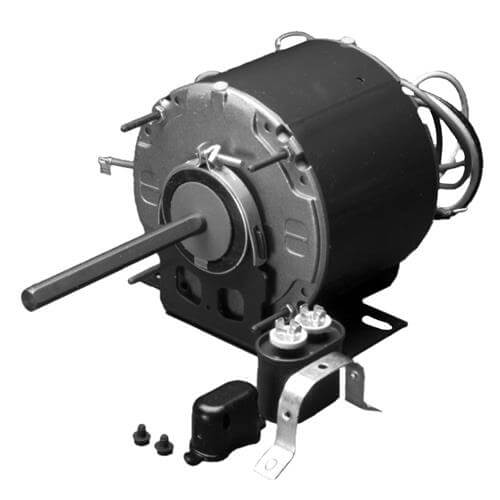

U.S. Motors 6986 HVAC Single Phase Open Resilient Base Motor 1/3 HP 1075 RPM

Product Description

The U.S. Motors 6986 is an HVAC single phase open resilient base motor with a power output of one-third horsepower. Designed for various HVAC applications, this motor runs at a speed of 1200 revolutions per minute. The motor features a voltage rating of 208-230 and operates efficiently in both 50 and 60 Hz conditions. It has a resilient base mount and an open enclosure, which allows for effective cooling during operation.

• 1/3 HP power rating
• Frequency of 50/60 Hz
• Voltage rating of 208-230

Product Highlights

This motor is suitable for a range of HVAC applications, providing reliable performance in demanding environments. Its robust construction ensures durability, while the open design allows for easy airflow.

Product Information

Standard Information

• Brand: U.S. Motors
• Phase: Single Phase

Technical Specifications

• Full Load Amps: 3.5
• Mounting: Resilient Base
• Enclosure: Open
• Voltage Rating: 208-230
• Full Load RPM: 1075 RPM
• Motor Application: HVAC
• Poles: 6
• HZ: 50/60
• Insulation: B
• Thermal Protection: Automatic Reset
• Frame: 48Y
• Weight: 18.1 LB
• EAN or UPC: 786382080709
