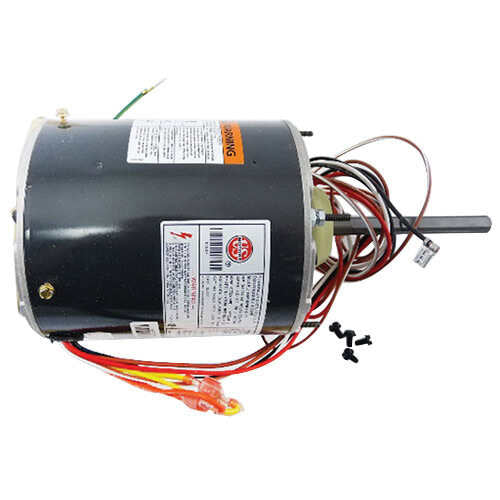

U.S. Motors 5482H HVAC Single Phase TEAO Stud Motor 3/4 HP 208-230V

Product Description

The U.S. Motors 5482H is an HVAC single phase TEAO stud motor. This motor delivers reliable performance and is suitable for various applications within HVAC systems.

• Powerful 3/4 horsepower output
• Operates at 1200 RPM
• Supports voltage ratings of 208-230

Product Highlights

This motor is designed with a TEAO enclosure providing necessary protection while operating in different environments. Its compact frame size of 48Y allows for easy installation in various setups.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: 5482H

Technical Specifications

• Voltage Rating: 208-230
• Motor Application: HVAC
• Insulation Class: F
• RPM: 1200
• Phase: Single Phase
• Frequency: 60 Hz
• Enclosure Designation: TEAO - Totally Enclosed Air Over
• Frame Size: 48Y
• Service Factor: 1
• C Dimension: 11.8 inches
• No. of Poles: 6
• Thermal Protection: Automatic Reset
• Mounting: Stud
• Duty Type: Continuous Duty
• No. of Speeds: 2
• Full Load Amps: 4.5-4
• Full Load RPM: 1075
• Weight: 14.0 lbs
• UPC: 786382080525
