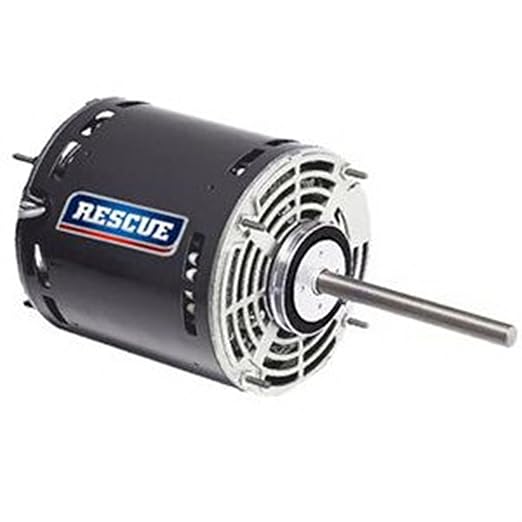

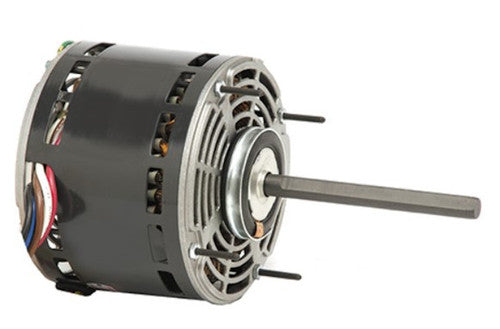

Nidec Motor Corporation 5461 1/2 Multi HP Direct Drive Fan & Blower Rescue Motor 1075 RPM

Product Description

The NIDEC MOTOR CORPORATION 5461 is a 1/2 Multi HP direct drive fan and blower rescue motor operating at 1075 RPM and 208-230V. This US Motors product features copper material and is designed for continuous duty with open air over enclosure and class B insulation. It includes 5 holes in shell for Rheem mount.

• Made in Mexico
• Permanent Split Capacitor Motor
• Automatic Overload Protection

Product Highlights

This NIDEC motor is ideal for direct drive fan and blower applications. It features automatic overload protection and continuous duty operation.

Product Information

Standard Information

• Brand: NIDEC MOTOR CORPORATION
• Manufacturer Part Number: 5461
• Country of Origin: MX

Technical Specifications

• Brand: US Motors
• Speed: 1075 RPM
• Voltage: 208-230V
• Horsepower: 1/2 hp
• Material: Copper
• Manufacturer: NIDEC MOTOR CORPORATION (Emerson / US Motors)
• Amps: 3.6 amps
• Shaft: 0.5" x 5.0"
• Rotation: reversible
• Diameter: 5.6"
• Motor Case Length: 5.312"
• Bearings: Sleeve Bearings
• Mount: Resilient Ring Mount
• Capacitor: 10MFD 370V
• Enclosure: Open Air Over Enclosure
• Insulation: Class B Insulation
• Ambient Temperature: 40C
• Leads: 36"
• Hertz: 60 Hertz
• MPN: K055EGY1146012B
