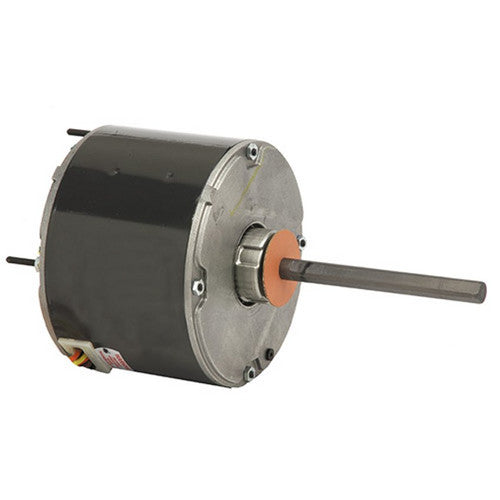

Nidec Motor Corporation 3738 Condenser Fan 1/2 HP 5.6 inches Diameter

Product Description

The NIDEC MOTOR CORPORATION 3738 is a US Motors condenser fan motor. It operates at 1075 RPM and 460 Volts, delivering 1/2 horsepower. This motor features automatic overload protection and is designed for continuous duty. It is suitable for residential and commercial condensing unit fan motor applications.

• Permanent Split Capacitor Motor
• Automatic Overload Protection
• Continuous Duty

Product Highlights

This condenser fan motor is designed for optimal performance in HVAC systems, ensuring reliable and efficient air comfort.

Product Information

Standard Information

• Brand: NIDEC MOTOR CORPORATION
• Manufacturer Part Number: 3738
• Country of Origin: MEX

Technical Specifications

• Brand: NIDEC MOTOR CORPORATION (Emerson / US Motors)
• Speed: 1075 RPM
• Voltage: 460 Volts
• Horsepower: 1/2 hp
• Material: Copper
• Amps: 1.5 amps
• Shaft: 1/2" x 6"
• Rotation: Reversible
• Diameter: 5.6"
• Motor Case Length: 5.9"
• Bearings: Ball bearings
• Capacitor: 10MFD 370V
• Enclosure: Totally Enclosed Air Over Enclosure
• Insulation: Class B Insulation
• Ambient Temperature: 60C
• Leads: 30"
• Motor Type: Permanent Split Capacitor Motor
• Protection: Automatic Overload Protection
• Duty: Continuous Duty
• Motor Phase: 1 ph
• Synchronous Rpm: 1200 rpm
• Frame Size: 48YZ
• Enclosure Type: TEAO (Totally Enclosed Air Over)
• Frequency Rating: 60 Hz
• Base RPM: 1075 rpm
• Mounting Type: Stud
• Thermal Protection: Automatic Reset
• Full Load Current: 1.50 A
• Motor Poles: 6
• Shaft Diameter: 0.5000 in
• Overall Length C Dimension: 12.3 in
• Service Factor: 1.00
• Frame Material: Steel
• Standards Met: NEMA
• Applications: Residential and Commercial Condensing Unit Fan Motors to Meet Manufacturer's Requirements
• Motor Category: Condenser Fan Motor
• Max Allowable Current: 1.5 A
• Torque: 41.58 ft-lbs
• Opposite Drive End Bearing: 6201
