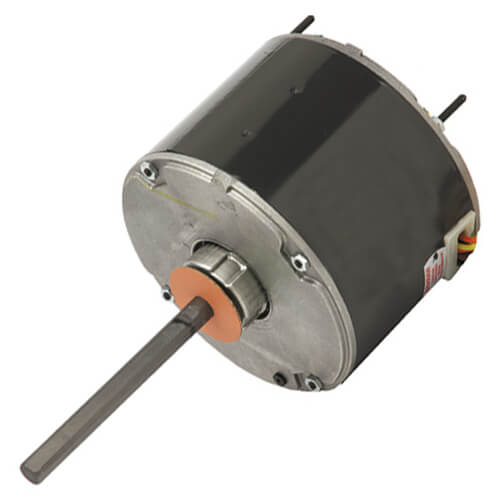

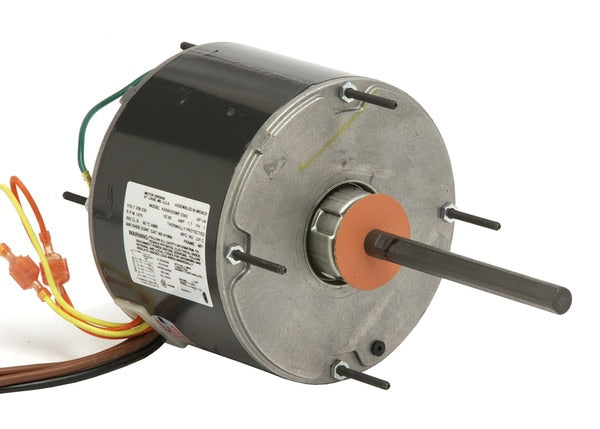

Us Motors 3403 Condenser Fan Motor 1/4 HP

Product Description

The US MOTORS 3403 is a condenser fan motor with a 1/4 HP power rating. It is designed as an OEM replacement fan and blower motor. This motor operates at 1100 RPM and is suitable for use in central air conditioners. It features a 5.6" diameter and is a permanent split capacitor type motor.

• 1100 RPM
• Reversible rotation
• 5.6" Diameter

Product Highlights

This US Motors condenser fan motor is a 1/4 HP replacement motor for Carrier models HC39GE237 and 5KCP39EGS070S.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: 3403
• Country of Origin: United States

Technical Specifications

• Type: Permanent Split Capacitor
• Voltage: 208/230V
• Horse Power: 1/4
• RPM: 1100
• Phase: 1
• Diameter (Inches): 5.6"
• Amperage: 1.8
• Rotation: CCW Shaft End
• Enclosure Type: Open Drip Proof
• Frame: 48Y
• Catalog#: 3403
• Manufacturer: U.S. Motors
• Bearings: Ball
• Capacitor: 5MFD/370VAC
• Hz: 60
• Insulation Class: B
• Manufacturer Model #: K055SWJ7926013B
• Maximum Ambient Temperature: 40° C
• Mounting: Stud
• Number of Speeds: 1
• Service Factor: 1.00
• Thermal Protection: Automatic
• Shaft Diameter: 1/2"
