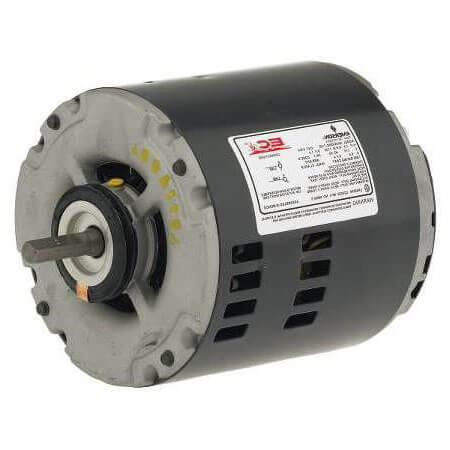

U.S. Motors 2574 HVAC Single Phase ODP Resilient Motor 1 hp 1800/1200 rpm

Product Description

The U.S. Motors 2574 is an HVAC single-phase ODP resilient motor designed for reliable performance in various applications. This motor features a power rating of one horsepower, with operational speeds of 1800 rpm and 1200 rpm. Its resilient mounting ensures stability and longevity even under continuous use.

• Single-phase motor for HVAC applications
• 1 hp and 1/3 hp dual-speed operation
• Open drip-proof design for protection from moisture

Product Highlights

This motor is suitable for HVAC and evaporative cooler applications. Its mechanical design features high-quality materials for durability and efficiency.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: 2574

Technical Specifications

• Full Load Amps: 12.4/6.1
• RPM: 1800 rpm, 1200 rpm
• Insulation: B
• Phase: Single Phase
• Duty: Continuous Duty
• Frame: 56
• Motor Application: HVAC, Evaporative Cooler
• Enclosure: ODP
• Poles: 4/6
• Voltage Rating: 115
• Mounting: Resilient Base, Resilient
• Hz: 60 Hz
• Enclosure Designation: ODP - Open Drip Proof
• Full Load rpm: 1140 rpm, 1725 rpm
• Thermal Protection: Automatic Reset
• C Dimension: 11.8
• Weight: 35.0 LB
• EAN or UPC: 786382002435
