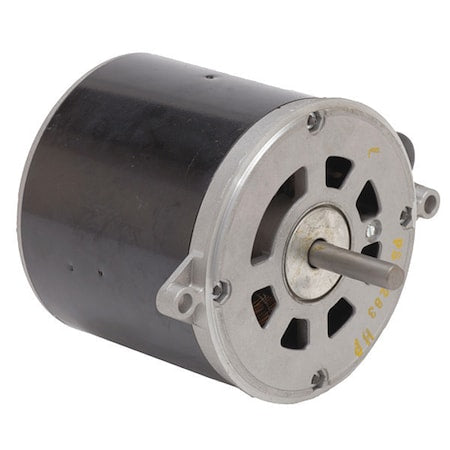

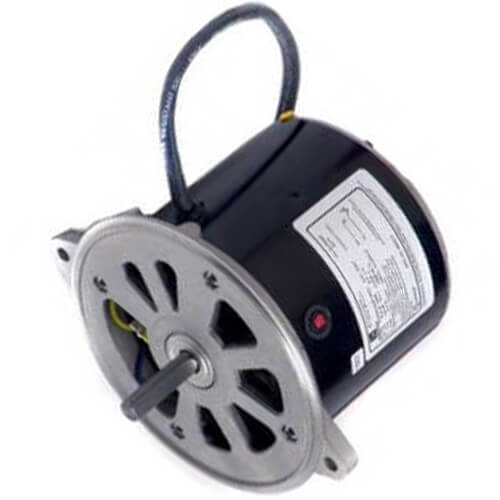

Nidec-US Motors 2319 Motor 1/3 HP 3450 RPM 115V

Product Description

The Nidec-US Motors 2319 motor is a reliable 1/3 HP motor designed for various industrial applications. Operating at 3450 RPM and powered by 115V, this motor fits a 48N frame size, making it both compact and easy to install.

• Efficient 1/3 HP motor
• Operates at 3450 RPM
• Powered by 115V

Product Highlights

The Nidec-US Motors 2319 motor is ideal for pumps, fans, and compressors, providing reliable performance in harsh environments. It features a compact design for easy installation and maintenance and an energy-efficient build to save on power costs.

Product Information

Standard Information

• Brand: Nidec-US Motors
• Model Number: 2319

Technical Specifications

• Horse Power: 1/3
• RPM: 3450
• Frame: 48N
• Voltage: 115V
• Amperage: 4.8
• Rotation: Reversible
• Enclosure Type: Totally Enclosed
• Shaft Diameter: 1/2 inch
• Shaft Length: 2 inches
• Weight: 15 lb
• Max Ambient Temp: 104 Degrees F
• Service Factor: 1
• Thermal Protection: Manual
