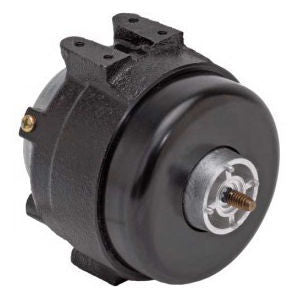

Nidec Motor Corporation 2118 U.S. Motors 2118 9 W 115 V 0.6 A 1550 RPM 1 Phase

Product Description

The U.S. Motors 2118 is a shaded pole fan motor manufactured by Nidec Motor Corporation. This fan motor operates at nine watts and is designed for 115 volts with a current of 0.6 amps. It rotates at 1550 RPM, working efficiently at 50/60 Hz and is suitable for one-phase applications. This model features a body diameter of 3.6 inches and an overall length of 4.3 inches. The motor has a durable cast iron construction and includes essential accessories for installation.

• Permanently lubricated bearings
• Impedance protection
• Includes a 2-foot cord with molded strain relief

Product Highlights

This fan motor is ideal for use in condensing units, air conditioning systems, evaporative coolers, and various furnace applications.

Product Information

Standard Information

• Manufacturer: Nidec Motor Corporation
• Power Rating: 9 W

Technical Specifications

• Voltage Rating: 115 V
• Amperage Rating: 0.6 A
• Speed: 1550 RPM
• Frequency Rating: 50/60 Hz, 1 Phase
• Rotation Type: CCWLE
• Number of Speeds: 1
• Body Diameter: 3.6 Inch
• Overall Length: 4.3 Inch
• Shaft Size: 1/4-20 Dia x 1/2 Inch L
• Bearing Type: Sleeve/Ball
• Mounting Type: Extended Stud/Resilient Rings
• Temperature Rating: 40 deg C
• Insulation Type: Class A Or B
• Enclosure Type: Totally Enclosed Air-Over
• Mounting Position: All Angle
