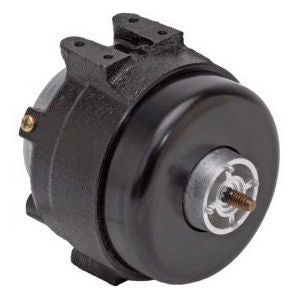

Nidec Motor Corporation 2115 U.S. Motors 2115 Shaded Pole Fan Motor 4 W 115 V 0.3 A 1550 Rpm

Product Description

The Nidec Motor Corporation's U.S. Motors 2115 is a shaded pole fan motor designed for various HVAC applications. It operates on four watts with a voltage of one hundred fifteen volts and an amperage of zero point three. This fan motor achieves a speed of one thousand five hundred fifty revolutions per minute. It is suitable for both sixty hertz and fifty hertz electrical systems and comes with a single rotational direction for easy installation.

• Permanently lubricated bearings provide increased durability.
• Impedance protected design enhances safety in operations.
• Equipped with a two-foot cord featuring molded strain relief.

Product Highlights

This fan motor is ideal for condensing units, evaporative coolers, and various conditioned air systems. It is certified by CSA and listed by UL, assuring compliance with industry standards.

Product Information

Standard Information

• Manufacturer: Nidec Motor Corporation
• Power Rating: 4 W

Technical Specifications

• Body Diameter: 3.6 Inch
• Overall Length: 3.8 Inch
• Shaft Size: 1/4-20 Dia x 1/2 Inch L
• Bearing Type: Sleeve/Ball
• Mounting Type: Extended Stud/Resilient Rings
• Rotation Type: CWLE
• Enclosure Type: Totally Enclosed Air-Over
• Mounting Position: All Angle
• Temperature Rating: 40 deg C
• Insulation Type: Class A Or B
• Number of Speeds: 1
• Voltage Rating: 115 V
• Amperage Rating: 0.3 A
• Frequency Rating: 50/60 Hz, 1 Phase
