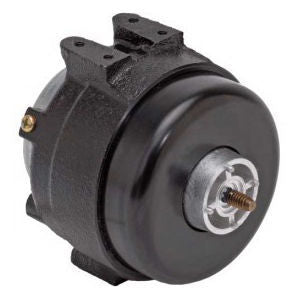

Nidec Motor Corporation 2102 U.S. Motors 2102 Shaded Pole Fan Motor 2.5 W 115 V 0.3 A 1550 Rpm

Product Description

The Nidec Motor Corporation 2102 U.S. Motors shaded pole fan motor is designed for various heating, ventilation, and air conditioning applications. This motor operates at two point five watts with a voltage rating of one hundred fifteen volts and a current rating of zero point three amps. It provides a rotational speed of one thousand five hundred fifty RPM at fifty to sixty hertz. The motor is built in a compact design suitable for tight spaces.

• Shaded pole for efficient motor operation
• Includes a two-foot cord for easy installation
• Built with permanent lubrication for maintenance-free operation

Product Highlights

This motor is ideal for condensing units, evaporative coolers, and furnaces, offering reliable performance in various climatic conditions.

Product Information

Standard Information

• Manufacturer: Nidec Motor Corporation
• MPN: 2102

Technical Specifications

• Type: Shaded Pole
• Power Rating: 2.5 W
• Voltage Rating: 115 V
• Amperage Rating: 0.3 A
• Speed: 1550 RPM
• Frequency: 50/60 Hz, 1 Phase
• Shaft Size: 1/4-20 Dia x 1/2 Inch L
• Body Diameter: 3.6 Inch
• Overall Length: 3.8 Inch
• Temperature Rating: 40 deg C
• Insulation Type: Class A Or B
• Bearing Type: Sleeve/Ball
• Mounting Type: Extended Stud/Resilient Rings
• Rotation Type: CWLE
• Mounting Position: All Angle
• Enclosure Type: Totally Enclosed Air-Over
