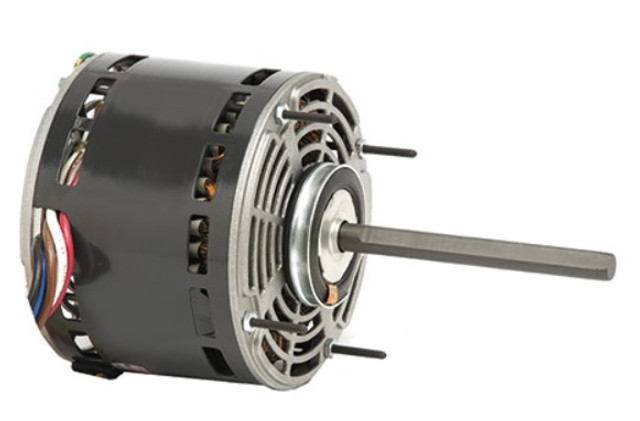

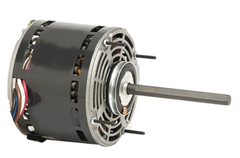

Nidec Motor Corporation 1971 Fan and Blower Motor 1/4 HP 1075 RPM

Product Description

The NIDEC MOTOR CORPORATION 1971 is a 1/4 HP direct drive fan and blower motor. It operates at 1075 RPM and is designed for 208-230V power systems. This motor features reversible rotation and automatic reset thermal overload protection. It is suitable for various applications including industrial machinery and HVAC systems.

• Designed for use with 370 VAC capacitor
• Sleeve bearings have all angle throughst system
• Automatic reset thermal overload protection

Product Highlights

This motor is ideal for direct drive applications requiring reliable performance and thermal protection.

Product Information

Standard Information

• Brand: NIDEC MOTOR CORPORATION
• Manufacturer Part Number: 1971

Technical Specifications

• Brand: NIDEC MOTOR CORPORATION (Emerson / US Motors)
• Horsepower: 1/4 hp
• Speed Rating: 1075 rpm
• Voltage Rating: 208 to 230 V
• Amperage Rating: 1.5 A
• Phase: 1 ph
• Frequency Rating: 60 Hz
• Motor Enclosure Type: Open Air Over
• Frame Size: 48Y
• Shaft Size: 1/2 in Dia x 5 in L
• Rotation Type: Reversible
• Number of Speeds: 3
• Bearing Type: Sleeve
• Mounting Type: Hub Ring
• Drive Type: Direct
• Duty Type: Continuous
• Insulation Class: B
• Number of Poles: 6
• Service Factor: 1
• Temperature Rating: 40 deg C
• Material: Copper
• RPM: 1075
• Speed: 3-Speed
• Voltage: 208-230V
• Amps: 1.5 amps
• Shaft: 0.5" x 5.0"
• Rotation: reversible
• Diameter: 5.6"
• Motor Case Length: 4.9"
• Bearings: Sleeve Bearings
• Mount: Band, Hub, or Stud Mount
• Capacitor: Includes 7.5 MFD capacitor
• Item Number: 1971
