Product Description

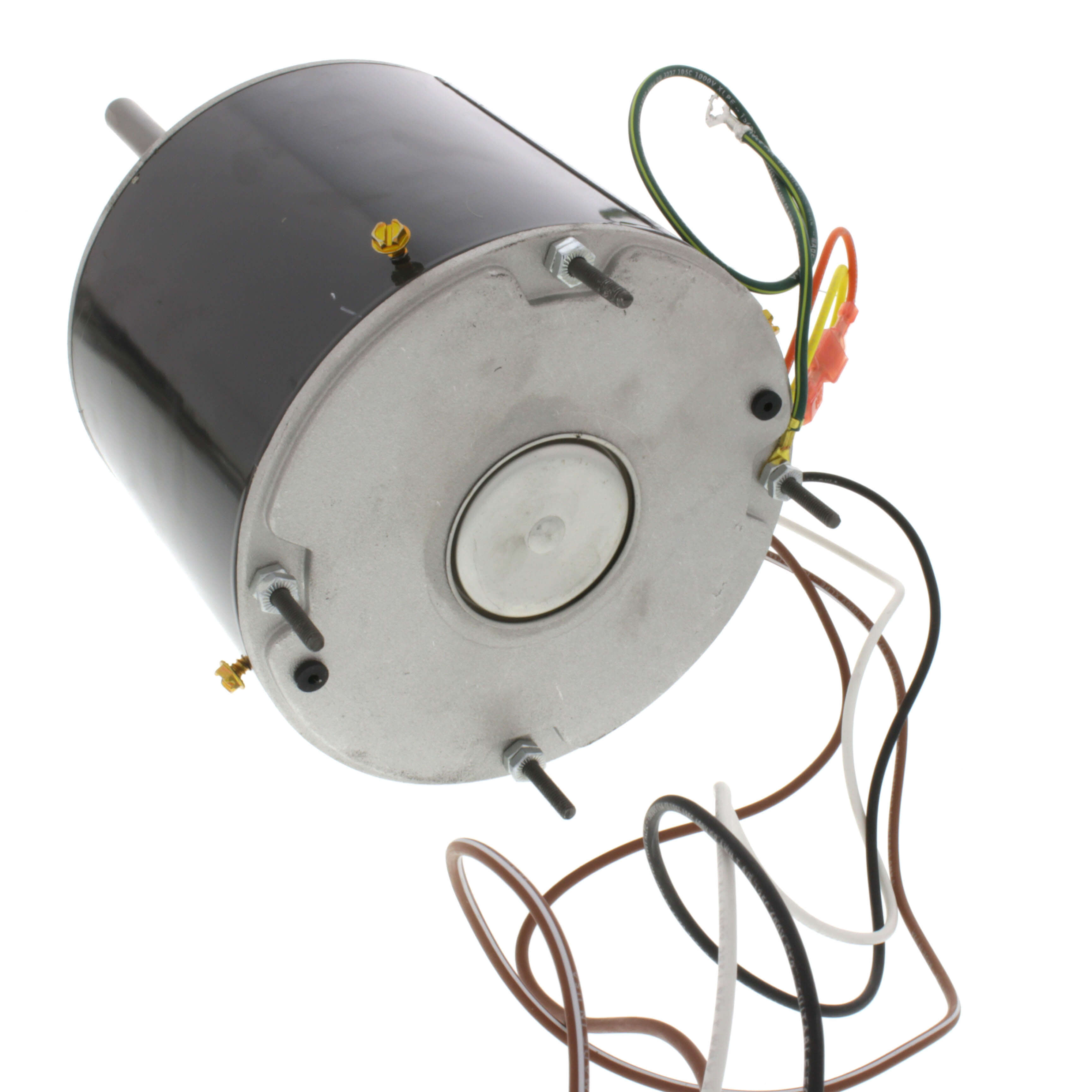

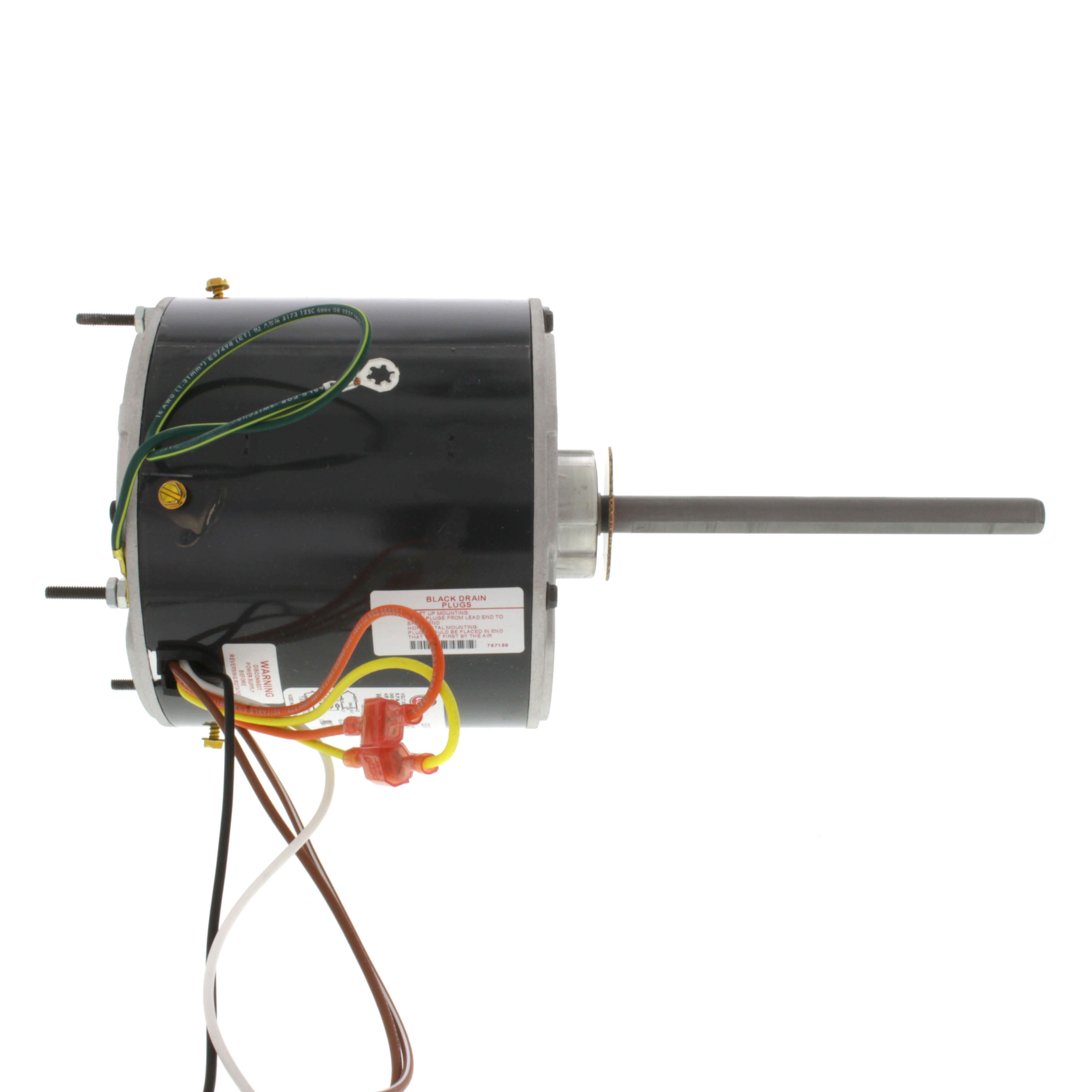

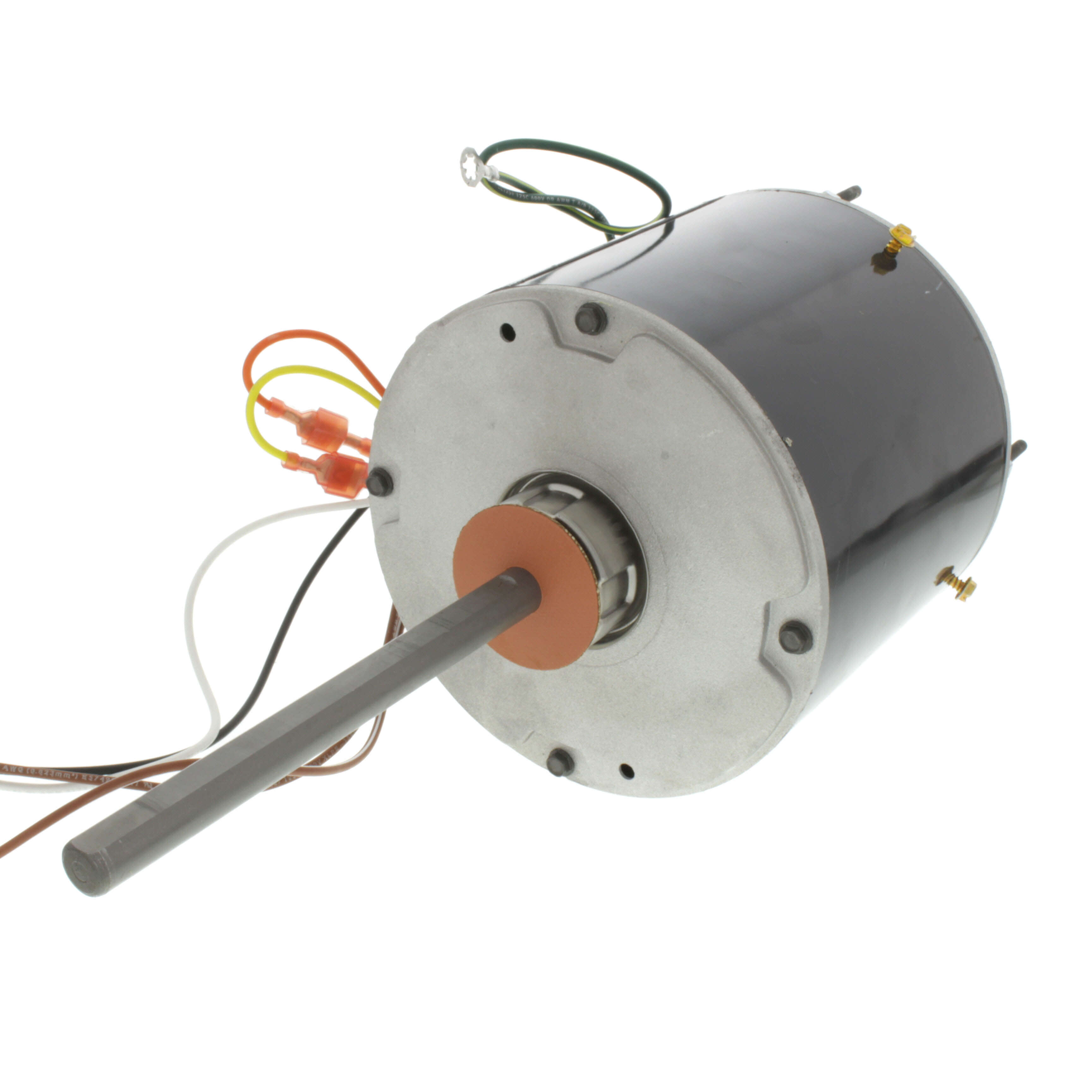

The U.S. Motors 1875H is a single-phase TEAO stud motor designed for HVAC applications. It delivers one third to one fifth horsepower with a speed of 825 RPM, operating efficiently at a voltage rating of 208-230 volts.

  • Features an automatic reset thermal protection.
  • Designed for continuous duty operation.
  • Compact design allows for easy installation in confined spaces.

Product Highlights

This motor supports various setups in HVAC equipment, condensing units, and fan applications, ensuring reliability and effective performance in essential tasks.

Product Information

Standard Information

  • Brand: U.S. Motors
  • MPN: 1875H

Technical Specifications

  • Insulation: F
  • Motor Application: HVAC, Condenser Fan
  • Drive End Bearing: 6203
  • Poles: 8
  • Voltage Rating: 208-230
  • Full Load Amps: 2.4-1.4
  • Hz: 60
  • Enclosure: TEAO
  • Duty: Continuous Duty
  • Full Load RPM: 825
  • Service Factor: 1
  • Phase: Single Phase
  • C Dimension: 11.6 inches
  • Weight: 17.0 LB
  • EAN or UPC: 786382077914
