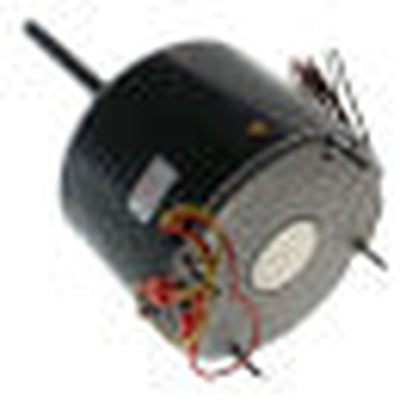

Nidec Motor Corporation 1874 - Condenser Fan Motor - 1/4 HP 208-230/1/60 (825 RPM/1 Speed)

U.S. MOTORS Condenser Fan Motor Permanent Split Capacitor 1/4 hp 208/230 V 2 A 60 Hz 1 Phase 48Y Frame 825 Rpm 1 Speed Reversible Service Factor: 1 Capacitor: 5 u
F 5.6 Inch Body Diameter 10.9 Inch Overall Length 1/2 Inch Dia x 6 Inch L Shaft Ball Bearing Stud Mount Mounting Position: All Angle 58.6% Efficiency 60 deg C Class B Insulation Totally Enclosed Air Over
• Automatic reset thermal overload protector
• Designed for use with 370 V capacitors
• Extended studs
• Hubless lead end
• Drain holes both ends
• Continuous duty
• Sleeve bearings have all angle thrust system
Application: Commercial and Residential
