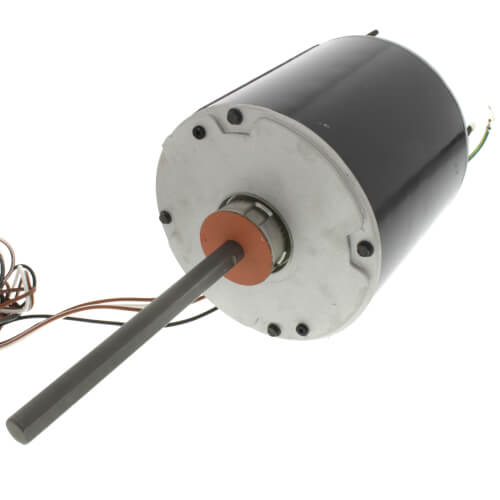

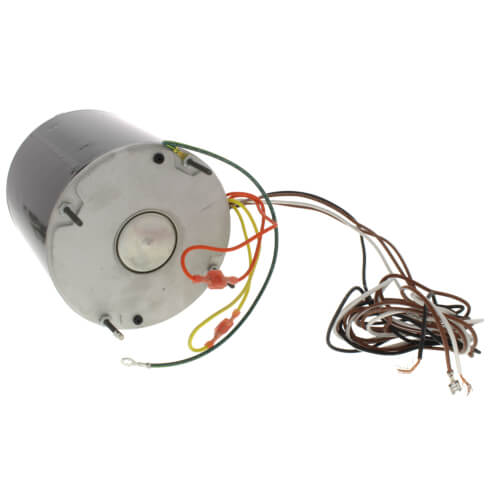

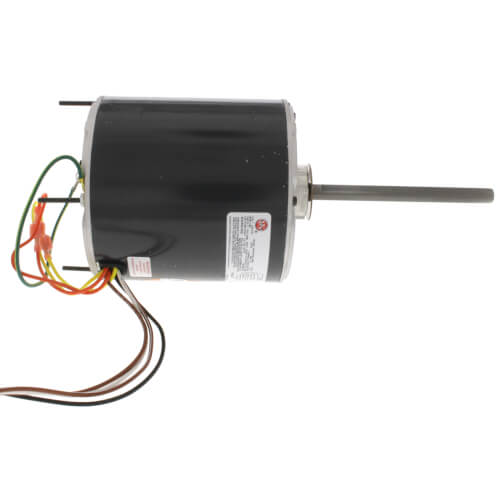

Nidec Motor Corporation 1870H Mojave Heating and Air Conditioning Motor, 1/2 HP, 825 RPM, 208-230 V
In Stock - Ships in 1-2 Business Days
Buy a system bundle and save up to 10%!
SHOP ALL BUNDLES WITH THIS PRODUCT INCLUDED
Secure
Ordering
Easy
Returns
100% Fit
Guarantee
Expert
Advice
Fast
Shipping
Product Information
Motor Phase: 1 ph
Motor Horsepower: 0.50 hp, 1/2 hp
Synchronous RPM: 900 rpm
Motor Supply Voltage: 208 V to 230 V
Frame Size: 48Y
Enclosure Type: TEAO
Frequency Rating: 60 Hz
Mounting Type: Stud
Base RPM: 825 rpm
Duty / Condition Type: Continuous Air Over
Thermal Protection: Automatic Reset
Full Load Efficiency: 64.1 %
Motor Poles: 8
Overall Length (C-Dimension): 12.3 in
NEMA Design Class: N
Service Factor: 1
Frame Material: Steel
Insulation Class: F
Weight: 17 lb
Maximum Allowable Current: 3.3 A
Product Type: AC Motors
Torque: 50.89 ft-lbs
