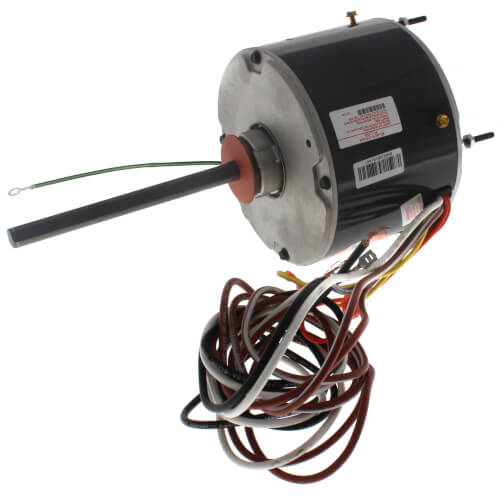

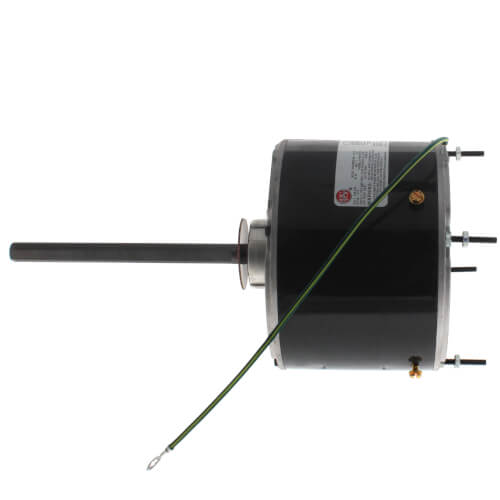

U.S. Motors 1860H HVAC Single Phase TEAO Stud/Band Motor 1/4 HP 1075 RPM

Product Description

The U.S. Motors 1860H is an HVAC Single Phase TEAO Stud/Band Motor with a power rating of one fourth horsepower. This motor operates at a speed of one thousand seventy-five RPM. It is suitable for a range of heating, ventilation, and air conditioning applications.

• Operates at 208-230 volts
• Features automatic thermal reset protection
• Designed for continuous duty applications

Product Highlights

The U.S. Motors 1860H motor is built for reliability and efficiency in HVAC systems. It supports various mounting options and includes an enclosure designed to handle air over cooling.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: 1860H

Technical Specifications

• Duty: Continuous Duty
• HP: 1/4
• RPM: 1200
• Voltage Rating: 208-230 Volts
• Phase: Single Phase
• Enclosure: TEAO - Totally Enclosed Air Over
• Full Load Amps: 1.7
• Weight: 11.0 LB
• Frame: 48Y
• Mounting: Stud, Stud/Band
