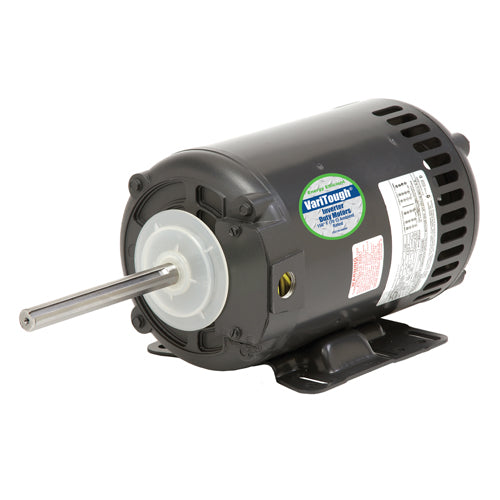

U.S. Motors 1831VG HVAC Three Phase OPAO Horizontal - Footed Motor

Product Description

The U.S. Motors 1831VG is a three-phase horizontal footed motor designed for HVAC applications. This motor has a power rating of one and a half horsepower and operates at eight hundred and fifty RPM. It is suitable for various industrial uses due to its robust design and reliable performance.

• Continuous duty rating for reliability
• Compatible with a voltage range of two hundred and eight to four hundred and sixty volts
• Open proof air-over (OPAO) enclosure for better cooling

Product Highlights

This motor is engineered for HVAC applications and is ideal for use in condensing units and air handling systems. Its three-phase power allows for efficient operation in demanding environments.

Product Information

Standard Information

• Duty: Continuous Duty
• Poles: 8

Technical Specifications

• Full Load Amps: 6.6-6.2/3.1
• Hz: 60 Hz
• Full Load RPM: 850 RPM
• Enclosure Designation: OPAO
• Service Factor: 1.15
• Mounting: Horizontal - Footed
• Voltage Rating: 208-230/460
• Full Load Efficiency: 74%
• Frame: 56HZ
• Phase: Three Phase
• Insulation: F
• Weight: 63.0 LB
• EAN or UPC: 786382104122
