Product Description

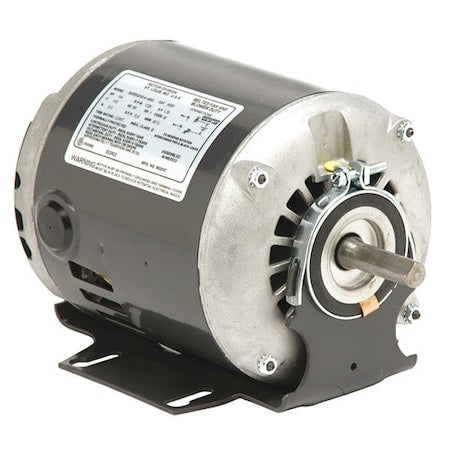

The U.S. Motors 1789 is a robust belt drive motor designed for single-phase applications. This motor supports 1/3 HP and operates at speeds of 1725 and 1425 RPM. It is constructed with a 48 frame and operates at 230V AC, making it ideal for various HVAC and blower operations.
- Suitable for HVAC and blower applications
- Continuous duty cycle
- Includes auto thermal protection
Product Highlights
The U.S. Motors 1789 belt drive motor is designed for continuous duty and features a robust steel frame. It includes auto thermal protection and operates within a 104-degree Fahrenheit max ambient temperature. Ideal for horizontal mounting positions.
Product Information
Standard Information
-
Brand: U.S. Motors
-
MPN: 1789
Technical Specifications
-
Item: Belt Drive Motor
-
HP: 1/3
-
RPM Range: 1,701-1,800
-
Voltage: 230V AC
-
Phase: Single
-
Motor Design: Split-Phase
-
Nameplate RPM: 1,725/1,425
-
Body Diameter: 5 3/5 inches
-
Shaft Diameter: 1/2 inch
-
Shaft Length: 1 281/500 inches
-
Motor Frame Material: Steel
-
Ins. Class: A
-
Full Load Amps: 2.9
-
No. of Speeds: 2
-
Max. Ambient Temp.: 104 Degrees F
-
Motor Shaft Rotation: CCWLE
-
Motor Enclosure Design: Open Dripproof
-
Motor Mounting Type: Cradle Base
-
Motor Mounting Position: Horizontal
-
Duty Cycle: Continuous
-
Nominal Efficiency: 64.6%
-
Extended Thru-Bolts: Yes
-
Usable @ 200V: No
-
Usable @ 208V: No
-
Motor Bearings: Ball
-
Overall Length: 10 43/100 inches
-
Length Less Shaft: 8 7/8 inches
-
Resilient Ring Diameter: 2 1/2 inches
-
Ring to Ring Center: 4 3/16 inches
-
Motor Service Factor: 1.35
-
Motor Shaft Design: Flat
-
Motor Sub Application: Belt Drive Fans/Blowers
-
Motor Application: HVAC/R
-
Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
-
Includes Shaft Bushing: No
-
Manufacturers Warranty Length: 1 yr
-
Country of Origin (subject to change): Mexico
