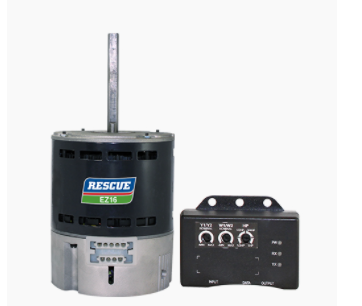

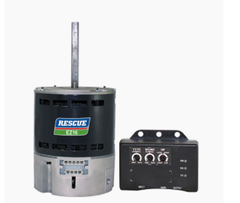

Nidec 5860 motor DD ECM 1 to 1/3hp EZ-16

Product Description

The NIDEC 5860 motor is a fan and blower motor application. It operates at 115/208 to 230 V, with an amperage of 12.1/7.6 to 7.1 A and a frequency of 50/60 Hz. This motor features a 48Y frame, reversible rotation, and ball bearings. It is designed with an open air over enclosure and band mounting.

• Features auto-rotation sensing and 24 VAC tap inputs.
• Designed for constant torque applications.
• Suitable for NEMA 48 environments.

Product Highlights

This motor is a versatile solution for fan and blower applications, offering adjustable airflow and compatibility with various systems.

Product Information

Standard Information

• Brand: NIDEC
• Manufacturer Part Number: 5860
• Country of Origin: United States

Technical Specifications

• Brand: Nidec/Emerson
• Amperage Rating: 12.1/7.6 to 7.1 A
• Application Type: Fan & Blower Motor
• Bearing Type: Ball
• Enclosure Type: Open Air Over
• Frame: 48Y
• Frequency Rating: 50/60 Hz
• Horsepower: 1 to 1/3 hp
• Insulation Class: Class B
• Manufacturer Name: Nidec Motor Corporation
• Mounting Type: Band
• Number of Speeds: 1
• Phase: 1 ph
• Rotation: Reversible
• Shaft Size: 1/2 x 5 in
• Speed: 1075 rpm
• Voltage Rating: 115/208 to 230 V
