Nicor EDC1120WH1 EDC single-gang electronic door chime 120VAC 2W 4.65 x 3.15 x 1.7 in

Product Description

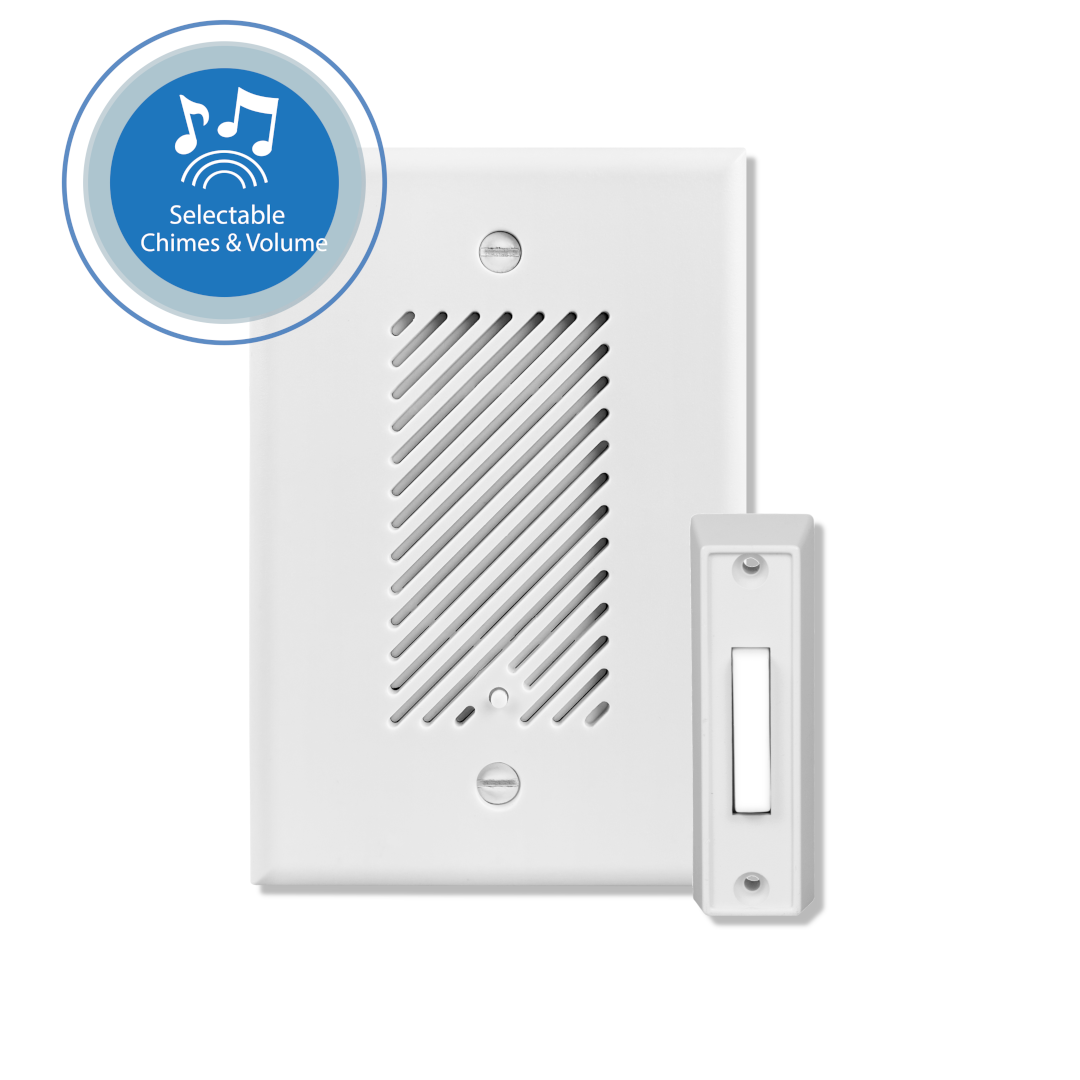

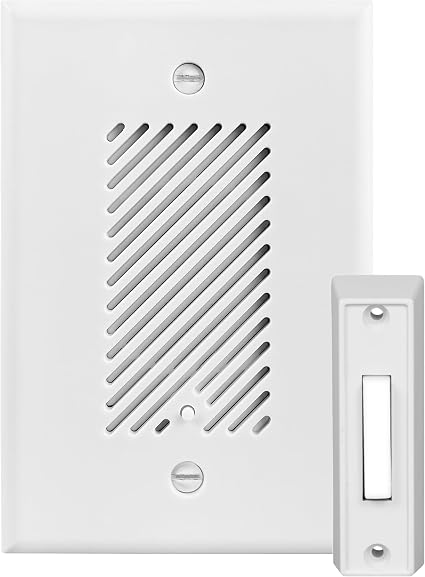

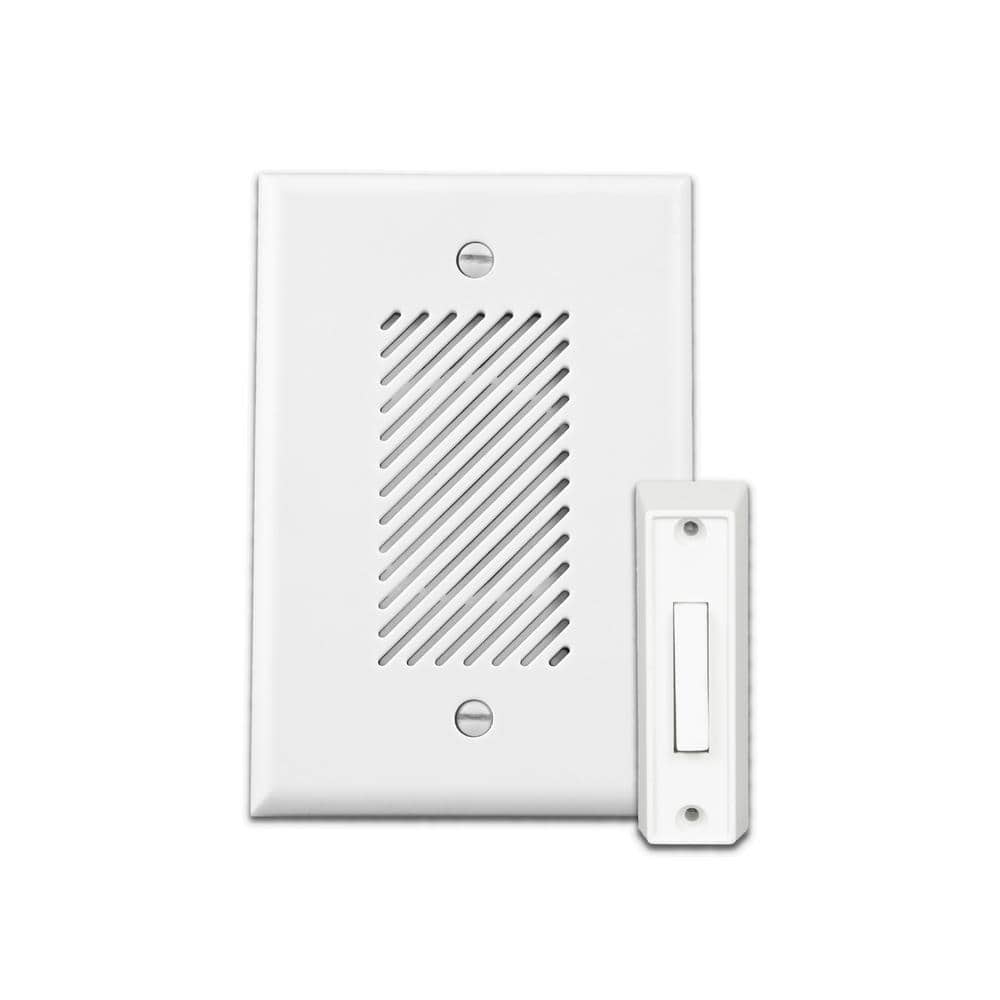

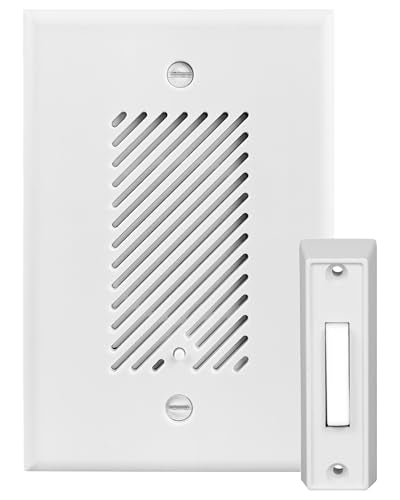

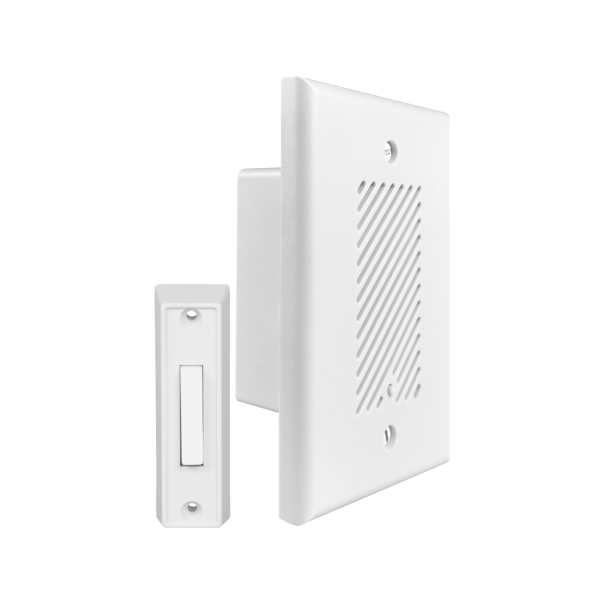

The NICOR EDC1120WH1 Electronic Door Chime is a doorbell chime kit designed for both new construction and retrofit installations. This patent-pending unit fits most non-metallic single-gang junction boxes, combining line and low voltage in one compact device. It features selectable chime tones, adjustable volumes, and a paintable faceplate for seamless integration. The kit includes a lighted doorbell button for enhanced visibility.

• Features five selectable chime tones and five adjustable volume levels for customization.
• Patent-pending design allows installation in most standard non-metallic single-gang junction boxes.
• Combines line and low voltage in a single unit with multiple connectors for front and back doorbells.

Product Highlights

Integrated electronic doorbell chime with selectable tones, adjustable volume, and lighted button for easy installation in single-gang boxes.

Product Information

Standard Information

• Brand: NICOR
• Manufacturer Part Number: EDC1120WH1

Technical Specifications

• MPN: EDC1120WH1
• Included Components: Electronic Door Chime, Installation Guide, Lighted Push Button
• Category: Specialty Door Chimes
• Manufacturer: NICOR Lighting
• Weight: 4 ounces
• Dimensions: 4.65 x 3.15 x 1.7 inches
• Model Number: EDC1120WH1
• Finish: Matte
• Material: ABS
• Shape: Rectangular
• Input Voltage: 120VAC
• Output Voltage: 5VDC
• Wattage: 2W
• Batteries Required: No
• Certifications: UL Listed, cUL Listed, FCC Class B
• Classification: Pushbuttons & Chimes
