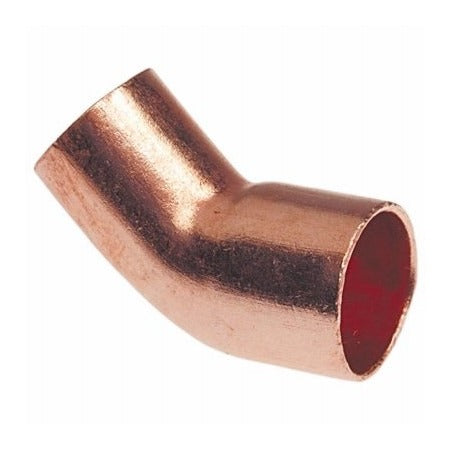

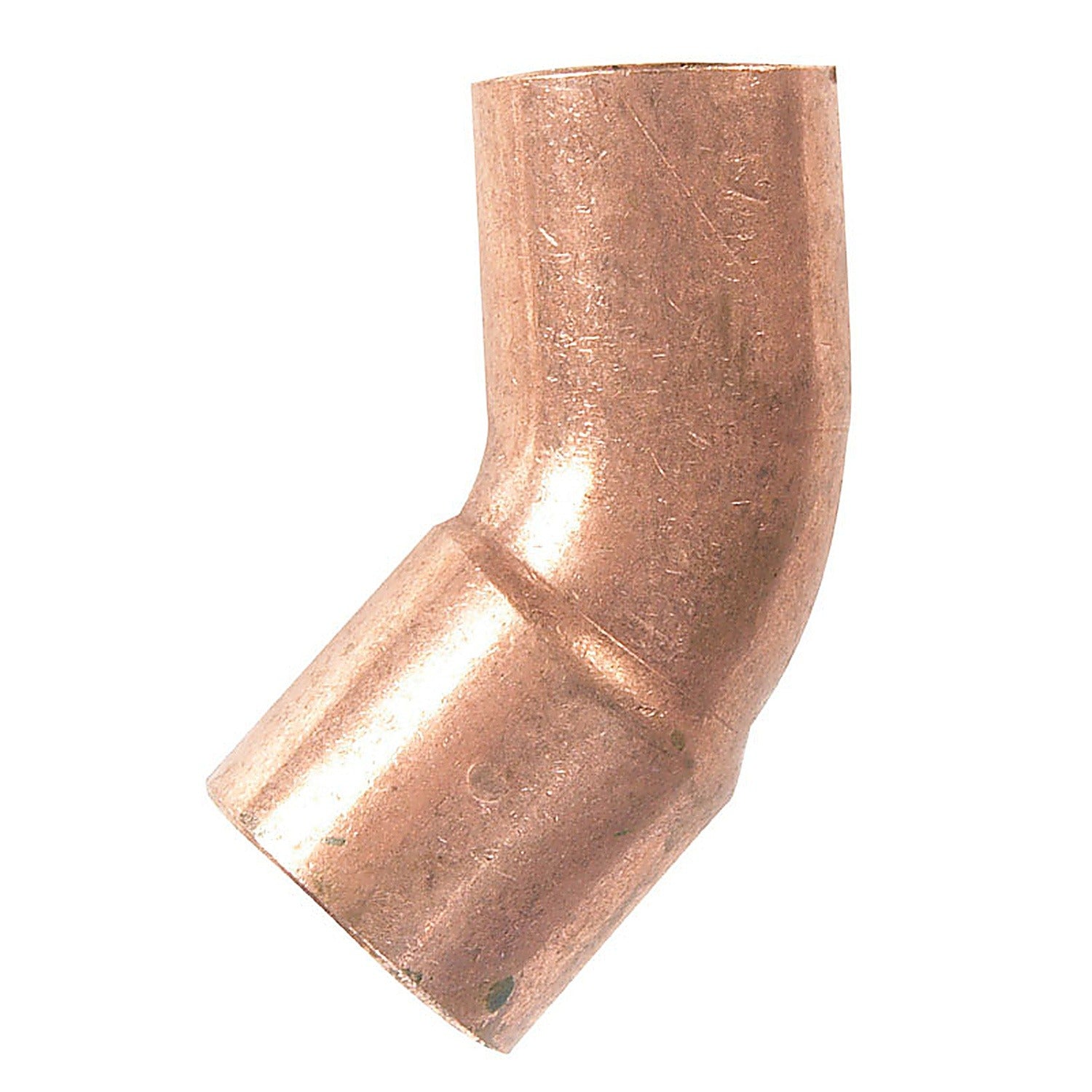

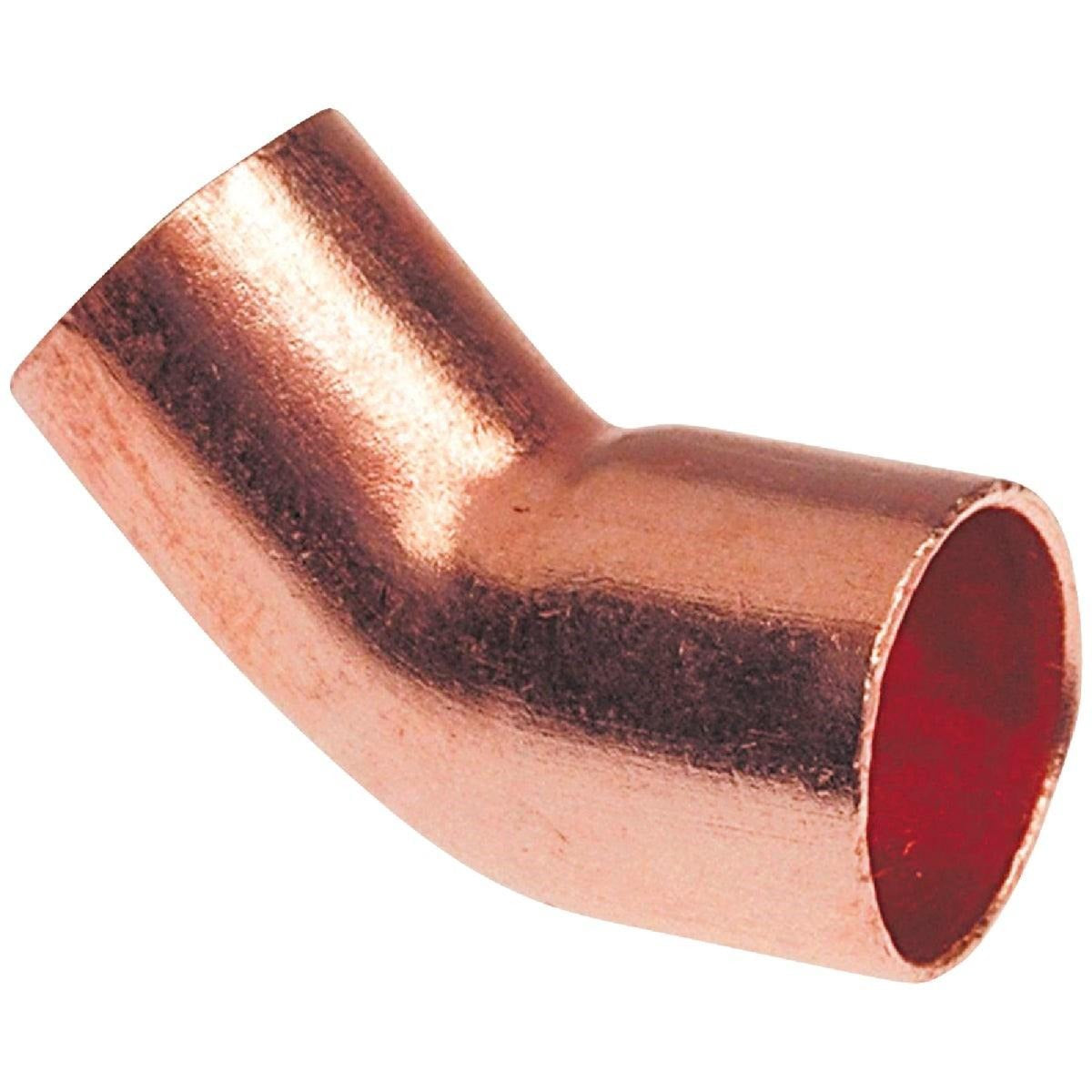

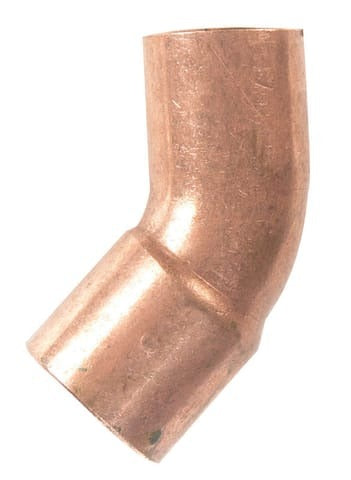

Nibco W01410C 3/4 In. 45 Deg Copper Street Elbow (1/8 Bend)

NIBCO
Brand: NIBCO
SKU: W01410C
Availability: In Stock
Ships in 3 - 4 Business Days
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Nibco W01410C is a 3/4 in. copper 45-degree street elbow for plumbing systems, specified as a 1/8 bend. The fitting provides a means to change pipeline direction by 45 degrees and features a solder cup connection for sweat installation. It is lead-free and suitable for potable water, HVAC and refrigeration applications, with a maximum working pressure of 582 psi and maximum operating temperature of 400 deg F.

  • 3/4 in. nominal size with 45 degree street elbow configuration and 1/8 bend specification
  • Sweat x FTG (solder cup) connection; inlet male solder, outlet female solder
  • Lead-free copper construction; certified to NSF/ANSI 61 and 372; pressure rating 582 psi, max temp 400 deg F

Product Highlights

3/4 in. copper 45-degree street elbow with solder cup connections, lead-free construction, NSF certified, 582 psi pressure rating.

Product Information

Standard Information

  • Brand: NIBCO
  • Manufacturer Part Number: W01410C
  • Country of Origin: United States
Technical Specifications
Brand
NIBCO
Manufacturer Part Number
W01410C
Product Type
Copper street elbow
Size
3/4 in.
Angle
45 deg
Bend Specification
1/8 Bend
Connection Type
FTG x C (solder cup) / Sweat x FTG
End 1 Type
Sweat (male solder)
End 2 Type
Sweat (female solder)
Material
Copper
Alloy
U6062 (as specified in source)
Lead Free
Yes
Maximum Working Pressure
582 psi
Maximum Operating Temperature
400 deg F
Minimum Working Temperature
-20 deg F
Operating Temperature Range
-20 to 400 deg F
Compatible Pipe Material
Copper, Bronze, Brass
Certifications
NSF/ANSI 61 and 372
Standards
ASME B16.22; MSS SP-104
Dimensions (Length x Width x Depth)
2.50 in. x 0.95 in. x 1.59 in.
Weight
0.09 lb
Number in Package
1
Unit of Measure
Each
UPC
39923312020
Country of Origin
United States
Manufacturing Standard
ISO 9001 (facility certified)
Application
Plumbing; potable water, air conditioning and refrigeration
