Description

Product Description

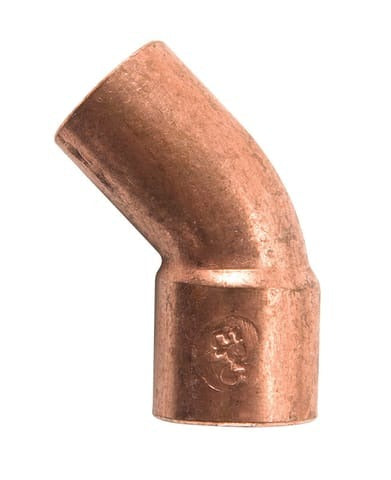

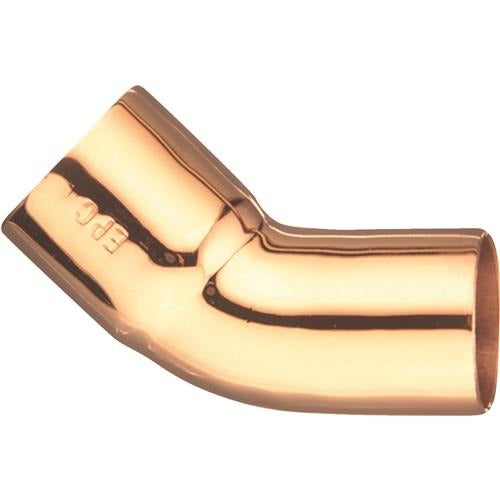

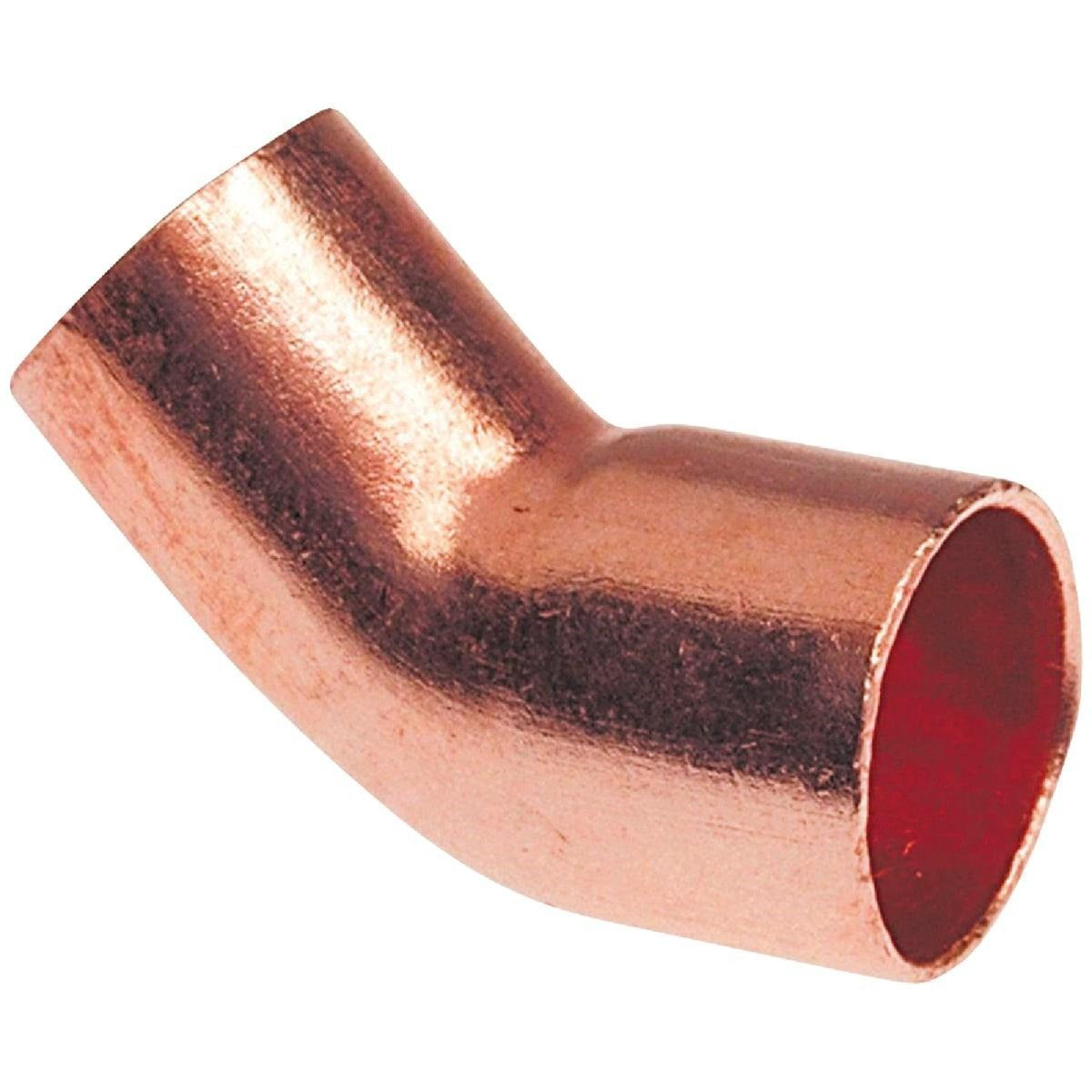

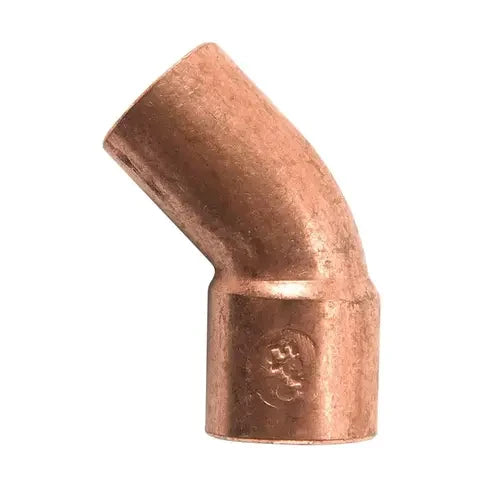

Nibco W01400D is a 1/2 in. copper 45-degree street elbow designed to change pipe direction with a 1/8 bend. The fitting provides a male (spigot) and female (hub) solder connection (sweat x FTG) and includes solder cups for soldered joints. It is lead-free and compatible with copper, bronze, and brass piping, and is produced to industry standards for potable water and HVAC applications.

  • 1/2 in. nominal size, 45-degree street elbow with 1/8 bend and solder cups
  • Sweat x FTG connections: male (spigot) inlet and female (hub) outlet for soldered joints
  • Lead-free copper construction; compatible with copper, bronze, and brass; certified to NSF/ANSI and manufactured to ASME/MSS standards

Product Highlights

1/2 in. copper 45° street elbow (1/8 bend), sweat x FTG connections, lead-free, NSF/ANSI and ASME/MSS certified

Product Information

Standard Information

  • Brand: NIBCO
  • Manufacturer Part Number: W01400D
  • Country of Origin: United States
Technical Specifications
Brand
Nibco
Manufacturer Part Number
W01400D
Product Type
45 Degree Street Elbow
Material
Copper
Alloy
C12200 (commercially pure copper) — per ASTM B75 reference (C6062 removed as incorrect)
Nominal Size
1/2 in.
Angle
45 deg
Bend Specification
1/8 bend (short radius)
Connection Type
Sweat x FTG (solder/sweat) with solder cups
End 1 Gender
Male (spigot)
End 2 Gender
Female (hub)
Lead Free
Yes
Compatible Pipe Material
Copper; Bronze; Brass
Certifications and Standards
NSF/ANSI 61; NSF/ANSI 372; ASME B16.22; MSS SP-104; NFPA 99 (as referenced)
Maximum Working Temperature
400 F
Minimum Working Temperature
33 F (flagged — low confidence)
Maximum Working Pressure
722 psi (flagged — medium confidence)
Actual Length
1.62 in.
Actual Width
0.69 in.
Actual Depth
1.09 in.
Weight
0.044 lb
Package Quantity
1 (Each)
Unit of Measure
Each
UPC
39923311948
Country of Origin
United States
