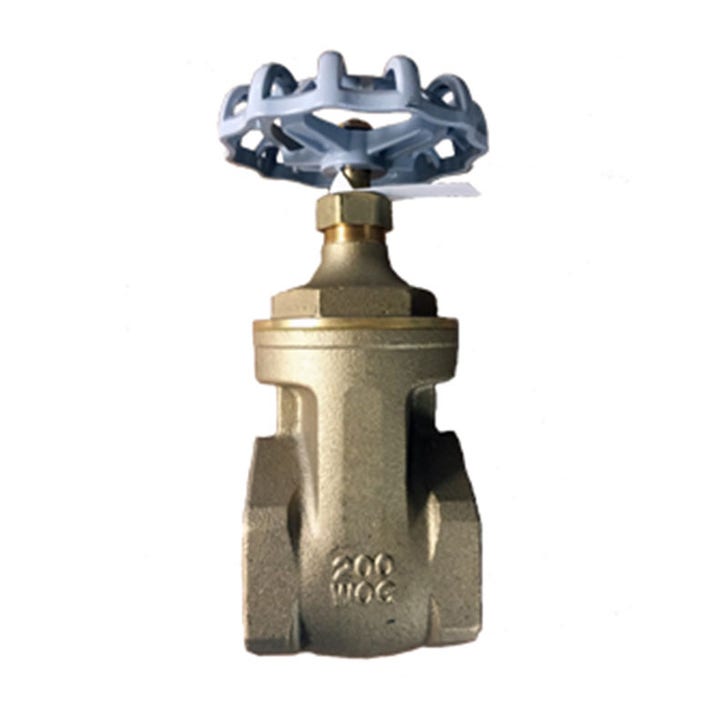

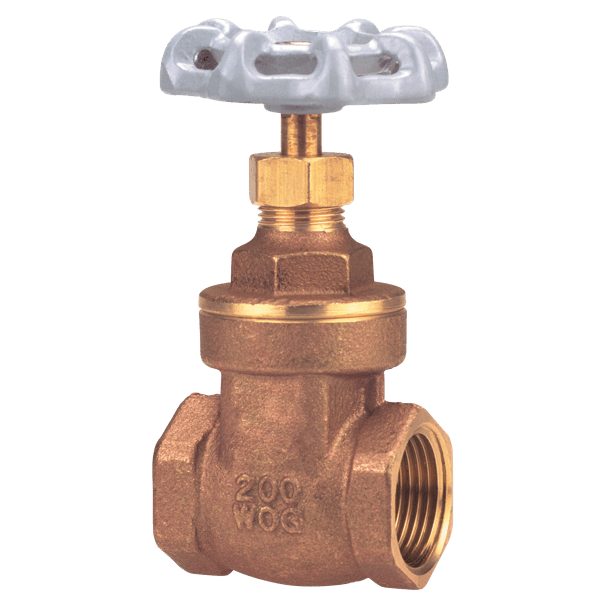

NIBCO VALVES TI8 Brass Gate Valve

Product Description

The NIBCO brass gate valve TI8 provides a reliable shutoff solution. This valve features a screw-in bonnet and a non-rising stem for effective operation. It includes a cast iron handwheel that makes it easy to use. The valve is constructed of durable brass and has NPT connections for compatibility in installations.

• Screw-in bonnet design ensures a pressure-tight seal.
• Non-rising stem and lever handwheel for easy control.
• Threaded ends for quick and simple installation.

Product Highlights

This valve is ideal for a range of applications, including irrigation and cold water service.

Product Information

Standard Information

• MPN: TI8
• Brand: NIBCO VALVES

Technical Specifications

• Material: Brass
• Valve Type: Gate Valve
• Valve Size: Three-fourth inch
• End Connections: Female NPT Thread
• Valve Port Opening: Full Port
• Valve Operator: Handwheel
• Pressure Rating: Two hundred psi non-shock cold working pressure
• Recommended Applications: Cold working pressure, commercial, irrigation, residential
