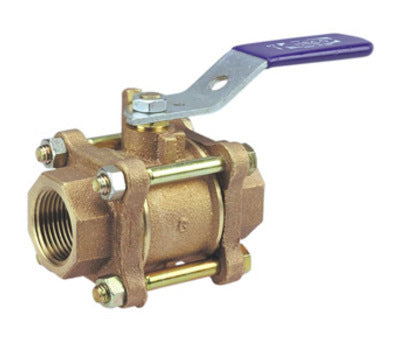

Nibco Valves T595-Y-66 1-1/2 in. Female Bronze Full Port Ball Valve With Stainless Steel Ball

Product Description

The Nibco bronze ball valve, model T595-Y-66, is designed to provide a secure shutoff at pressures up to 600 PSI. This three-piece valve is suitable for both hot and cold water applications, as well as various gas services, compressed air, vacuum service, and chilled water systems. It can be used for isolation and throttling purposes, allowing for half open to full open operations.

This valve is engineered for easy maintenance, as it is repairable in line. The operation is smooth, requiring only a quarter-turn (90 degrees) from open to close. The valve features a PTFE seat ring along with a stainless steel ball and stem, ensuring high chemical resistance and reliability for high-pressure applications. The threaded ends allow for straightforward installation.

• Bubble tight shutoff at 600 PSI
• Repairable in line for ease of maintenance
• Suitable for hot/cold water and gas applications

Product Highlights

The Nibco bronze ball valve is designed for durability and ease of use in various applications.

Product Information

Standard Information

• Brand: Nibco Valves
• MPN: T595-Y-66

Technical Specifications

• Type: Ball valve
• Size: 1-1/2 inches
• Port Style: Full port
• Material: Bronze
• Ball Material: Stainless steel
• Maximum Pressure: 600 PSI
• Installation: Threaded ends
• Operation: 1/4 turn
