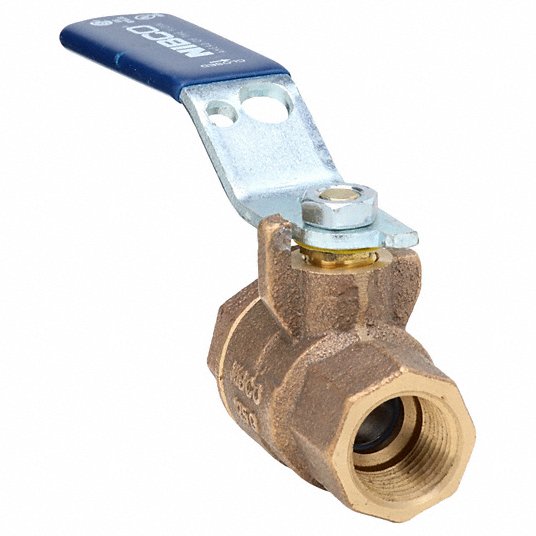

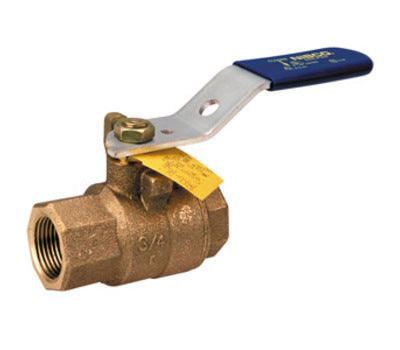

Nibco Valves T-585-70-UL 1 Ul Ball Vlv

Product Description

The Nibco Valves T-585-70-UL 1 Ul Ball Vlv is UL listed for natural and LP gas and flammable fluid applications. This 2-piece valve provides bubble tight shutoff at 250 PSI and ease of operation with a quarter turn (90 degree) open to close. Designed for gasoline, fuel oil, LP gas and other flammable fluids, it features threaded ends for easy installation.

• UL listed for natural and LP gas and flammable fluid applications
• 2-piece valve provides bubble tight shutoff at 250 PSI
• Ease of operation with quarter turn (90 degree) open to close

Product Highlights

The Nibco bronze ball valve is designed for use on gasoline, fuel oil, LP gas and other flammable fluids. The two-piece valve features threaded ends for easy installation.

Product Information

Standard Information

• Brand: NIBCO VALVES
• Manufacturer Part Number: T-585-70-UL
• Country of Origin: USA

Technical Specifications

• Manufacturer Name: NIBCO VALVES
• MPN: T-585-70-UL
• SellUom: Each
• Valve Size: 1/2 in
• ANSI: ANSI B16.33
• ASME: ASME B16.33, ASME CGA 3.16
• ASTM: ASTM B-124 C37700, ASTM B-16 C36000, ASTM B-371 C69430, ASTM B-584 C84400, ASTM B-99 C65100
• CSA Certified: CSA B16.33
• Clean Bagged: No
• Collection: T-585-70-UL
• End Connection 1: NPT
• End Connection 2: NPT
• End Connections: NPT x NPT
• FM Approved: No
• Handle Material: Zinc Plated Steel
• IAPMO Listed: No
• Lead Law Compliance Level: Not Compliant, Approved for Non-Potable Water Applications
• MSS: MSS SP-110
• Material: Bronze, Brass
• Material Type: DZR
• NSF Certified: No
• Pressure - Maximum: 250 psi
• Pressure Class: 250#
• Recommended Valve Application: Gas, Oil, Water
• UL Listed: Yes
• UPC: 039923446275
• Valve Body Style: 2 piece
• Valve Bonnet Type: Threaded
• Valve Disc Material: Chrome Plated Brass
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: Reinforced PTFE
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
• For Media: Flammable Fluids; Gas
• Valve Construction: Two-Piece
• Straight: Straight
• Ball Port Style: Full
• Port: 1/2 in
• Nominal Valve Size: 1/2 in
• Connection Size - Side 1: 1/2 in
• Connection Gender - Side 1: Female
• Connection Type - Side 1: NPT
• Connection Size - Side 2: 1/2 in
• Connection Gender - Side 2: Female
• Connection Type - Side 2: NPT
• Max. Pressure (CWP): 250 psi
• Max. Pressure (Steam): 250 psi
• Max. Pressure (Combustible Gas): Not Rated
• Handle: Lever
• Handle Color: Blue
• Ball Material: Chrome-Plated Brass
• Seat Material: RPTFE
• Seal Material: PTFE
• Stem Material: Silicon Bronze
• Stem Type: Blowout Resistant
• Media Temp. Range: -20 °F to 400 °F
• 3-A Compliance: Not Rated
• Standards: ANSI/ASME B16.33; CGA 3.16; UL842 CUL YSDT7 CSA
• Overall Length: 2.44 in
• Handle Height: 1.88 in
• Body Material: Bronze
