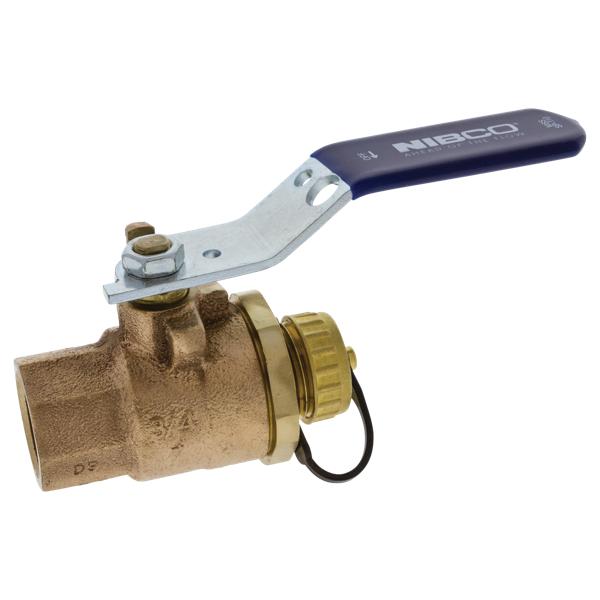

Nibco Valves T-585-70-66-HC Two-Piece Bronze Ball Valve - Stainless Steel Trim, Hose Connection

Product Description

The NIBCO VALVES T-585-70-66-HC bronze ball valve is equipped with reinforced PTFE seat ring and stainless steel stem and ball. The valve features a threaded end connection and hose connection with a hose cap and chain attached. Ideal for commercial and light industrial applications that require garden hose connections for drainage purposes. Conforms to MSS SP-110.

• Reinforced PTFE seat ring
• Stainless steel stem and ball
• Threaded end connection and hose connection with a hose cap and chain attached

Product Highlights

This two-piece valve provides ease of operation with quarter-turn (90 degrees) open to close, and bubble-tight shutoff at 600 PSI.

Product Information

Standard Information

• Brand: NIBCO VALVES
• Manufacturer Part Number: T-585-70-66-HC

Technical Specifications

• Valve pressure rating: 600 psi 41.4 bar non-shock cold working pressure
• Maximum temperature rating: 400°F
• Port: Full port
• Ball and stem: Stainless steel
• Stem: Blowout-proof
• Handle: Standard lever handle
• End connections: Threaded NPT x 3/4" hose end connections with cap and chain
• Resistant: Dezincification resistant
• Conforms to: MSS SP-110
• Type: Ball Valve
• Connection Type: T-HC -- Female NPT Thread (FIPT) x Hose Cap & Chain
• Ball Material: Stainless Steel
• Valve Size: 1/2
• Material: Bronze
• Valve Operator: CS Standard Lever Handle
• Turns/Operation: Quarter-Turn
